3.24.6

Main FPGA Check (SATA only)

To perform an Inter‐FPGA Connection check, select the Main FPGA tab.

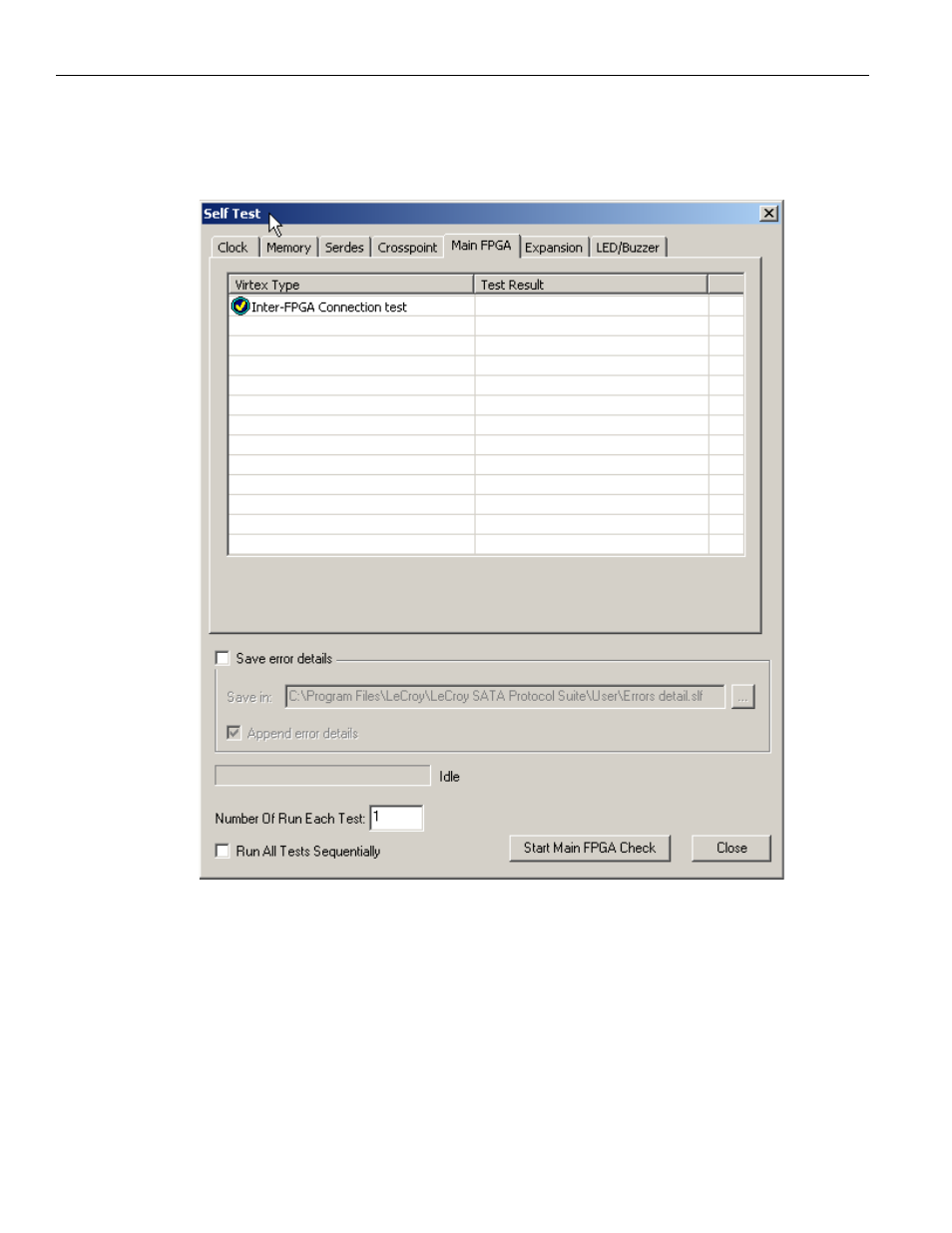

Figure 3.150: Self Test Dialog Main FPGA Tab

Choose the Inter‐FPGA Connection test and click the Start Main FPGA Check button.
After a short time, the Test Result appears to the right of the selected line.
