Sierra M6‐2 SAS/SATA Protocol Analyzer User Manual 111
Projects Teledyne LeCroy
Note: Ports 1 and 2 are a pair. Put related hardware on one pair. For example, put two analyzers on
ports 1 and 2.
Jammer can pair with one or two analyzers on a port. 
Jammer does not work with Trainer.
Trainer can pair with one analyzer on a port. 
Trainer does not work with emulators.
Trainer does not work with Jammer.
MUX Setting (SAS only)
Enable Muxing on port combinations.

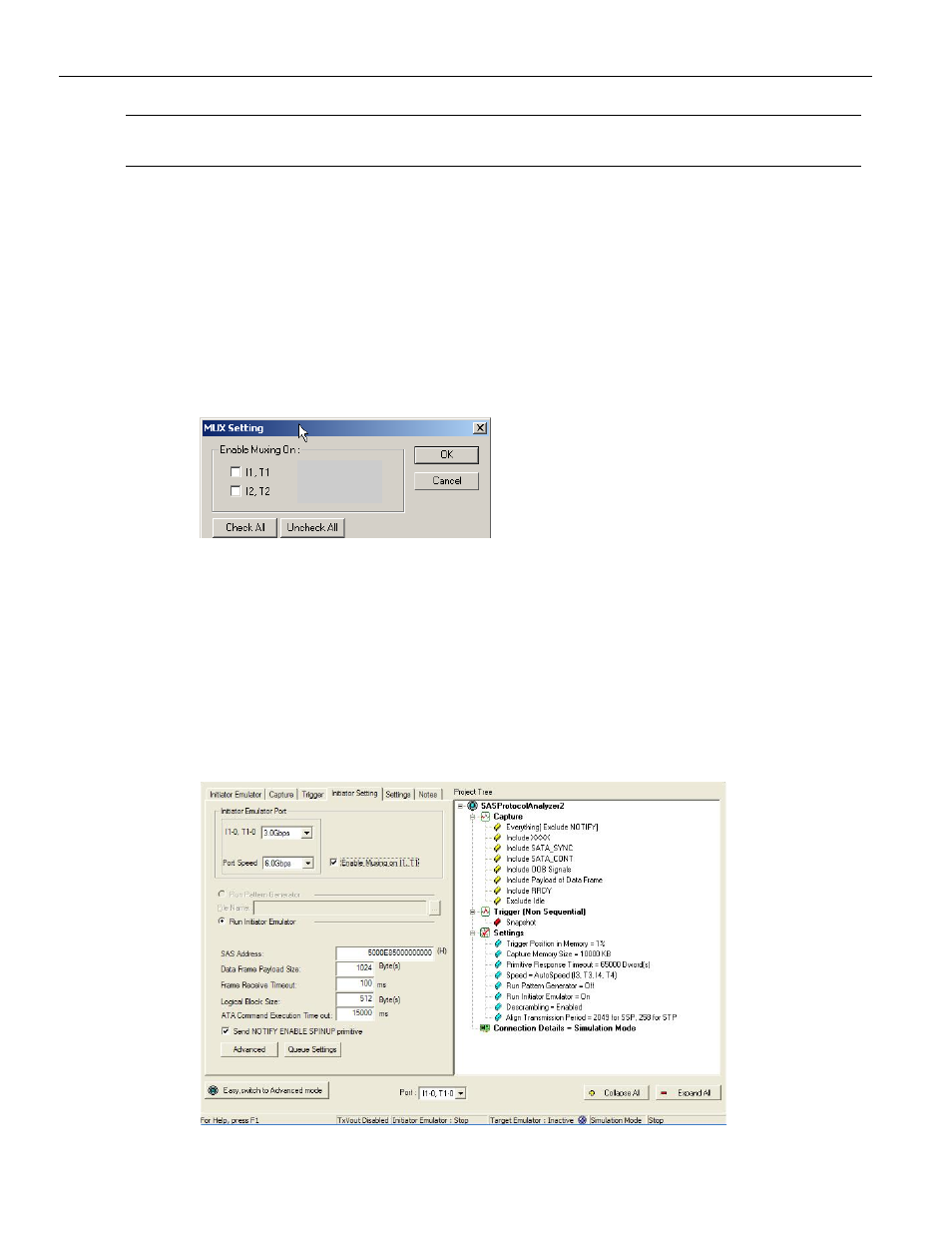

Figure 2.76: MUX Setting Dialog Box
If you enable this option on two ports, the data of both ports transfers on one physical
link, whose speed is twice the speed of each link, and the data of two links multiplexes on
one physical link. For example, two 3 G ports together make one 6 G port. Note the
following (see
Figure 2.77 on page 111 ):
 The muxing check boxes are usable only if two or more emulator channels are
selected.
 The initiator emulator check box is greyed out if only one emulator channel is
selected.
Figure 2.77: Initiator Emulator Check Box and Channel Speeds
