Target and Device Emulation Teledyne LeCroy

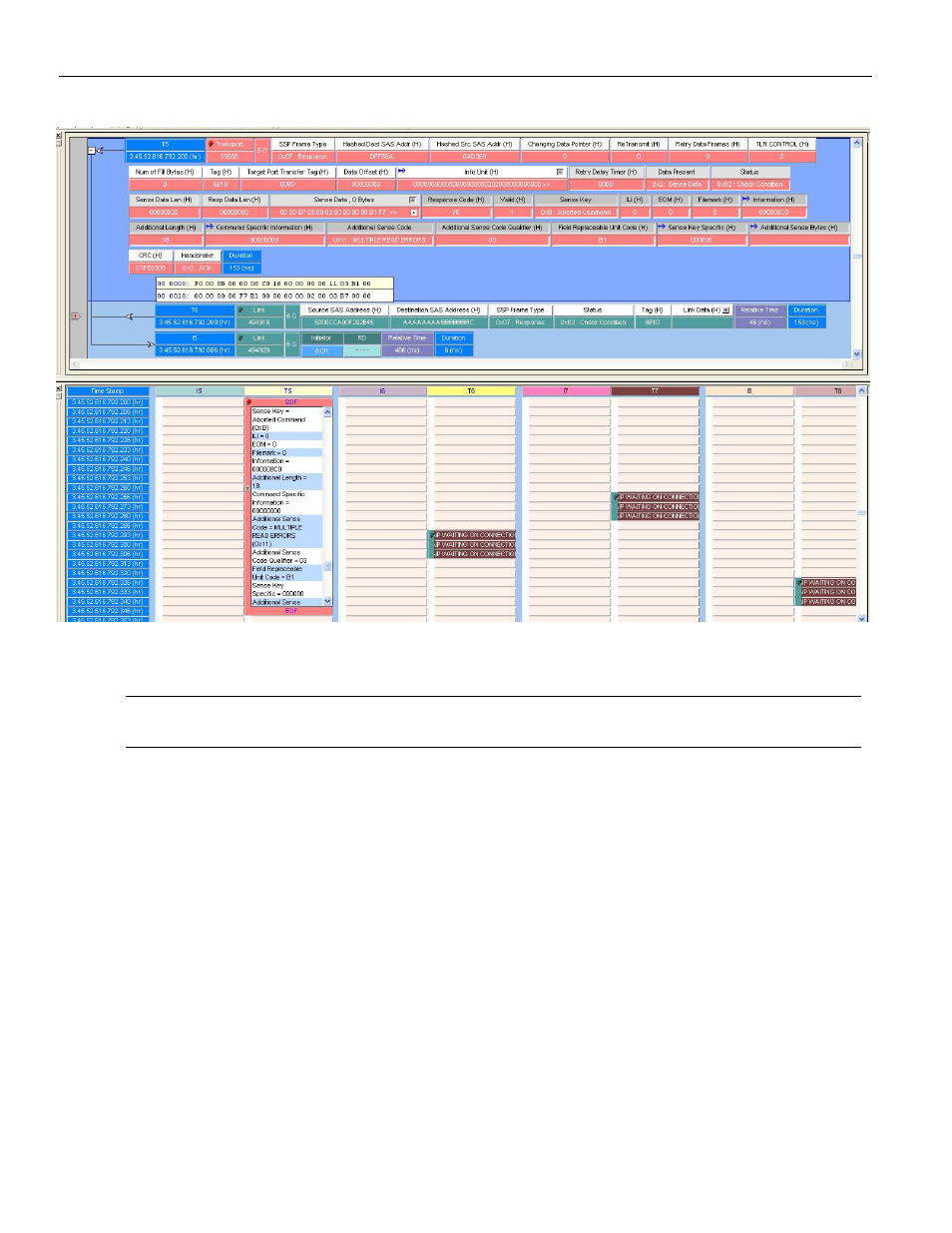

Figure 2.184: Sense Key Codes
4. Set up Outgoing and Incoming frame errors.
Note: Once you check the Generate Error On: check box for a command, a red status indication
appears next to the command, indicating an error condition.
Outgoing Frame Settings
Before selecting Outgoing Frame Settings, select the Types Of Frames and the
Frame Number on which to inject an error. Then check Outgoing Frame in the Generate
Error On area and then the enabled Settings button to display the Outgoing Frame Setting
dialog. See
Figure 2.185 on page 190 .
