Sierra M6‐2 SAS/SATA Protocol Analyzer User Manual 19
Unpacking the Analyzer Teledyne LeCroy
1.4 Unpacking the Analyzer
Inspect the received shipping container for any damage. Unpack the container and
account for each of the system components listed on the accompanying packing list.
Visually inspect each component for absence of damage. In the event of damage, notify
the shipper and Teledyne LeCroy Corporation. Retain all shipping materials for shipper’s
inspection.
1.5 Analyzer Features
The Analyzer has the following features:
 Power Switch (0/1)
 Trigger, Error, Link, Speed, and Frame/OOB LEDs (see next page)
 Port 1 Initiator/Host SATA connector
 Port 1 Target/Device SATA connector
 Port 2 Initiator/Host SATA connector
 Port 2 Target/Device SATA connector
 Status and Configuration LCD Display
 External Trigger Input and Output
 USB port for host connectivity
 Gigabit Ethernet port for network connectivity
 Power In (on back)
 Expansion In/Out data ports and Clock In/Out connectors (on back)

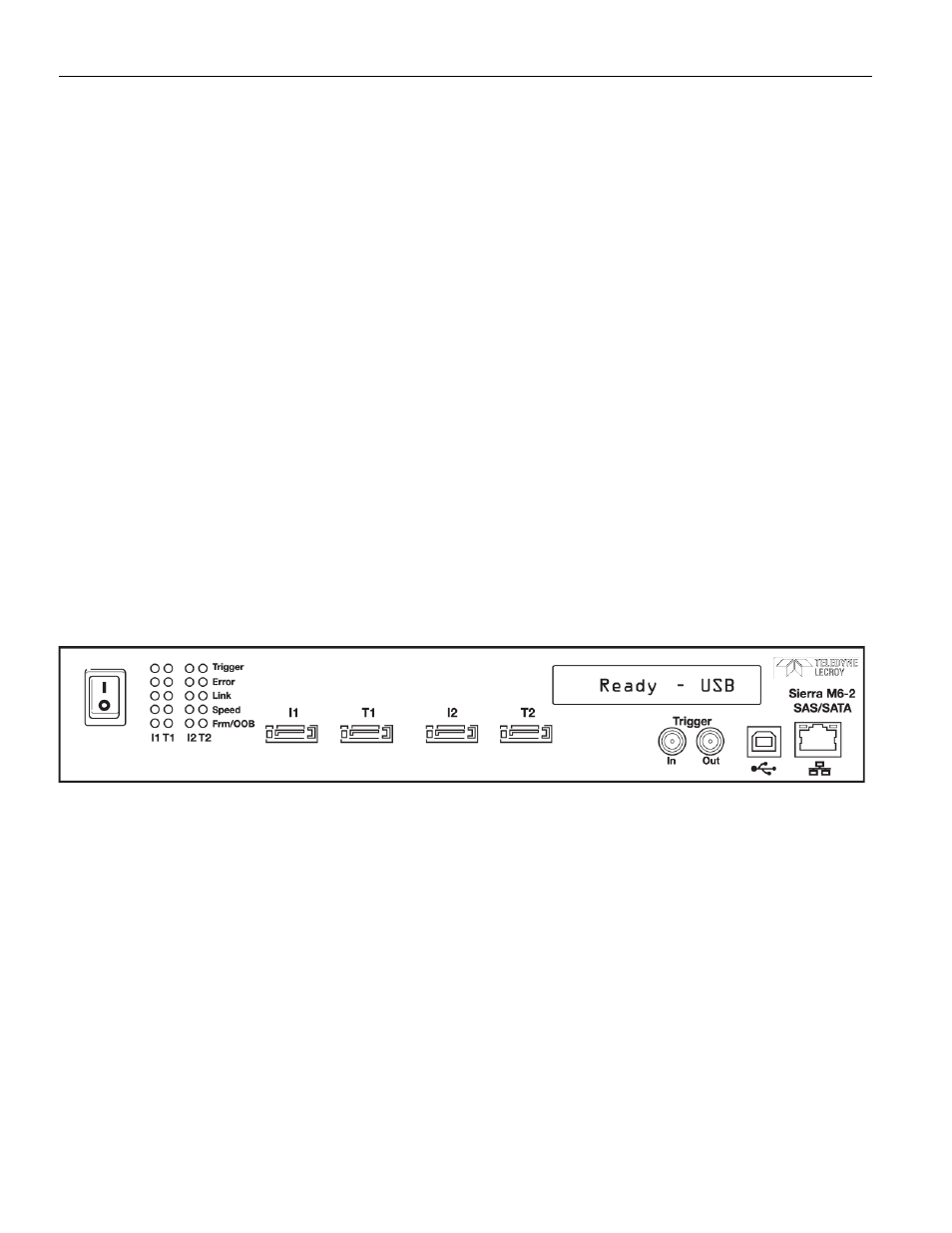

Figure 1.2: Front Panel
1.6 LEDs
Each link is supported by LEDs with the following functionality:
GreenThis LED is illuminated during the OOB (Out of Bound) sequence before the link is
established and after link is established it indicates traffic on the bus.
Orange This LED is illuminated as follows:
Speed Initiator Target
1.5G Off Off
3.0G On Off
6.0G On On
Yellow This LED is illuminated when a link is established.
