Sierra M6‐2 SAS/SATA Protocol Analyzer User Manual 39
Teledyne LeCroy SAS/SATA Protocol Suite Menu Options and Toolbars Teledyne LeCroy
1.21.1 File
The File menu options allows you to perform common tasks such as open, close, save,
export, print, send files and exit the application (see
Figure 1.21 on page 39 ).

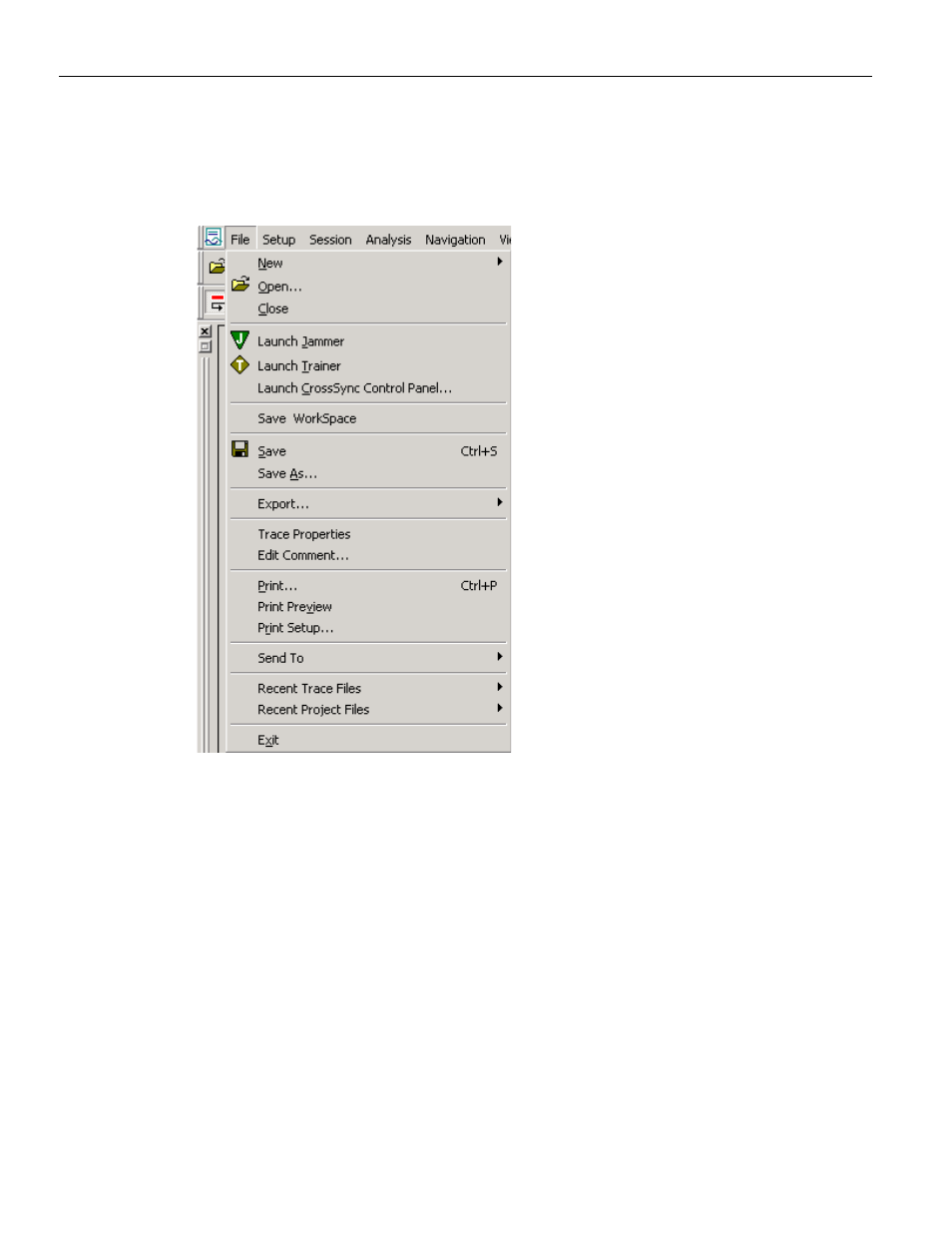

Figure 1.21: File Menu Option
1.21.2 Setup
For special work, you can use the Setup menu (see Figure 1.22 on page 40 ) to perform the
following actions:
 TxRxVout & Pre‐emphasis (see “TxRx Vout & Preemphasis” on page 303 )
 User Defined Decoding (see “User‐Defined Decoding” on page 318 )
 External Trig Setting (see “External Trig Setting” on page 315 )
 Update Device (see “Update Device” on page 316 )
 All Connected Devices (see “Select Device” on page 25 )
 Find DUT (see “Find DUT” on page 329 )
 Power Source Control (see “Power Source Control” on page 331 )
 Manage Setup Licences (see “Floating License” on page 314 )
 Preferences (see “Preferences” on page 305 )
 Self Test (see “Self Test” on page 321 )
 Data Block (see “Data Blocks” on page 136 )
