Miscellaneous Features Tab

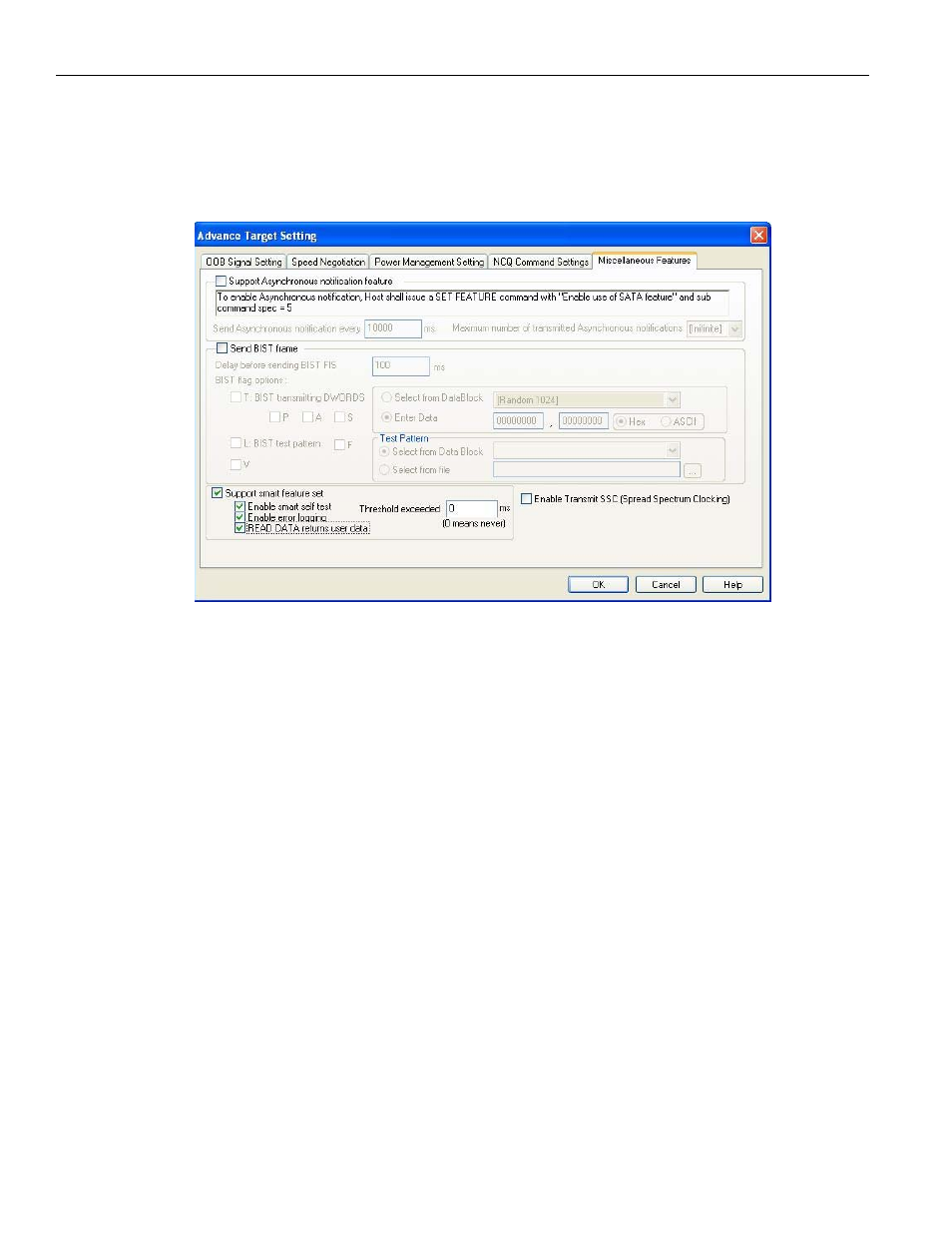

The following screen capture shows the Miscellaneous Features tab in the Advanced
Target Settings dialog.
Figure 2.206: Miscellaneous Features
1. To enable Asynchronous notification, check the Support Asynchronous notification
feature, and then specify the millisecond Asynchronous notification interval and
the Maximum number of transmitted Asynchronous notifications.
2. To send a BIST frame, check Send BIST frame and enter a value for the millisecond
Delay before sending BIST FIS. Choose BIST flag options and enter or select DATA or
test pattern.
3. To support smart features, check Support smart feature set. 
For self test, check Enable smart self test. 
For error logging, check Enable error logging.
To return user data for READ DATA, check READ DATA returns user data.
To set threshold, enter an integer in Threshold exceeded. To never exceed
threshold, enter 0.
4. To enable Transmit Spread Spectrum Clocking, check Enable Transmit SSC.
2.12.15 Project Note
Click the Notes tab and enter a Project Name and a brief description of the Device
Emulation project (see
“Add a Project Note” on page 112 ).
