40 Sierra M6‐2 SAS/SATA Protocol Analyzer User Manual
 Set Port Alias (see “Set Port Alias” on page 301 )
 Set SAS Address Alias (see “SAS Address Alias (SAS only)” on page 302 )

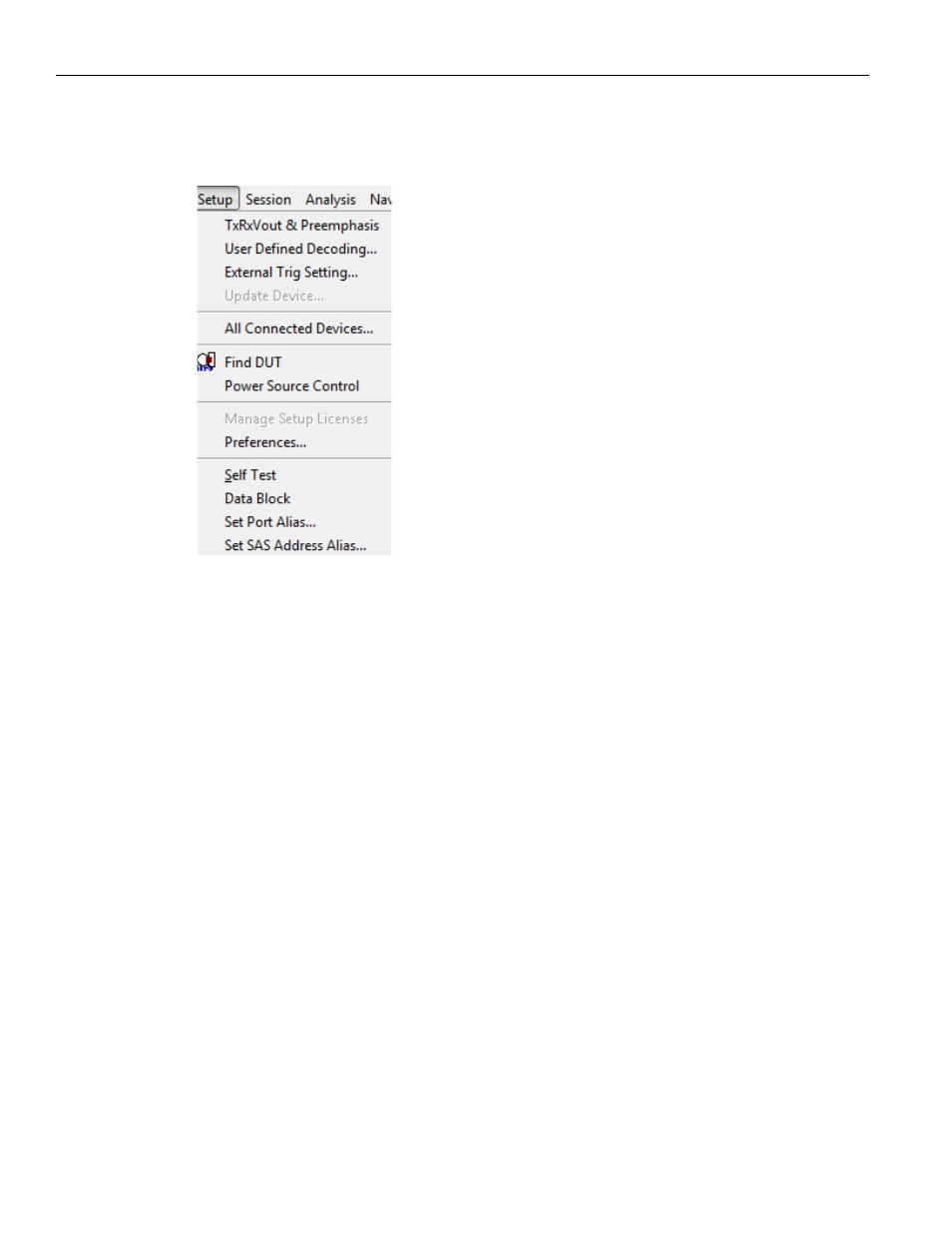

Figure 1.22: Setup Menu Option
1.21.3 Session
The Session menu has the following options:
 Start Capture/Record ‐ Start capture or record a trace
 Pause Capture/Record ‐ Aborts the capture without saving
 Stop Capture/Record ‐ Stops the hardware
 Start Target Emulator ‐ Starts the target emulator (SAS)
 Stop Target Emulator ‐ Stops the target emulator (SAS)
 Start Device Emulator ‐ Starts the device emulator (SATA)
 Stop Device Emulator ‐ Stops the device emulator (SATA)
1.21.4 Analysis
The Analysis menu (see Figure 1.23 on page 41 ) allows you to view captured data (see the
following screen capture).
Menu items and toolbar options are enabled or disabled and displayed or hidden based
on the type of window open. The following types of windows can be displayed:
 No active window
 Project file open
 Trace file open
