Sierra M6‐2 SAS/SATA Protocol Analyzer User Manual 129
Emulation Teledyne LeCroy
SATA: Click the Insert Frame button and choose the frame type to insert.

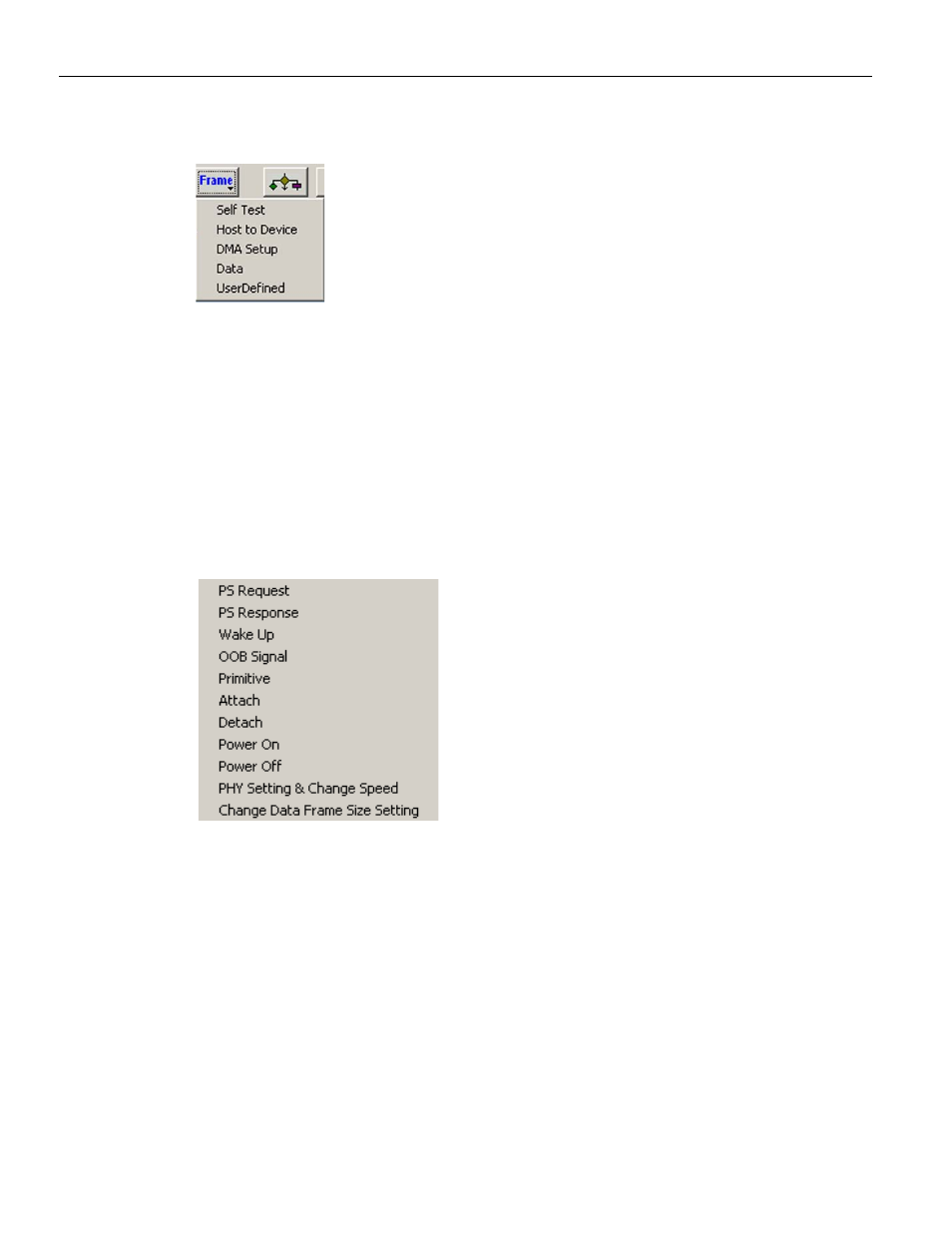

Figure 2.101: SATA: Frame Dropdown List
The following menu options are available:
 Self Test
 Host to Device
 DMA Setup
 Data
 User Defined
Adding an Event
Click the Insert Event button and choose the event to insert.
Figure 2.102: SAS: Event Dropdown List
The following menu options are available:
 PS Request
 PS Response
 Wake Up
 OOB Signal
 Primitive
 Attach
 Detach
 Power On (see “Power On” on page 130 )
 Power Off
 PHY Setting & Change Speed
 Change Data Frame Size Setting
