Sierra M6‐2 SAS/SATA Protocol Analyzer User Manual 315
External Trig Setting Teledyne LeCroy

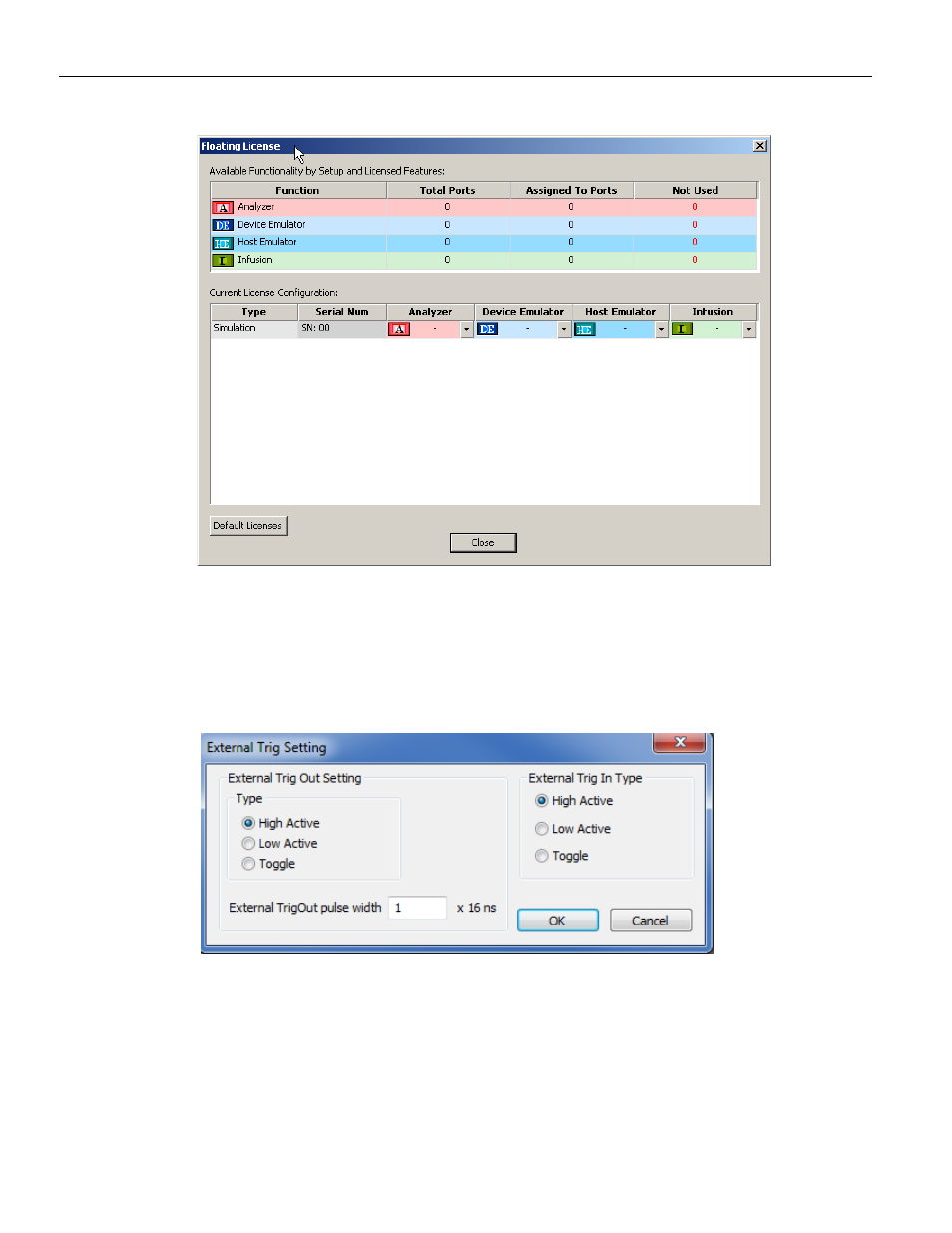

Figure 3.135: Floating License Dialog
3.20 External Trig Setting
The External Trig Setting dialog displays the External Trig Out Setting and External Trig In
Setting as High Active, Low Active, or Toggle.
.
Figure 3.136: External Trigger Setting Dialog
To display the External Trig Setting dialog, select Setup > External Trig Setting.
External Trig Out Setting
The Analyzer can send a Low or High external signal anytime a trigger occurs. Select the
External Trig Out Setting: High Active, Low Active, or Toggle from High to Low or Low to
High once (3.3 V output).
