Sierra M6‐2 SAS/SATA Protocol Analyzer User Manual 73
Projects Teledyne LeCroy
Available FIS Types
 Register Host to Device
 Register Device to Host
 Set Device Bit
 DMA Activate
 DMA Setup
 BIST
 PIO Setup
 Data
 Any Type
2.6.15 STP Frame Pattern
Double‐click STP Pattern to open the STP Pattern selection dialog.

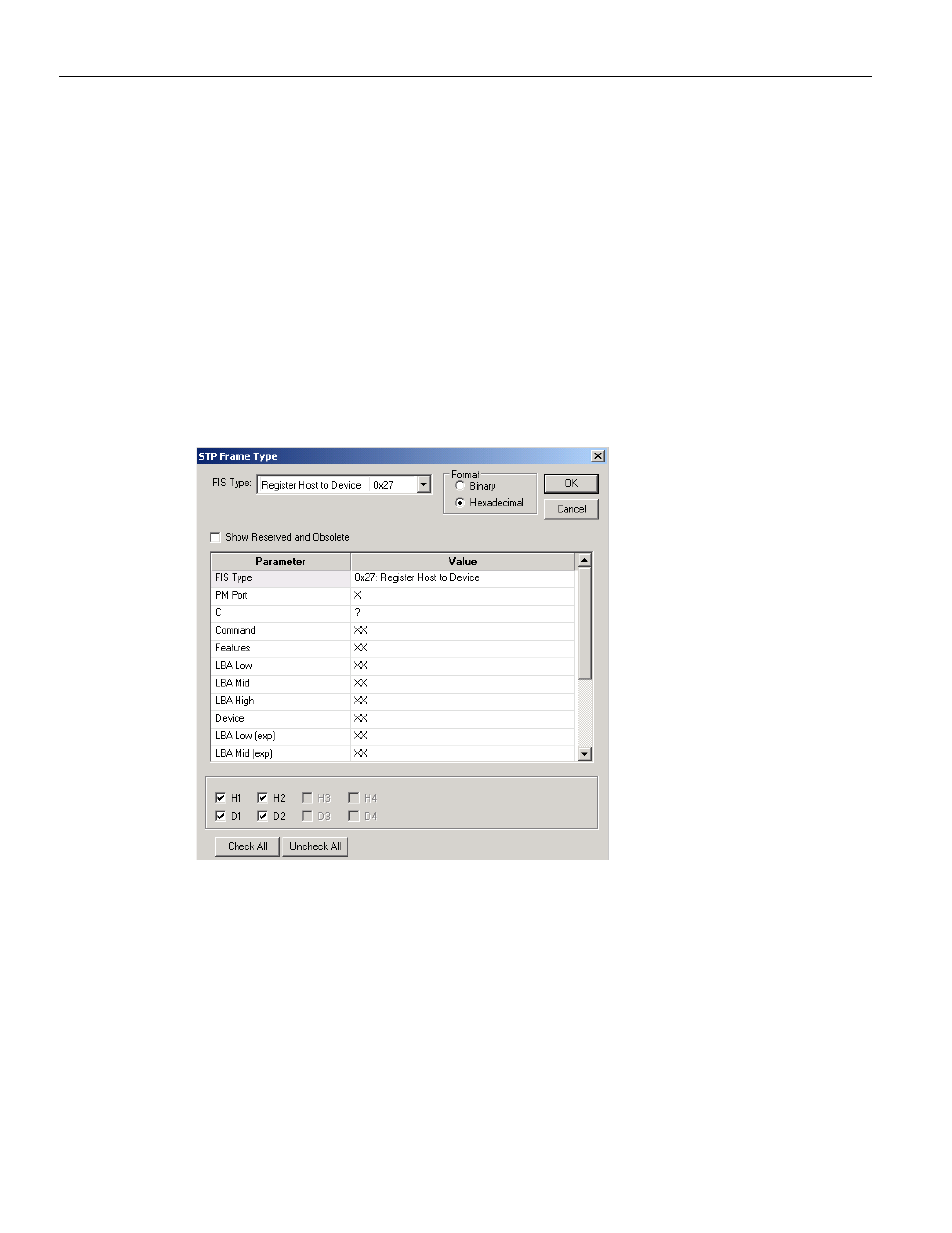

Figure 2.27: SATA: STP Pattern Dialog
The STP Pattern dialog opens with the default FIS Type as Register Host to device. To
choose another available FIS Type, click the down arrow next to the FIS Type list box.
Choose FIS Type and complete the corresponding dialog.
