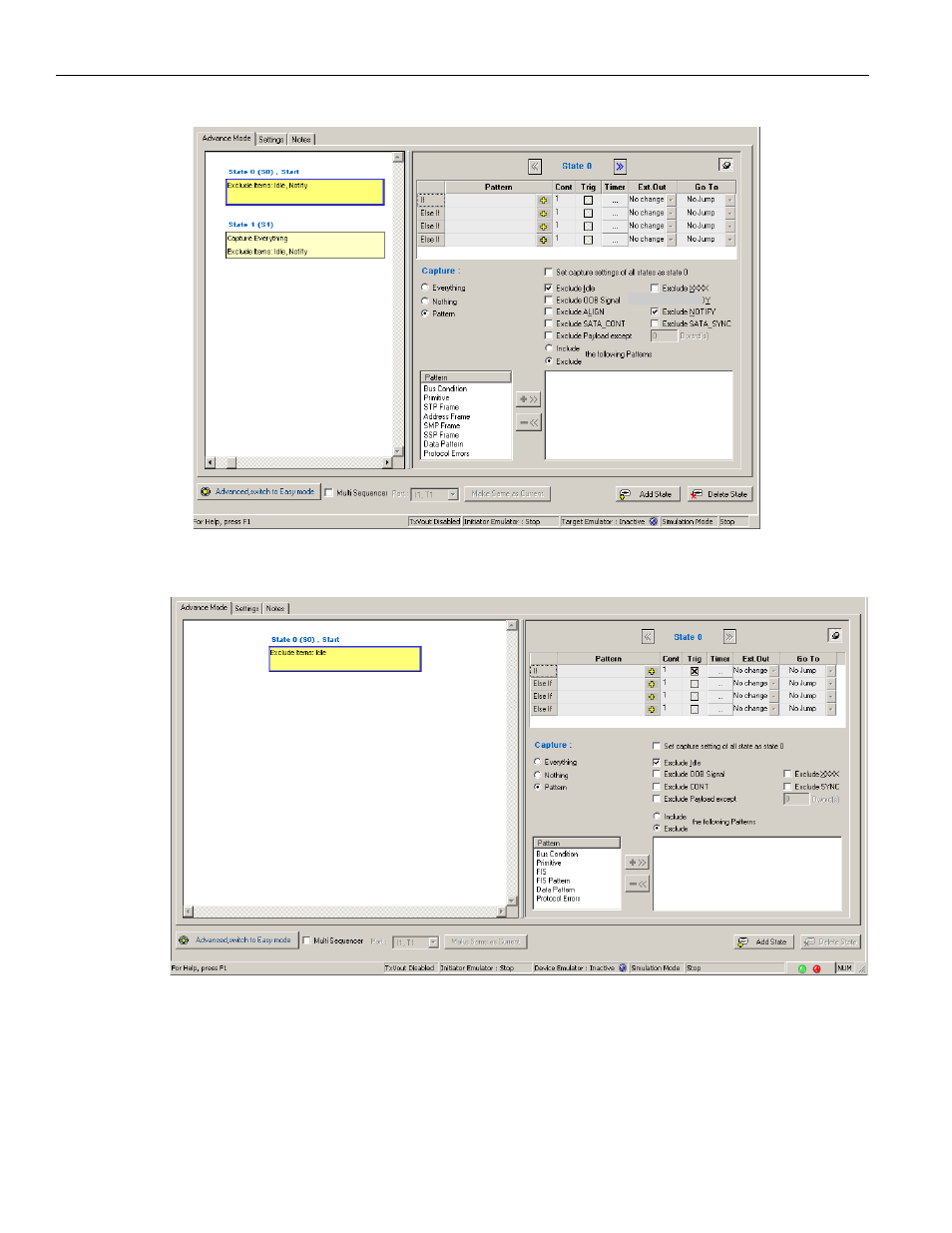

Figure 2.80: SAS: State Programming Dialog

Figure 2.81: SATA: State Programming Dialog

SAS vs. SATA: SATA Dialog removes Exclude ALIGN, Exclude RRDY, and Exclude NOTIFY.
SATA Dialog replaces Exclude SATA_CONT with Exclude CONT and Exclude SATA_SYNC
with Exclude SYNC.
