70 Sierra M6‐2 SAS/SATA Protocol Analyzer User Manual
2.6.10 STP Frame
Double‐click STP Frame to open the STP Frame Type dialog ( Figure 2.22 on page 70 ).
.

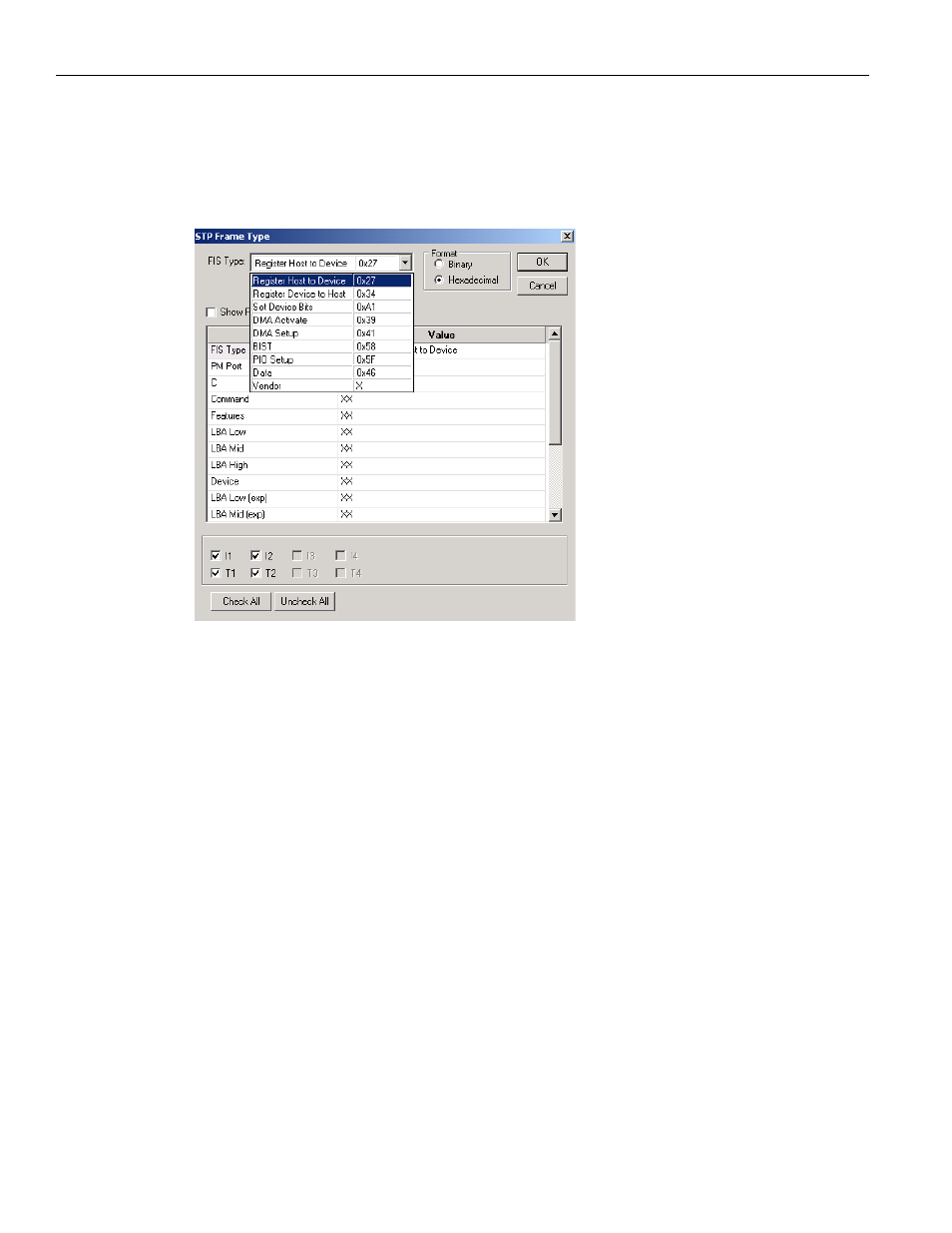

Figure 2.22: FIS Patterns Dialog
Click the down arrow next to the FIS Type drop‐down list box, choose a FIS type to
capture or exclude, and click OK. Repeat for additional types.
Available FIS Types
 Register Host to Device
 Register Device to Host
 Set Device Bits
 DMA Activate
 DMA Setup
 BIST
 PIO Setup
 Data
 Vendor
2.6.11 Address Frame (SAS only)
Double‐click Address Frame to open the Address Frame Type Pattern dialog ( Figure 2.23
on page 71 ).
