Sierra M6‐2 SAS/SATA Protocol Analyzer User Manual 325
Setup Menu Teledyne LeCroy
3.24.5 Crosspoint Check
To perform a Crosspoint‐Crosspoint bus test or Crosspoint external loop back, select the
Crosspoint tab.

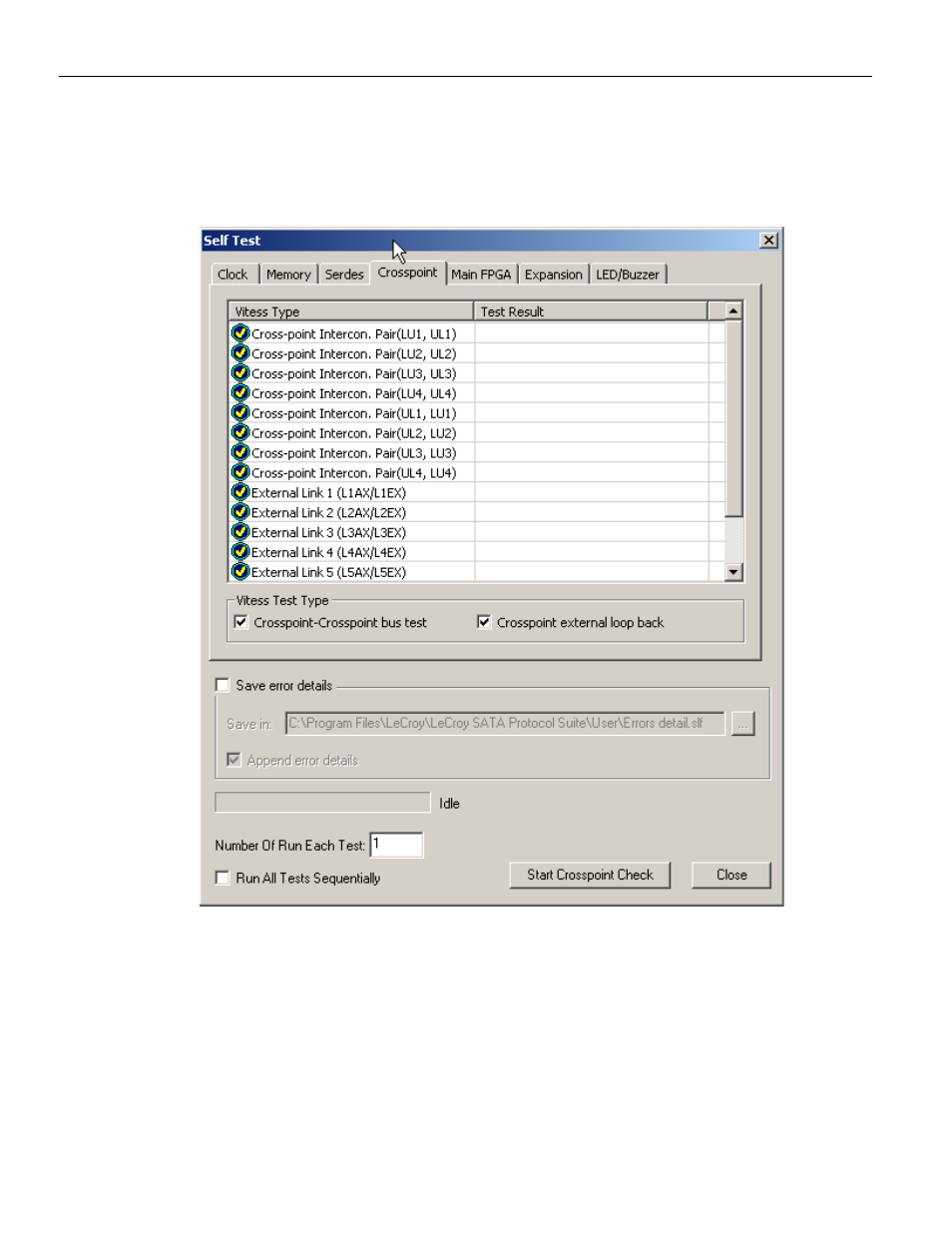

Figure 3.149: SATA: Self Test Dialog Crosspoint Tab
Choose the Crosspoint Interconnection Pair or External loop back to test and click the
Start Crosspoint Check button. After a short time, the Test Result appears to the right of
the selected line.
