Teledyne LeCroy Advanced Mode (User‐Defined)
120 Sierra M6‐2 SAS/SATA Protocol Analyzer User Manual

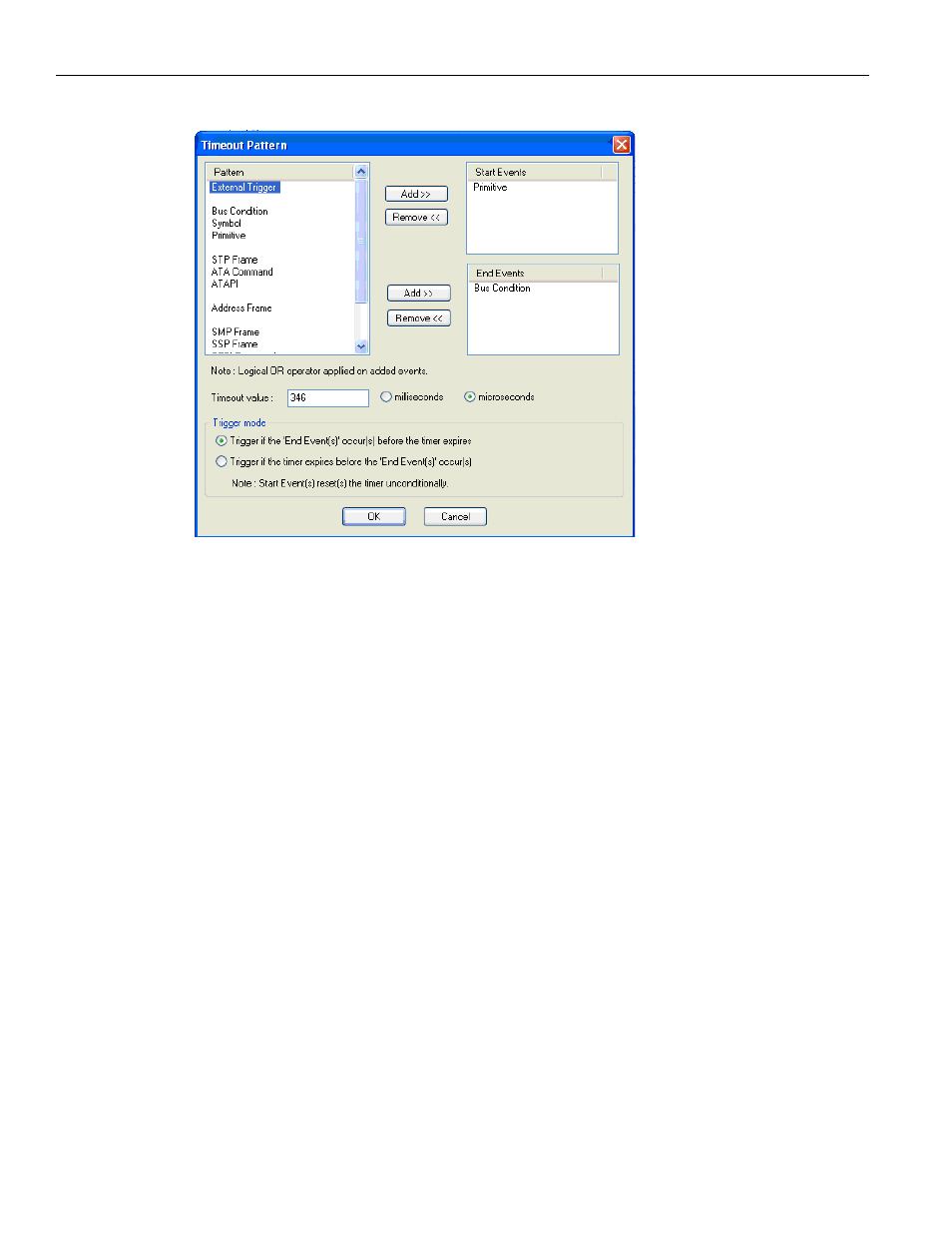

Figure 2.90: Timeout Settings
Timeout begins when the port detects the Start Event. Timer begins when the port
detects the Hard RESET primitive. In the Trigger Mode window, set the Trigger to trigger
when the port detects the End Event, before the Timeout occurs. In our example, this is
the Bus Condition. Capture begins when the ports detects the Bus Condition before the
Timeout occurs. If the port does not detect the Bus Condition until the Timeout occurs,
the State Machine in
Figure 2.89 on page 119 jumps to State 0.
Useful Key Sequences
The following key sequences are active to assist you in navigating a defined state
machine:
Ctrl+a Add State
Insert Insert State
Del Delete State
Ctrl+c/Ctrl+Ins Copy
Ctrl+v/Shift+Ins Paste
Up/Down arrow keys Moves selection between states
Page Up/Page Down Page Up and Page Down states
Home Go to first page
End Go to end page
