Sierra M6‐2 SAS/SATA Protocol Analyzer User Manual

FIS Pattern (SATA only)

Double‐click FIS Pattern to open the FIS Pattern selection dialog.

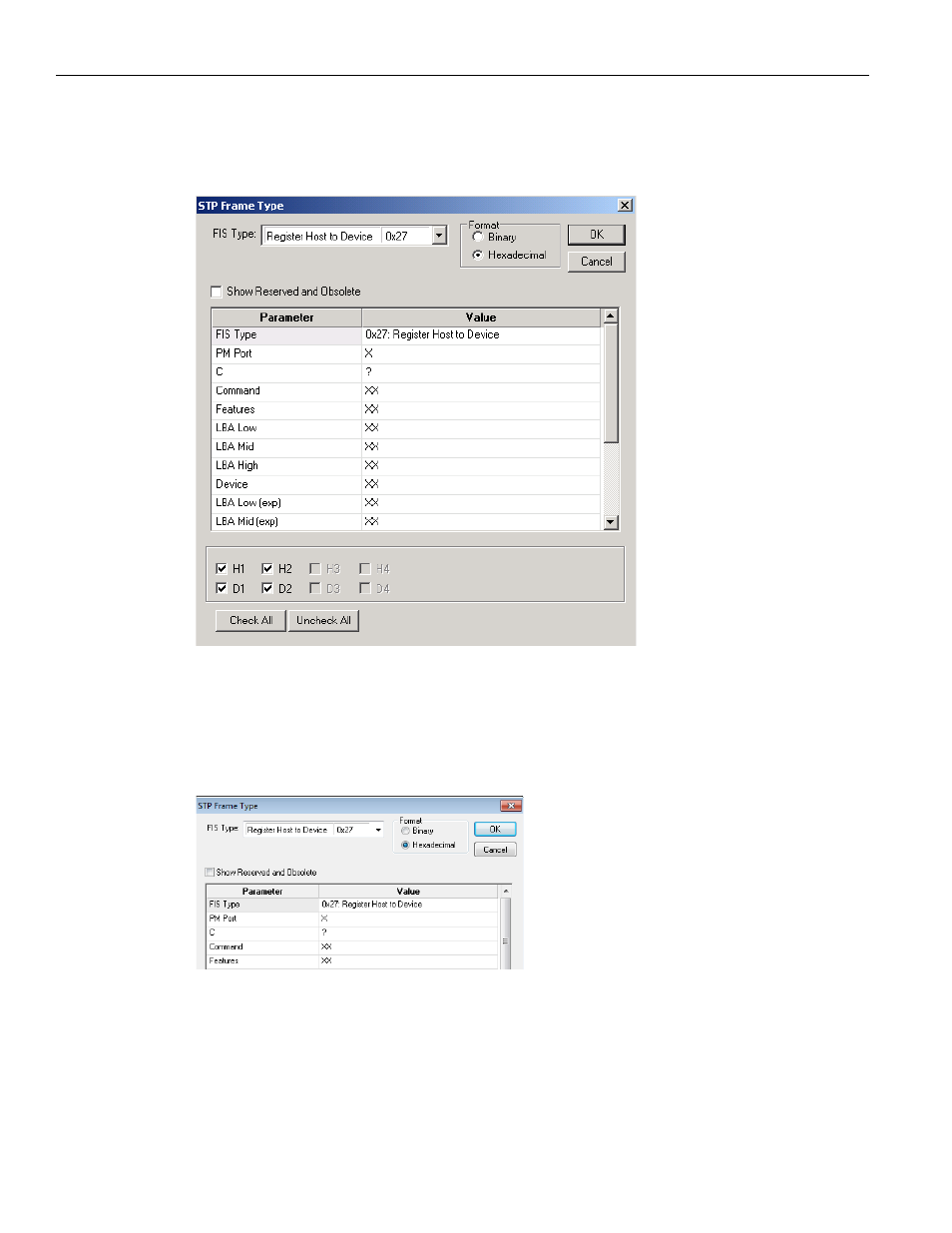

Figure 2.61: SATA: FIS Pattern Dialog

SAS vs. SATA: Not available in SAS.

The FIS Pattern dialog opens with the default FIS Type Register Host to device. To choose
another available FIS Type, click the down arrow next to the FIS Type list box.

Figure 2.62: SATA: FIS Pattern Dialog Choices

SAS vs. SATA: Not available in SAS.

Choose a FIS Type and complete the corresponding dialog.
