Teledyne LeCroy Emulation
138 Sierra M6‐2 SAS/SATA Protocol Analyzer User Manual

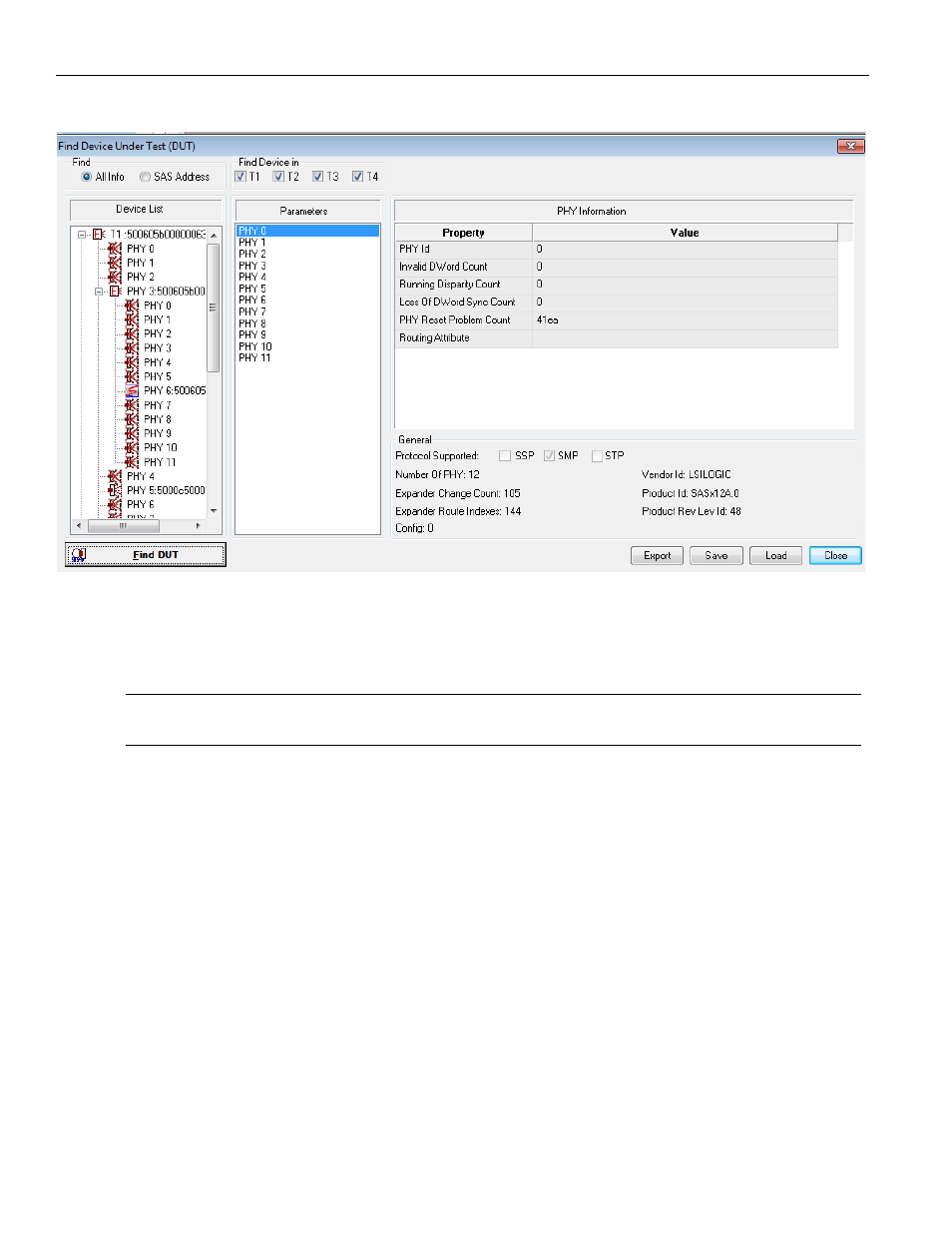

Figure 2.124: SAS: Active SAS Addresses
3. To assign commands to an active address, right‐click an address and choose:
Insert To Cursor assigns all commands up to the cursor to the chosen address.
Insert: To All assigns all commands to the chosen address.
Note: Selecting a SAS device and clicking Export allows you to export in .std format. Selecting a SATA or
Expander and clicking Export allows you to export in .txt format.
2.9.3 Record and Play
This feature allows the selection of a range of commands in a trace and exports them to a
previously saved *.sac file for execution by the SAS Initiator Emulator or *.stc file for
execution by the SATA Host Emulator. You can export commands from all available
samples, between X and Y cursors, or between designated commands.
To perform this action:
1. Run a capture project or open a previously run and saved a captured trace file.
2. Set X and Y cursors to export between cursors (see
Figure 2.125 on page 139 ).
