Teledyne LeCroy Expandability
32 Sierra M6‐2 SAS/SATA Protocol Analyzer User Manual
 SATA 15‐pin power segment connector: This plugs in to the power segment of
the standard SATA connector, allowing to control and monitor its power and
DevSlp.
 DevSlp cable: This cable is used to monitor DevSlp levels when the Device is con‐
nected directly to the Host. It is up to the user to supply a copy of the DevSlp sig‐
nal coming from the Host to connect to the DevSlp wire of this cable, as well as
to connect the adequate ground wire of this cable.
1.9.5 Removing Expansion Cards

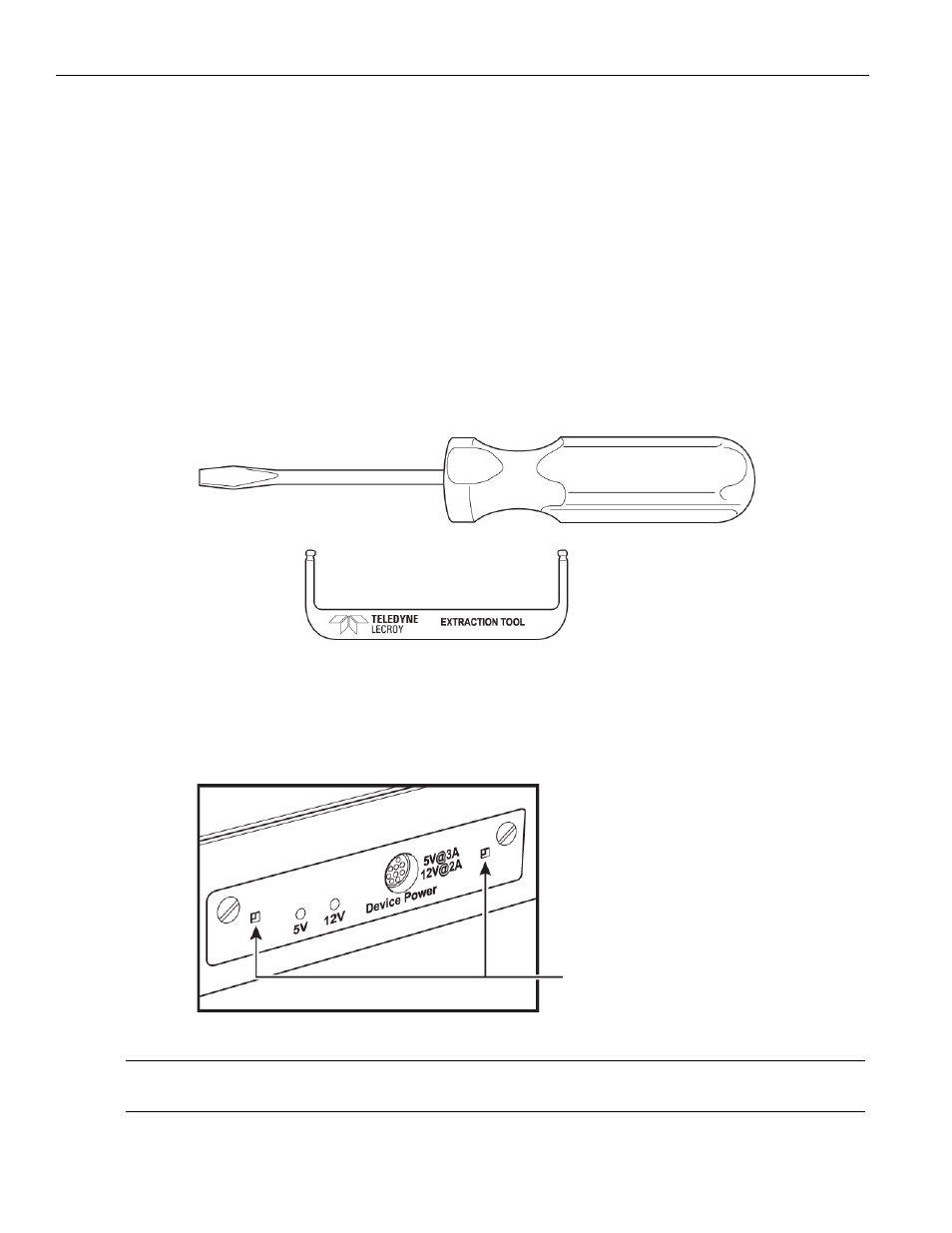

You can remove both expansion cards using two tools:
 Standard (flat blade) 3/16” screwdriver
 Teledyne LeCroy Extraction Tool (part number 230‐0160‐00)
To remove an expansion card, follow these steps:
1. Unplug the system from AC power and turn the system so the expansion port is
facing you. Note the two retaining screws and the holes for the extraction tool that
are located on the panel of the expansion card.
2. Insert the extraction‐tool prongs into the holes in the expansion card panel.
Note: If the prongs do not slip easily into the holes, use a small nail file or similar device to remove
paint from the prongs.
Holes in the
Expansion Card
