Sierra M6‐2 SAS/SATA Protocol Analyzer User Manual 255
SAS Verification (SAS) Teledyne LeCroy
3.5 SAS Verification (SAS)
SAS Verification consists of a set of selectable tests to verify compliance with the
SAS specification.
Note: Speed Negotiation and all other SAS tests are documented in the SAS Verification Test
Descriptions.pdf. file in the installed Documents directory.
Note: Connecting to an HBA, while running in Emulation/Trainer mode, will impact test results.
To run a SAS Verification Test:
1. Select Analysis on the main toolbar and choose SAS Verification to open the SAS
Verification dialog (see Figure 3.73 on page 256 ).

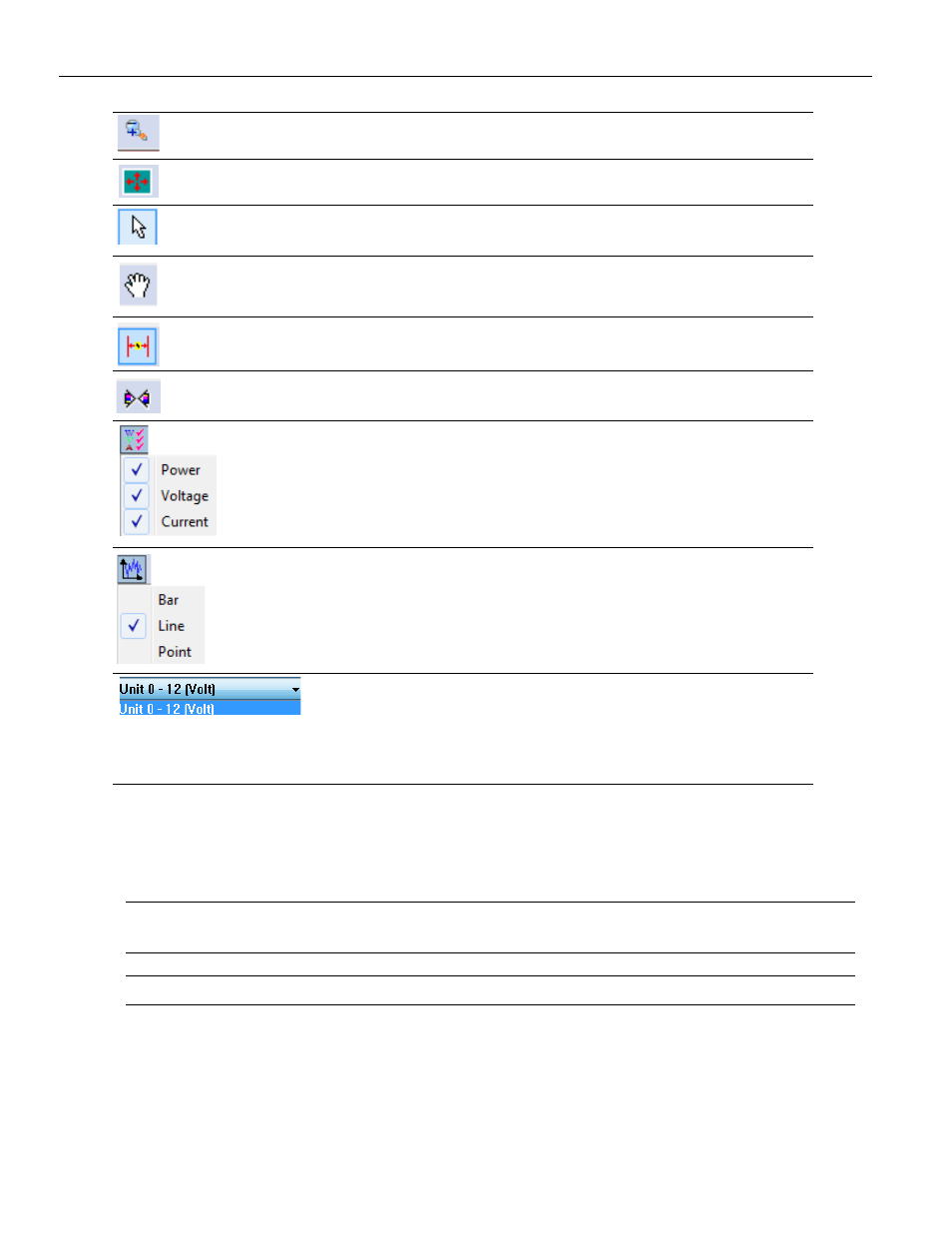

The Zoom By V Drag button on the toolbar magnifies the area selected by
vertically dragging and selecting in the view.
The Full Screen button on the toolbar Toggles between normal and full
screen view.
The Pointer Mode button on the toolbar changes the cursor to a pointer.
The Hand Panning button on the toolbar changes the cursor to a hand for
panning.
The Insert Time Marker button on the toolbar enables inserting a time
marker at selected spot in the view (see
Figure 3.72 on page 254 ).
The Sync by Time button on the toolbar toggles between synchronizing and
un‐synchronizing all the views by time.
The Show/Hide Power Tracker types: W, V, A button on the toolbar allows
the user to select the parameters to view from the drop‐down list.
The Change Power Tracker graph type: W, V, A button on the toolbar allows
the user to select one of the three graph types to view from the drop‐down
list.
Displays the voltage saved during trace capture. This is selected in
the Power Management Setting dialog (see “Power Management
Setting (SATA only)” on page 106 ).
