Chapter 3 Installation and W
iring
Part 1 Installation
24
Part 1 Installation
4. Noise Control Measures and Grounding
The ASEL controller has no dedicated terminal to connect the FG to ground. Accordingly, provide
grounding using the controller mounting screw.
[1] Provide dedicated Class D grounding. The grounding wire should have a size of 2.0 to
5.5 mm 2 or larger.
[2] Notes on wiring method
Use twisted wires for the 24-VDC external power supply.
Wire the controller cables separately from lines creating a strong electric field such as power circuit
lines (by not bundling them together or placing in the same cable duct).
If you wish to extend the motor cable or encoder cable beyond the length of each supplied cable,
please contact IAI’s Technical Service Section or Sales Engineering Section.

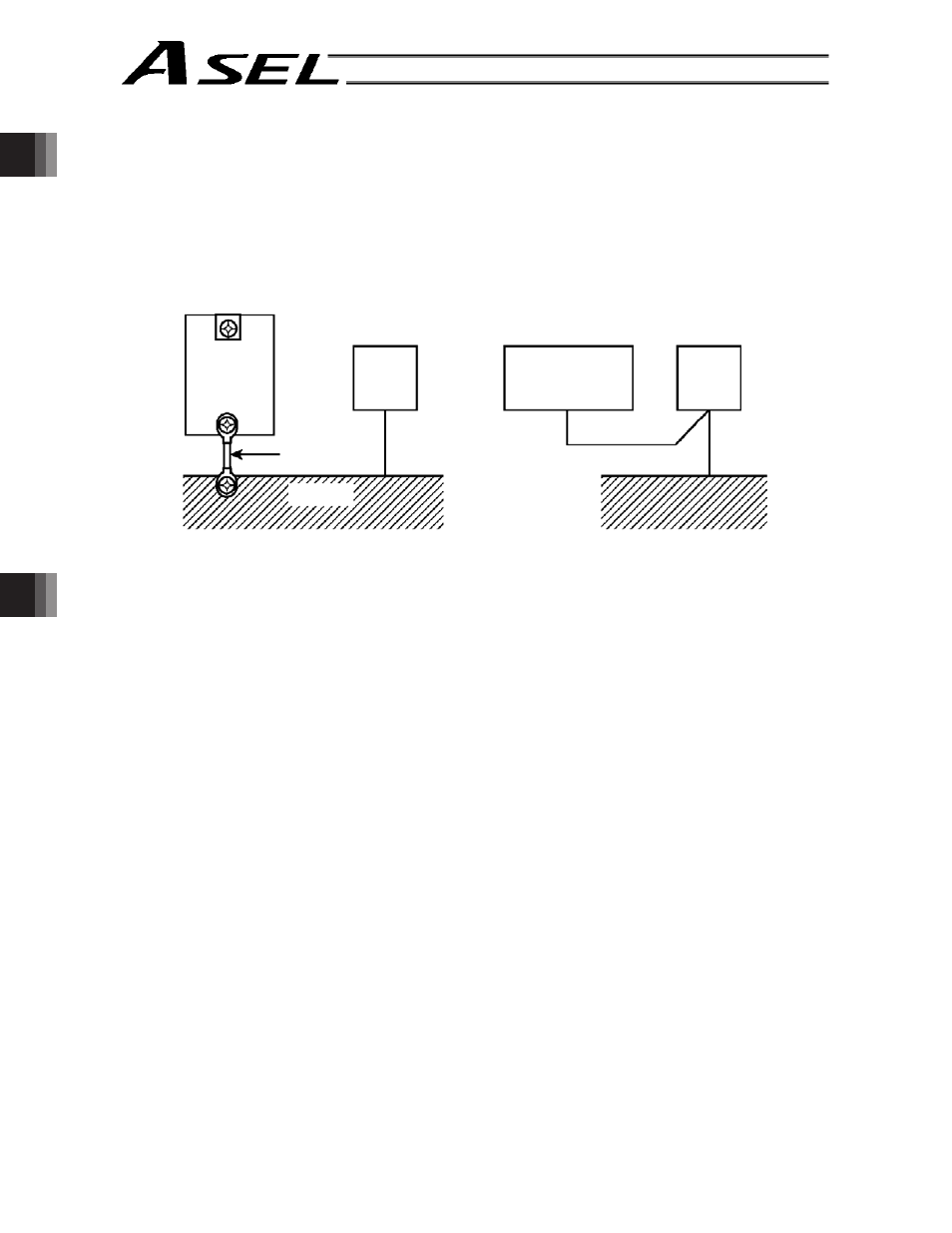

Metal
enclosure
Controller Other
equipment
Controller
Other
equipment
Connect a cable of
the largest possible
size over the shortest
possible distance.
Class D grounding Proper grounding Avoid using this method.
