2. Programming Format

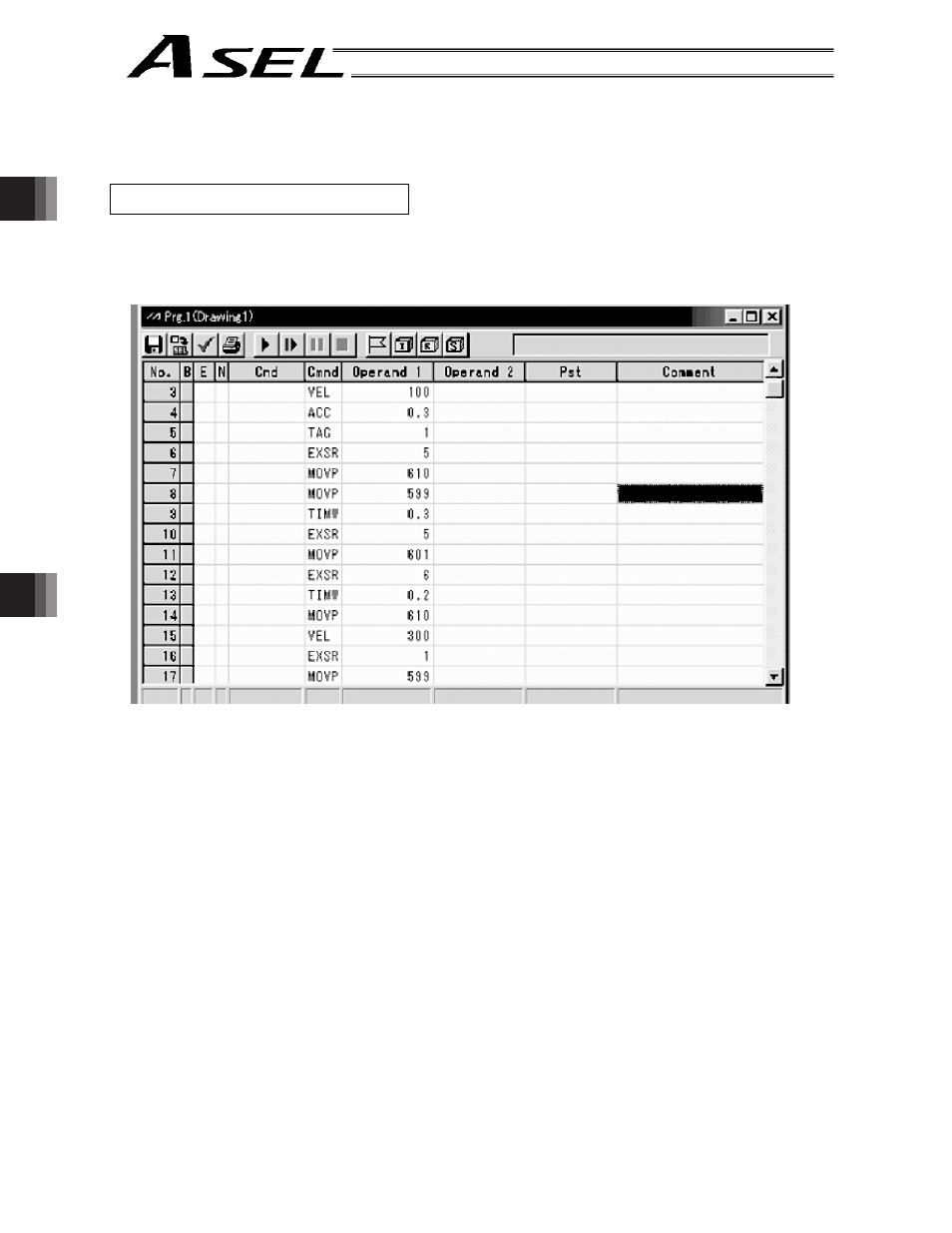

Program Edit Screen (PC Software)
The ASEL controllers support programs consisting of up to 2,000 steps.
Programs are edited using the PC software or teaching pendant.
No.: Step number
B: Set a breakpoint (this field becomes editable during online edit).
Click the “B” field in the line where you want to set a breakpoint. Once a breakpoint has
been set, “B” is shown in the line.
* Breakpoint --- A breakpoint is set in a step where you want to stop the program
temporarily while the program is run from the PC software.
E: Enter a desired extension condition (A, O, LD, AB or OB).
N: Specify “N” to indicate negation of the input condition.
Cnd: Enter an input condition.
Cmnd: Enter a SEL command.
Operand 1: Enter operand 1.
Operand 2: Enter operand 2.
Pst: Enter an output (operand 3).
Comment: Enter a comment, if necessary (using up to 18 single-byte characters).
