Part 2 Programs
Chapter 10 Example of Building a System
269
Part 2 Programs
Chapter 10 Example of Building a System
1. Position Table

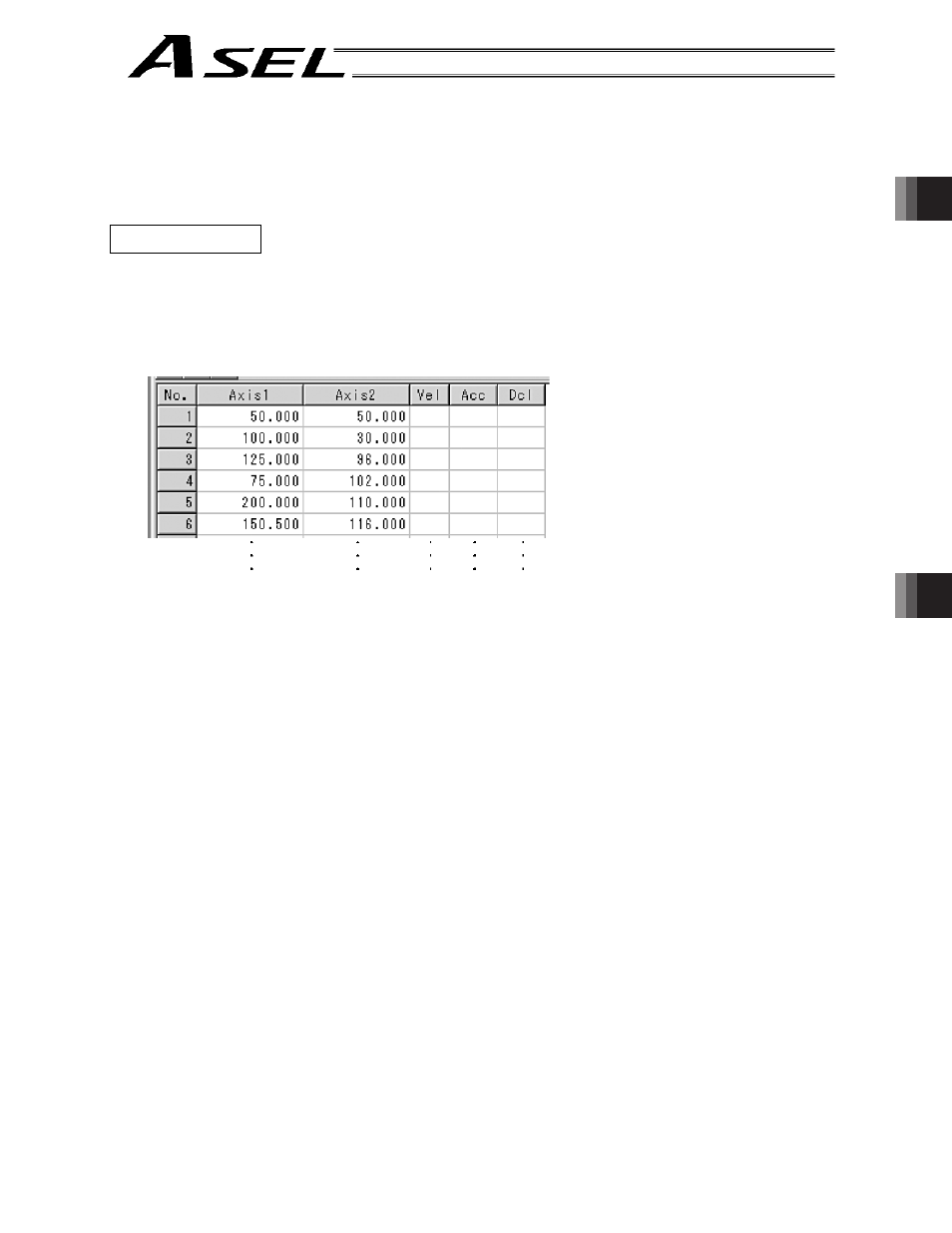

Position Table
Up to 1,500 position points can be registered in the ASEL controller.
Positions are registered using the PC software or teaching pendant.
(Example of 2-axis system)
No.: Specify a number, and the actuator will move to the position registered for the
specified number in the program.
Axis 1 to Axis 2: Enter the target position of each axis for each position number.
Vel: Set a speed. The speed set in this field takes precedence over the speed
specified in the program. In other words, the actuator uses the speed specified
here when moving to the position specified for the corresponding position number.
Acc: Set an acceleration. The acceleration set in this field takes precedence over the
acceleration specified in the program or one set by the applicable parameter.
Dcl: Set a deceleration. The deceleration set in this field takes precedence over the
deceleration specified by the program or one set by the applicable parameter.
