Appendix C: Parameter Summary Numeric Quick Reference (continued)
MP-128 PLC 163-156

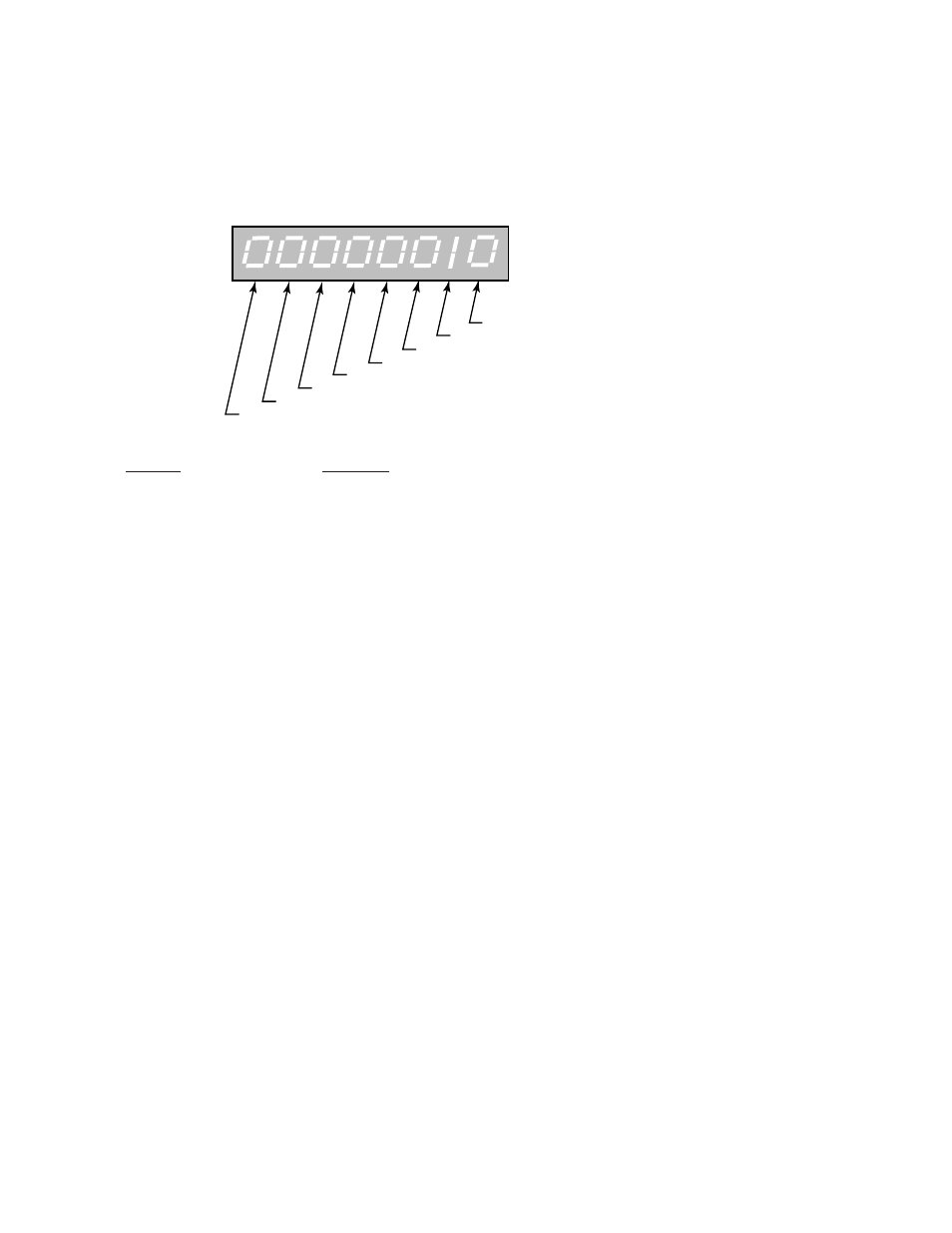

PLC 163-156 (MP-128) displays the status of the internal PLC control bits 163-156 (See graphic below). A “1” in any bit
indicates that the bit is “active”.
Not In Use
ByPassRmp
FrzRamp
Negate SR
Data Copy 1
Data Copy 2
Not In Use
Not In Use
Bit Name Description
Not In Use
ByPassRmp
Bypass Ramp
FrzRamp Freeze Ramp
Negate SR Negate Scaled Reference, change sign of ScaledRef (MP-30)
Data Copy 1
Data Copy 2
Not In Use
Not In Use
Minimum Value: 00000000 Maximum Value: 11111111
Units: Coded
