Appendix C: Parameter Summary Numeric Quick Reference (continued)
MP-119 PLC 87-80

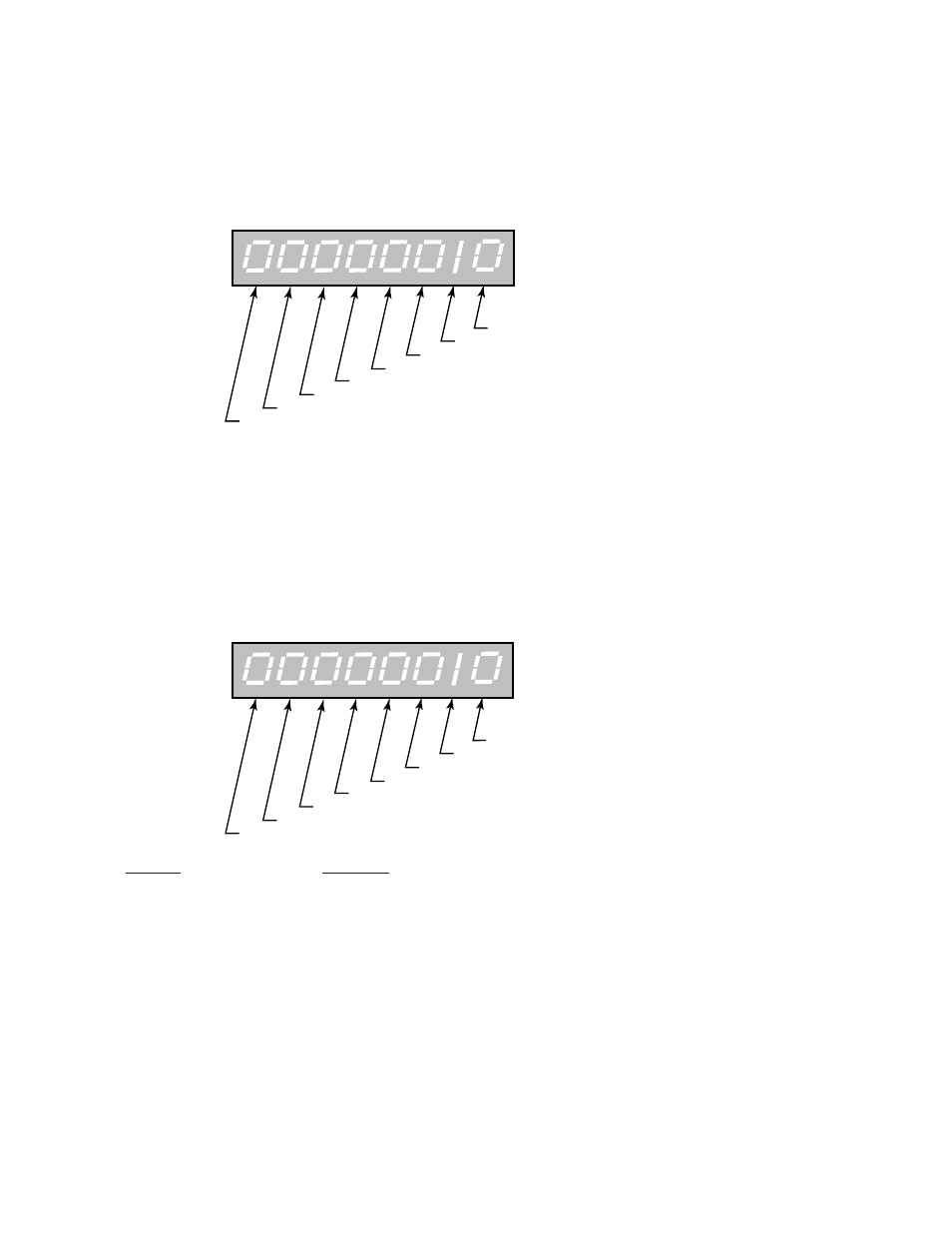

PLC 87-80 (MP-119) displays the status of the internal PLC status bits 87-80 (See graphic below). A “1” in any bit
indicates that the bit is “active”. These bits are only used to monitor the parameter block that is active.
Block 0 Selected
Block 1 Selected
Block 2 Selected
Block 3 Selected
Block 4 Selected
Block 5 Selected
Block 6 Selected
Block 7 Selected
Minimum Value: 00000000 Maximum Value: 11111111
Units: Coded
MP-120 PLC 95-88
PLC 95-88 (MP-120) displays the status of the internal PLC status bits 95-88. None of these bits are presently active.
They are reserved for future use.
Not In Use
Rvs Cmd
Not In Use
Not In Use
Not In Use
Not In Use
Not In Use
Not In Use
Bit Name Description
Not In Use
Rvs Cmd
Reverse direction command indicated
Not In Use
Not In Use
Not In Use
Not In Use
Not In Use
Not In Use
Minimum Value: 00000000 Maximum Value: 11111111
Units: Coded
