Appendix C: Parameter Summary Numeric Quick Reference (continued)
MP-102 DO 7..0

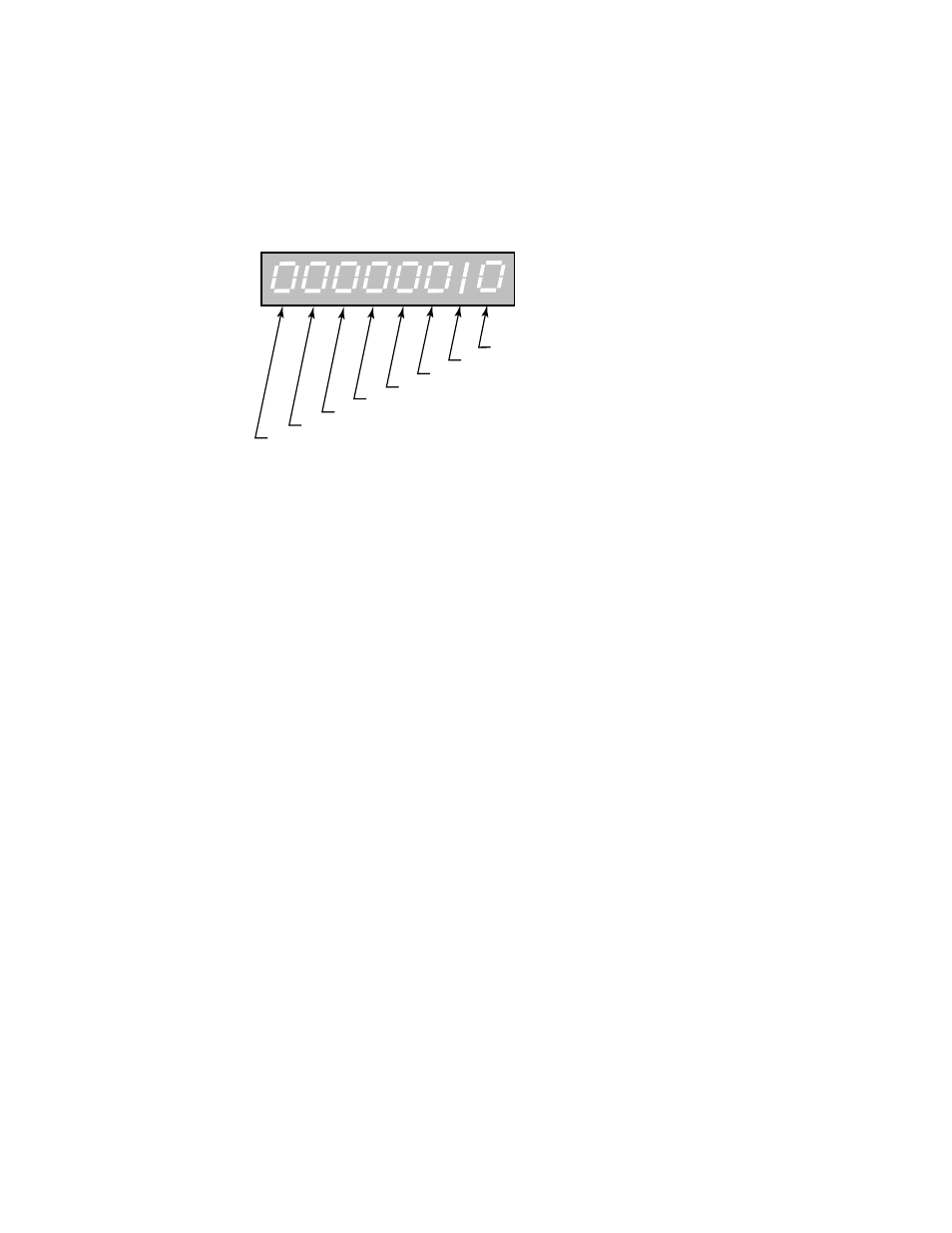

Digital Output 7..0 (MP-102) displays the value of the “J2” digital outputs. A ‘1’ in the bit location (see graphic below)
indicates an active “low voltage” condition on the corresponding open collector output (which would sink DC
current).
Drive Enable
Batch Done
Sync Alarm
Fwd/Rvs
Lead Sync Absent
Foll Sync Absent
Hi/Low Seed Alarm
Zero Speed
Minimum Value: 00000000 Maximum Value: 11111111
Units: Coded
MP-103 KeyPad Lockout
Keypad Lockout (MP-103) displays the Keypad Lockout status. The Keypad Lockout is active when “On” is
displayed. When Keypad Lockout is active, Control Parameter values can not be changed, with the exception of the
Control Parameters that are exempted by CP’s 480-489. The Keypad Lockout is not active when “OFF” is displayed.
When the Keypad Lockout is not active, any Control Parameter can be changed.
Minimum Value: 0 Maximum Value: 1
Units: Coded
MP-107 TMR4 TIME
Timer 4 Time (MP-107) displays the elapsed time, in seconds, for Timer 4 during the delay part of its operation.
Minimum Value: 0 Maximum Value: 86400
Units: Seconds
