Appendix C: Parameter Summary Numeric Quick Reference (continued)
MP-55 Custom Alms

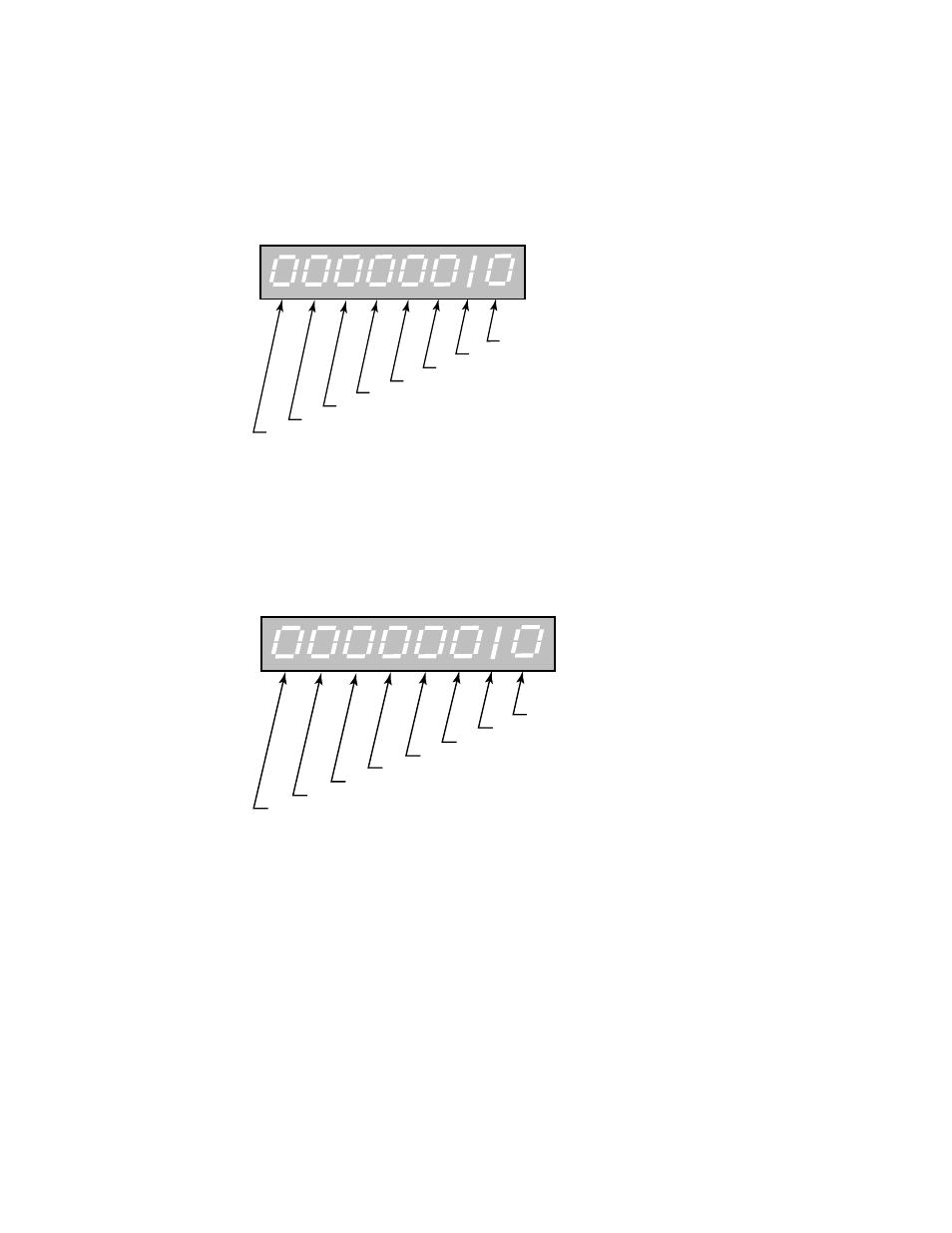

Custom Alarms (MP-55) displays the outputs of the PLC numerical comparators. A “1” in bit locations 0-3 indicates
that the result of the compare (Cmprx Parm value vs. Cmprx Val) is true for the given Cmprx Type. A “1” in bit locations
4-7 indicates that the result of the compare (Cmprx Parm value vs. Cmprx Val) is false for the given Cmprx Type (the
NOT is true). Refer to CP-380 through CP-395.
Cmpr1 Out - True
Cmpr2 Out - True
Cmpr3 Out - True
Cmpr4 Out - True
Cmpr1 Out - False
Cmpr2 Out - False
Cmpr3 Out - False
Cmpr4 Out - False
Minimum Value: 00000000 Maximum Value: 11111111
Units: Coded
MP-56 Misc Alarms
Misc Alarms (MP-56) displays various alarm conditions (see graphic below). A “1” in any bit location indicates an
active condition.
Low Power
Not in Use
Max FI1 Hz
Max FI2 Hz
Not in Use
Not in Use
Not in Use
Not in Use
Minimum Value: 00000000 Maximum Value: 11111111
Units: Coded
