C - 16
(Continued)
Appendix C: Parameter Summary Numeric Quick Reference (continued)
MP-113 PLC 39-32

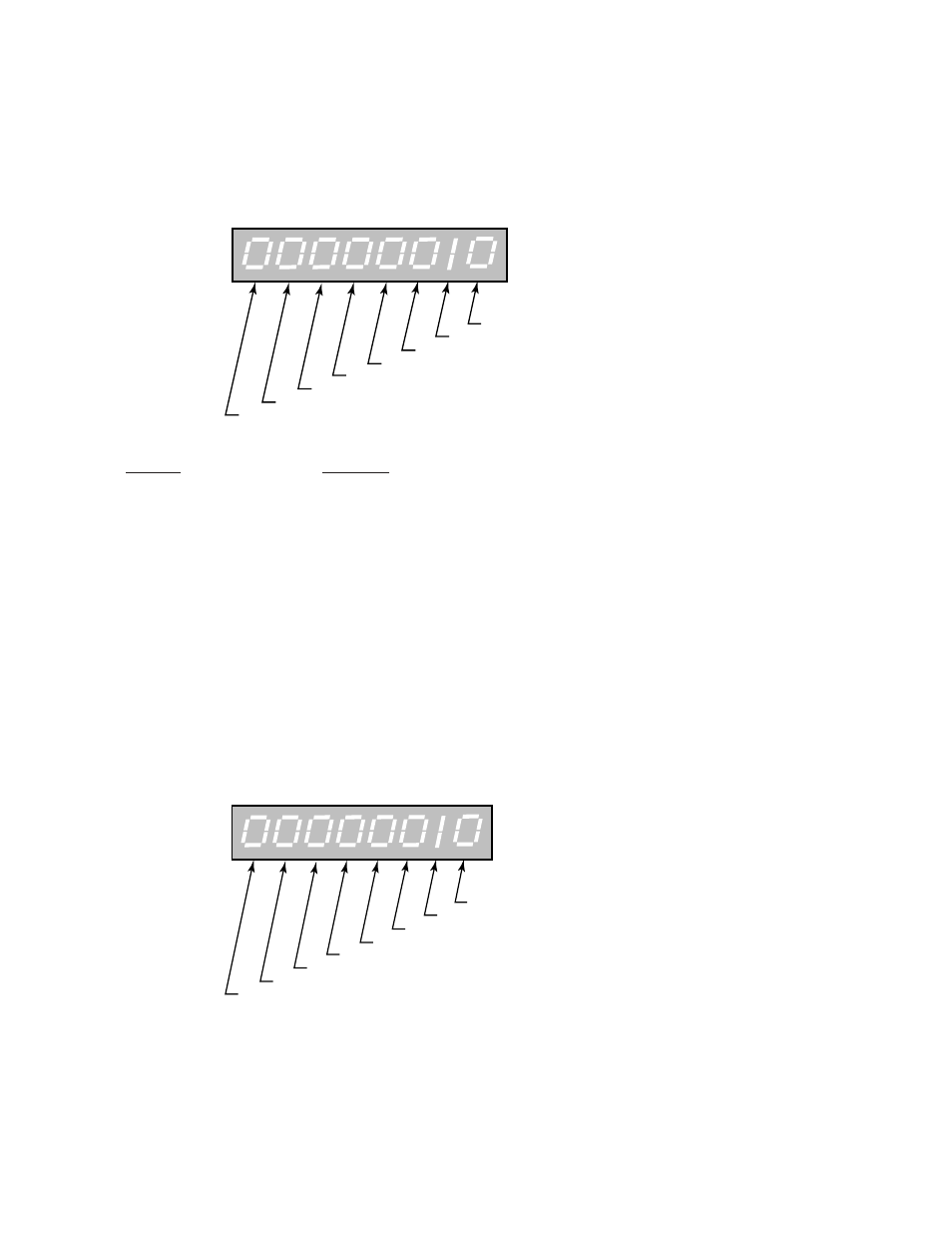

PLC 39-32 (MP-113) displays the status of the internal PLC status bits 39-32 (See graphic below). A “1” in any bit
indicates that the bit is “active”
Cntr 1 Out
Cntr 2 Out
Cntr 3 Out
Cntr 4 Up Out
Cntr 4 Dn Out
Low Power
Not In Use
Not In Use
Bit Name Description
Cntr1 Out Counter 1 Output
Cntr2 Out Counter 2 Output
Cntr3 Out Counter 3 Output
Cntr4UpO Counter 4 Up counter Output
Cntr4DnO Counter 4 Down counter Output
Low Power Low Power Indication
Not In Use
Not In Use
Minimum Value: 00000000 Maximum Value: 11111111
Units: Coded
MP-114 PLC 47-40
PLC 47-40 (MP-114) displays the status of the internal PLC status bits 47-40 (See graphic below). A “1” in any bit
indicates that the bit is “active”
Direct Mode
Master Mode
Follower Mode
Invs Follower Mode
Non-Sync
Fixed Ratio Sync
Trend Ratio Sync
Learn Ratio Sync
Minimum Value: 00000000 Maximum Value: 11111111
Units: Coded
