C - 19
(Continued)
Appendix C: Parameter Summary Numeric Quick Reference (continued)
MP-117 PLC 71-64

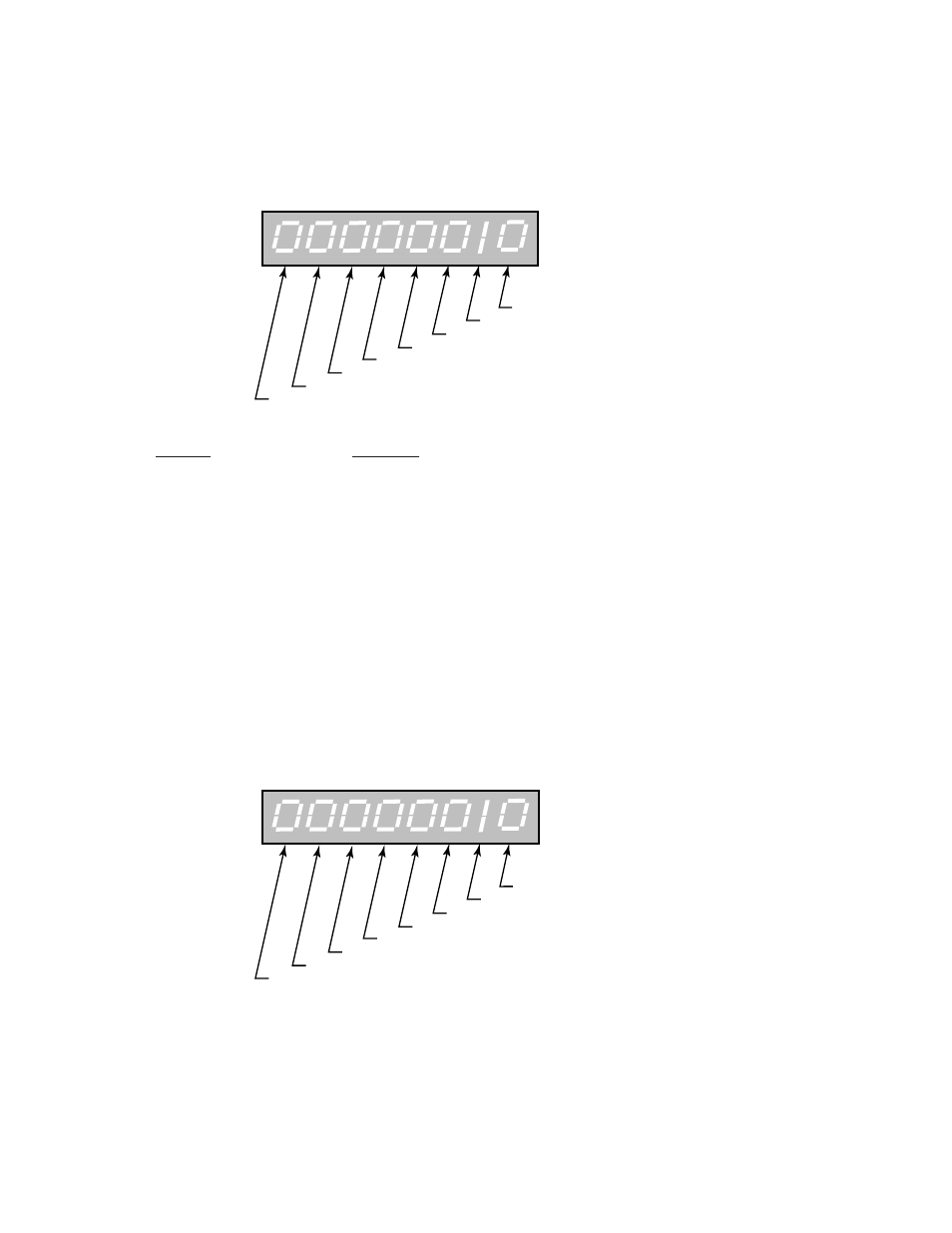

PLC 71-64 (MP-117) displays the status of the internal PLC status bits 71-64.
Not In Use
OutOfPosn
LdSyncMis
FollSyncMis
LdSyncRcv
FollSyncRcv
OneSecSqW
Not In Use
Bit Name Description
Not In Use
OutOfPosn
Out of Position
LdSyncMis Lead Sync pulse is Missing
FollSyncMis Follower Sync pulse is Missing
LdSyncRcv Lead Sync pulse Received
FollSyncRcv Follower Sync pulse Received
OneSecSqW One Second Square Wave Output
Not In Use
Minimum Value: 00000000 Maximum Value: 11111111
Units: Coded
MP-118 PLC 79-72
PLC 79-72 (MP-118) displays the status of the internal PLC status bits 79-72 (See graphic below). A “1” in any bit
indicates that the bit is “active”. These bits are only used to monitor the operating state of the CX-1200.
F-Stop
R-Stop
H-Stop
Run
Jog Fwd
Jog Rvs
Not In Use
DiagState
Minimum Value: 00000000 Maximum Value: 11111111
Units: Coded
