Operation Manual 4-13
• Press the HOLES key and then press the BOLT CIRCLE softkey.

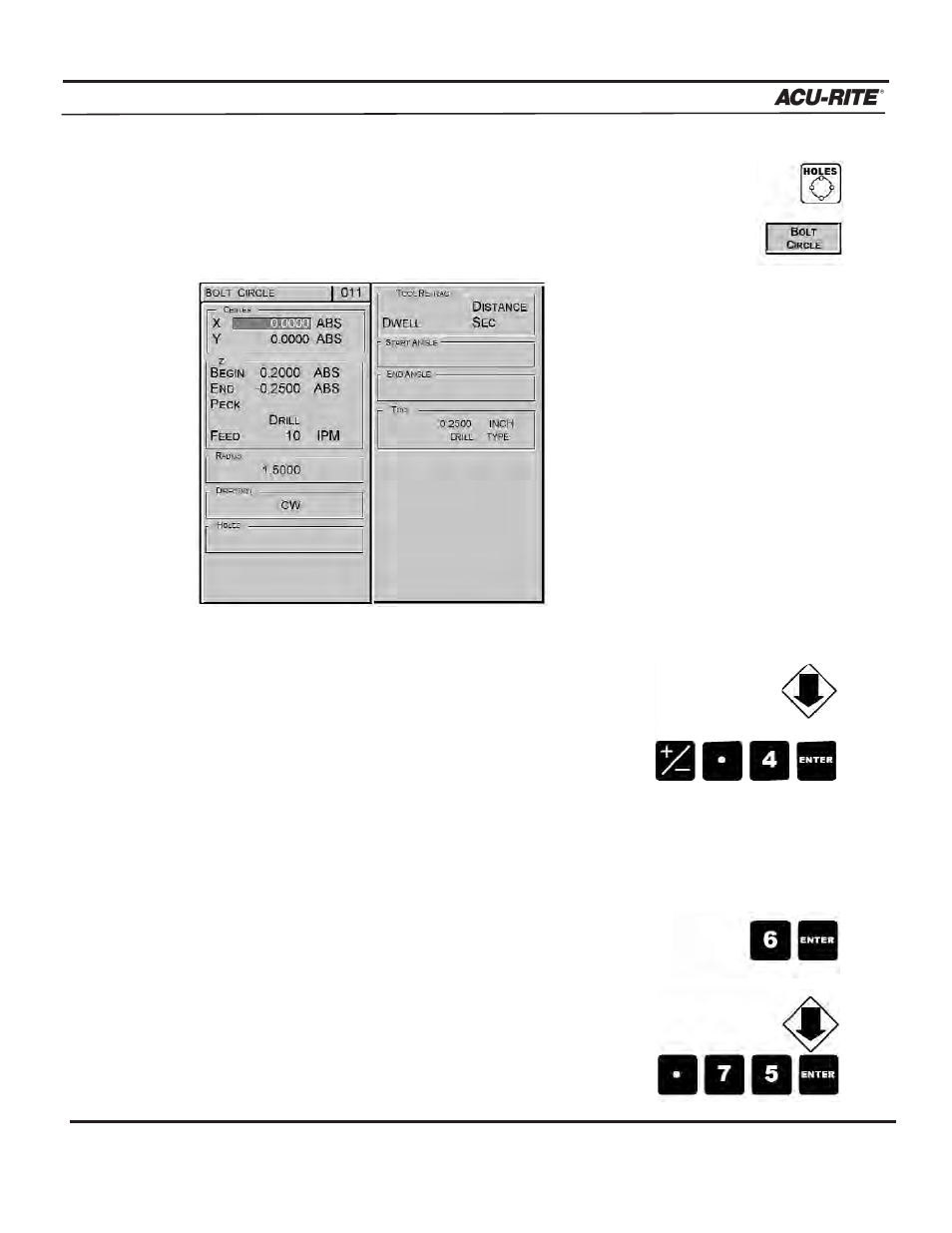

The following screen will appear:
Notice that the CENTER , DIRECTION and Z BEGIN are carried forward
from the arc that were programmed earlier. Enter the depth of cut, peck
radius and tool retract values.
• Enter 6 in the “Peck” field.
• Arrow down to the “Z End” field and enter a value of -0.4
• Arrow down again and enter a radius of 0.75”
