CALCULATOR
MILLPWR ®
• The polar coordinates are R2
(radius) and A2 (angle). (Remember,
a polar coordinate is a position
defined by an angle and a radius.)
• Since GeoCalc doesn’t need the
length of the line, enter a radius
value of 5”.
• The angle of the line
from datum is 70°.

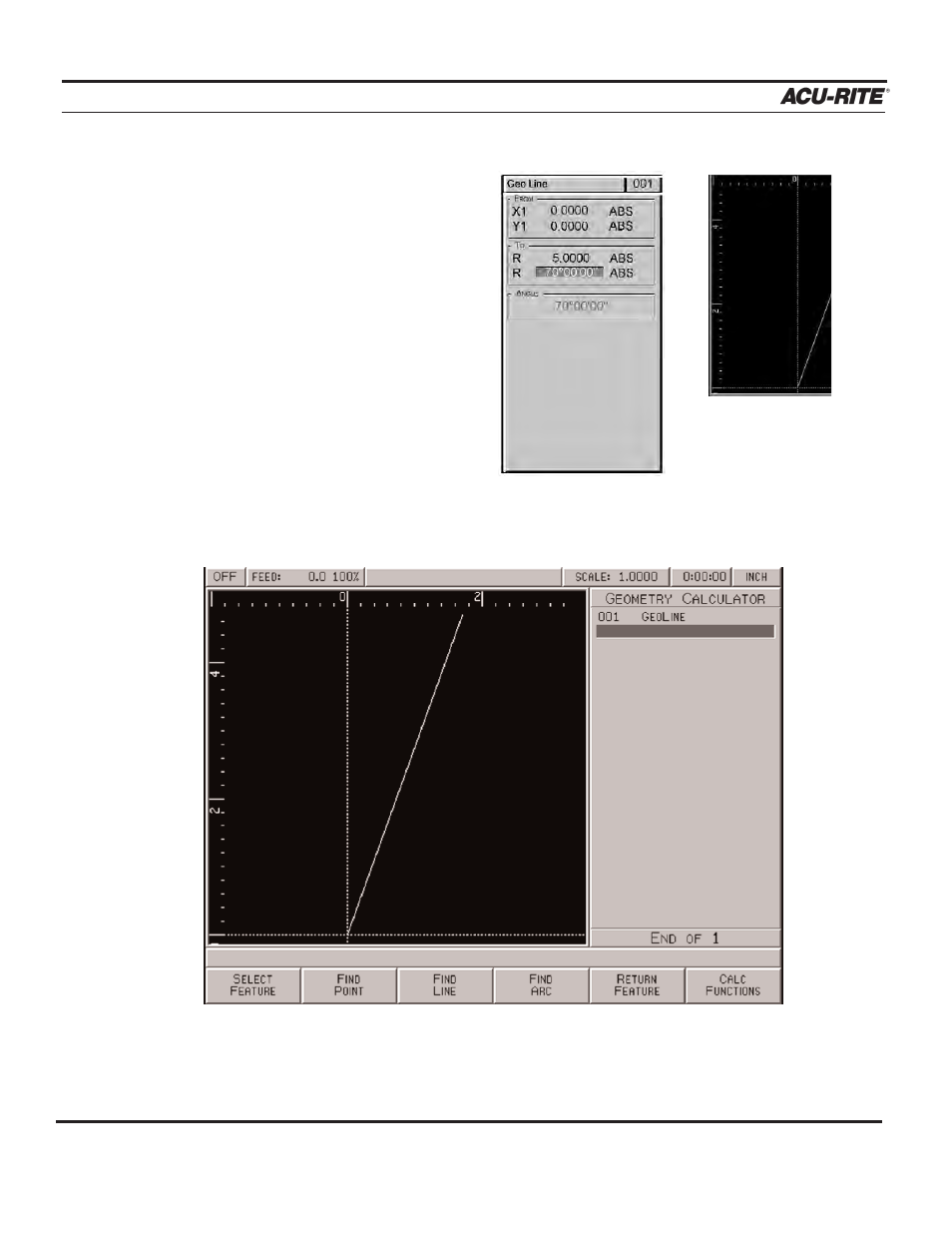

• Press the USE key, and a line starting
at point A and traveling through
point D will appear.
Operation Manual 6-12
