PROGRAM STEPS
MILLPWR
®
Operation Manual
5-10
•
Select the cutting direction. Press the
CW
softkey for a clockwise direction or the
CCW
softkey for a counter-clockwise direction.
•
Arrow down and highlight the "Offset" field. Using the softkeys, select the tool offset—
LEFT
,
CENTER
,
RIGHT
,
INSIDE
or
OUTSIDE
.
•
Enter the table’s feed rate.
•
If you need to enter a center coordinate, 3
RD
point and/or sweep
angle:

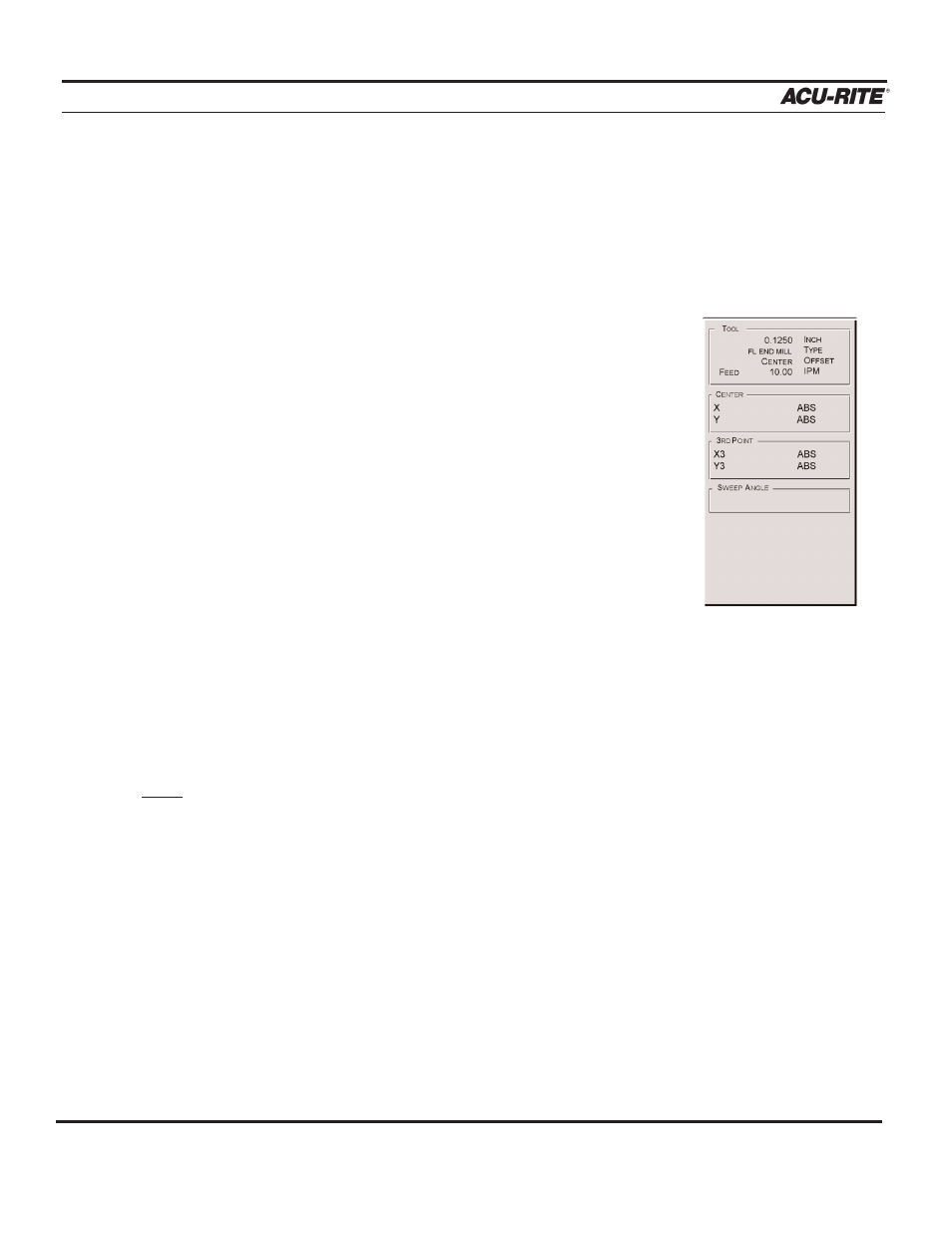

Center
Enter the center coordinate’s position for the X- and
Y-axes.
3
RD
Point
Enter your 3
RD
coordinate’s position for the X-axis (X3) and
Y-axis (Y3).
Sweep Angle
Enter the sweep angle.
Information that appears in blue has been calculated. If any of these values are already
displayed in blue, then
MILLPWR
has enough data for the arc and has calculated the rest.
•
Press the
USE
key.
Note:
If the tool size and type listed in the "Tool" field are incorrect, change the tool
settings before running your program (refer to Programming a Tool Step).
