ACU-RITE MILLPWR 3 Axes - Manual (Page 201)

Operation Manual 7-21
To set your travel limits:
• From Installation Setup, highlight "Travel Limits" and
press
ENTER . The “X-axis Travel” field should be high-
lighted.
• Move the table to the position where you want your
right table travel limit set.
• Press the SET RIGHT LIMIT softkey.
• Move the table to the position where you want your left table
travel limit set.
• Press the SET LEFT LIMIT softkey.
Note: The X-axis travel field will update to show you the
maximum allowable traveling distance between the left
and right table travel limits.
• Now highlight the "Y-axis Travel" field.
• Move the table away from you until you've reached the
position where you want the inside table travel limit set.
• Press the SET INSIDE LIMIT softkey.
• Move the table towards you until you've reached the position where you want
the outside table travel limit set.
• Press the SET OUTSIDE LIMIT softkey.
Note: The Y-axis travel field will update to show you the maximum allowable
travel distance between the inside and outside table travel limits.
Use the handles
or the MOVE
TABLE feature
to position your
table.
If you use
MOVE TABLE,
a caution mes-
sage will inform
you that the
table travel lim-
its are not acti-
vated.

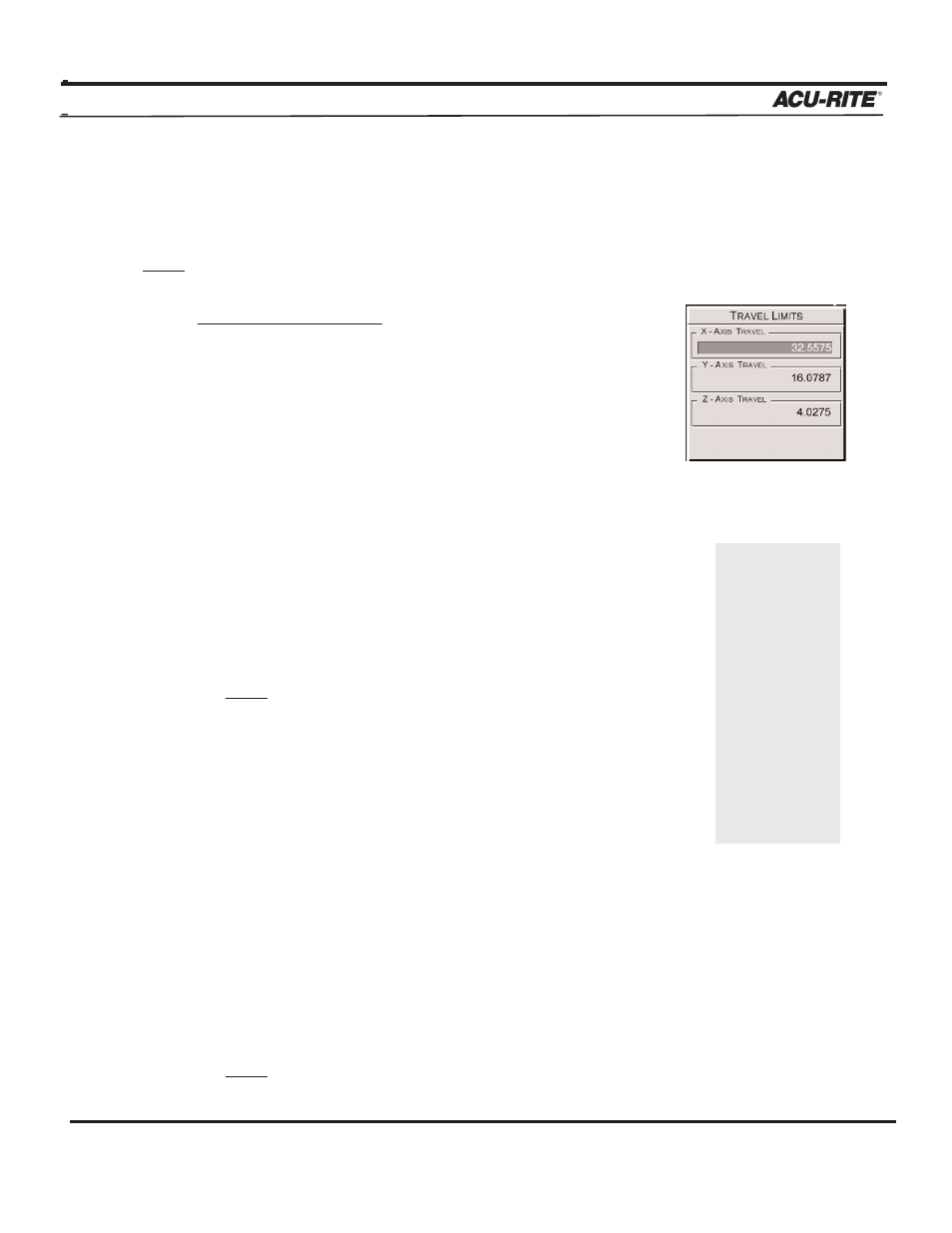

Travel Limits
Travel limits define how far you will allow the table to move along the X- and Y-axes and
how far up and down the quill can be positioned along the Z-axis.
Note: You must find home before you can establish your travel limits.
SETUP
MILLPWR ®
