PROGRAM STEPS
MILLPWR
®
Operation Manual
5-24
INSIDE
FRAME
OUTSIDE
FRAME

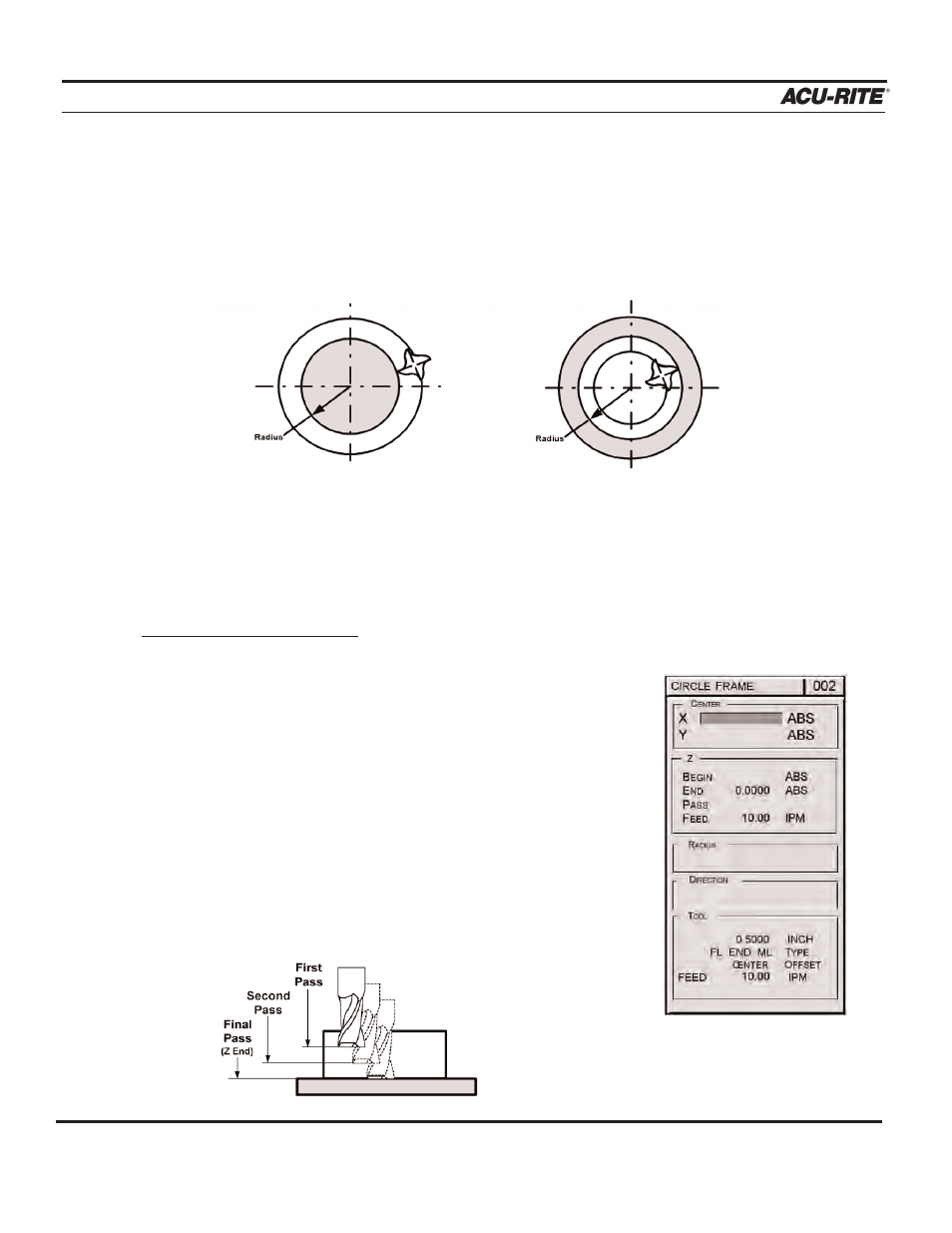

To program a circular frame:
•
Press the
CIRCLE
key.
•
Press the
FRAME
softkey.
•
Enter the X- and Y-axes coordinates for the center point.
•
Enter the begin and end depths for the Z-axis.
•
Enter either the number of passes OR the distance
between each pass. “Pass” refers to the cuts that are used
to machine the pocket to its “End” depth.
Frame
A circular frame is determined by its center point and radius. The direction will determine if
you’re climb cutting or conventional cutting. The tool offset will determine if you are cut-
ting an inside or outside frame.
