PROGRAM STEPS
MILLPWR
®
Operation Manual
5-44

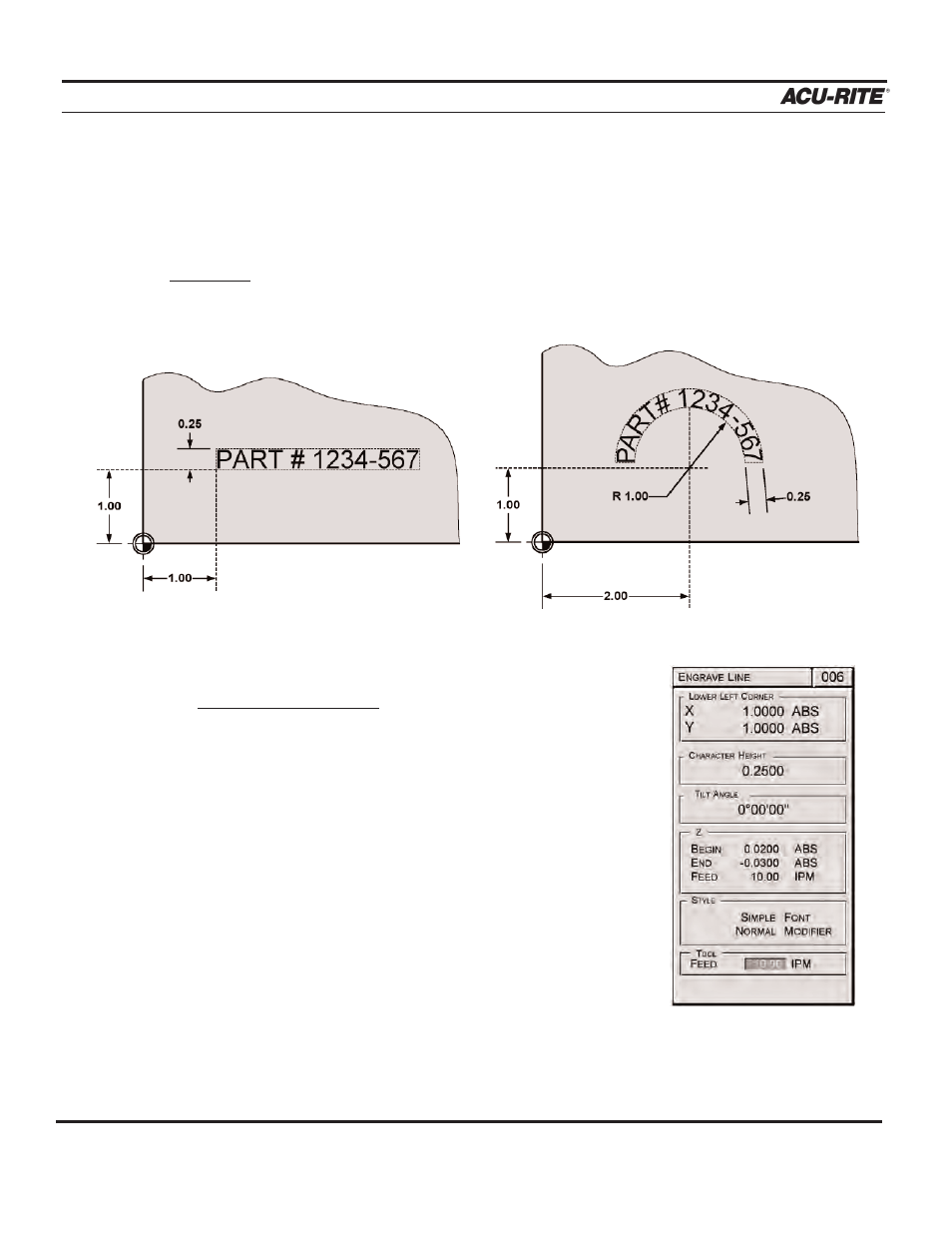

Engrave
With
MILLPWR
, you have the ability to engrave letters, numbers and symbols, along a
straight line or on an arc. Choose from a simple, stick or stencil font. The character
height, font and modifier settings you select will define your engraving’s appearance.
Condition:
The tool diameter being used establishes the spacing between letters.
Engrave Line
To engrave along a line:
•
From the PGM screen, press the
MORE STEPS
softkey.
•
Press the
MORE STEPS
softkey again.
•
Press the
ENGRAVE LINE
softkey.
•
Enter the X- and Y-axes coordinates for the point
at the lower left corner of your engraving.
•
Enter the character height.
•
Enter the tilt angle (if any).
•
Enter the begin and end depths for the Z-axis.
•
Enter the Z-axis feed rate.
