• If you need to program a tool retract, start angle and/or end angle, press
the
MORE softkey.
Tool Retract
Enter the number of tool retracts or the distance between each
retract. Enter the length of time (in seconds) that you want the tool
to dwell (pause).
Start Angle

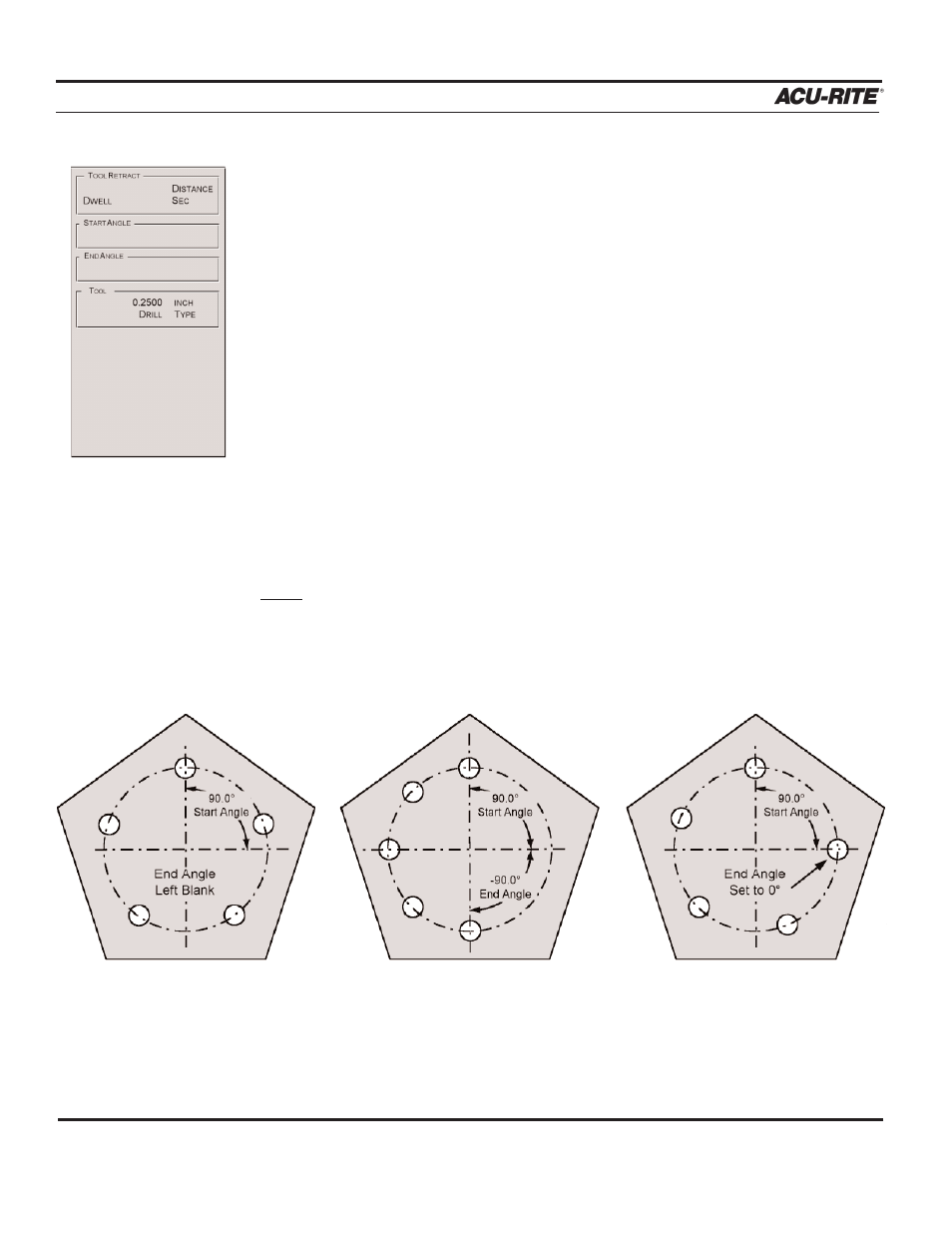

Enter the start angle of the first hole in the bolthole circle pattern
(refer to graphic, below).
End Angle
Enter the end angle of the last hole in the bolthole circle pattern
(refer to graphic, below).
• Press the USE key.
Note: If the tool size and type in the "Tool" field are incorrect, change the
tool settings before running your program (refer to Programming a
Tool Step).
