PROGRAM STEPS
MILLPWR ®
Operation Manual 5-32
Hole Frame and Hole Array
Hole frame and hole array patterns require the same information, but their patterns
differ slightly. Hole frames limit holes to the outside edge of a rectangular shape, while
hole arrays allow holes along the outside edge and throughout the center.
Hole frames and hole arrays can be defined three ways:
• By the position of the 1 ST Corner, size, and the number of holes
• By the position of the 1 ST Corner, position of the 2 ND (diagonal) Corner, and number
of holes
• By the position of the 1 ST Corner, hole spacing, and number of holes
Choose the method that’s easiest for you based upon the information from your print.

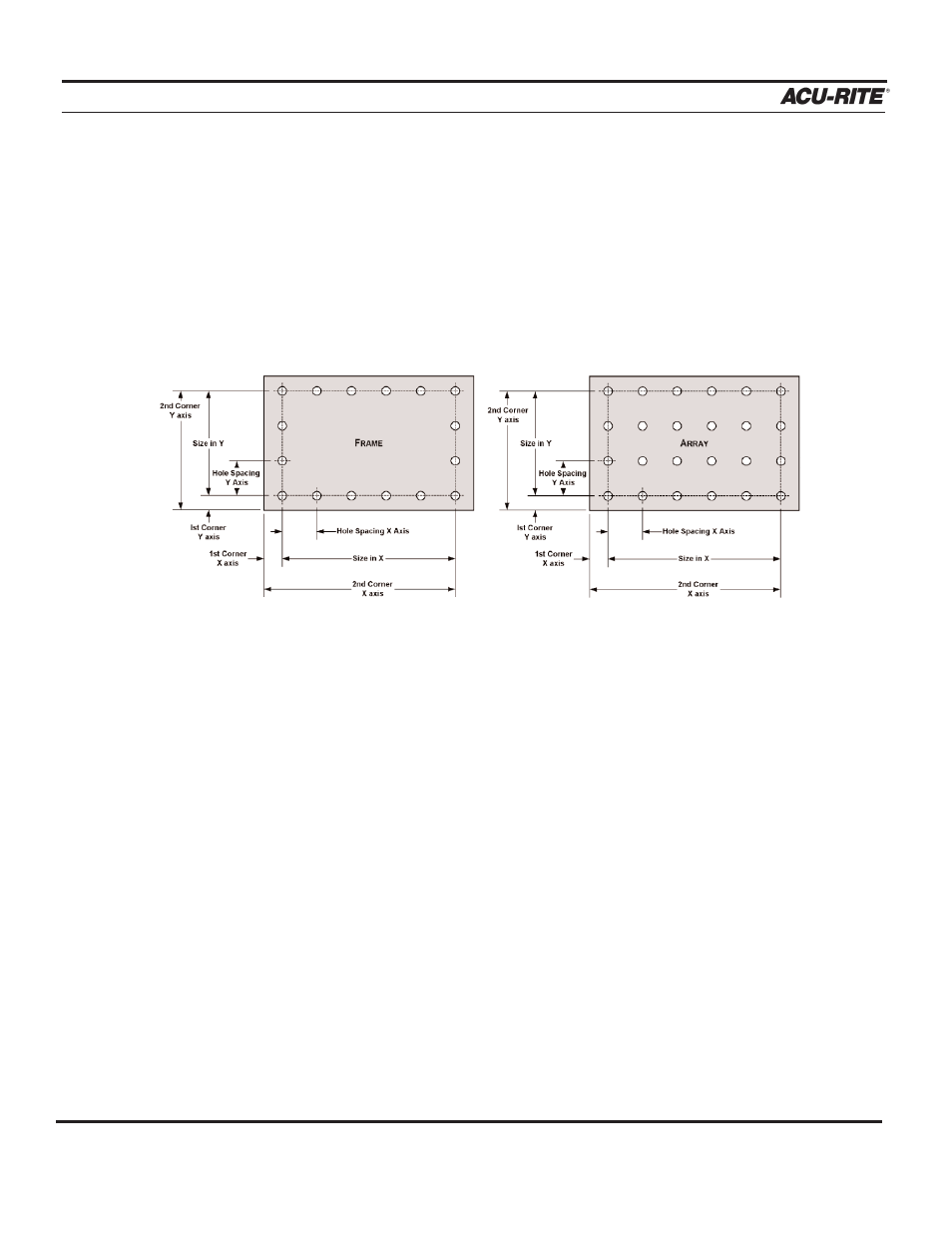

Hole Frame Hole Array
