PROGRAM STEPS
MILLPWR ®
Operation Manual
To explode a step:
• Highlight the step.
• Press the STEP FUNCTIONS softkey.
• Press the EXPLODE softkey.
The step that you exploded will be replaced with the individual lines, arcs or positions that
made up the step.
5-61

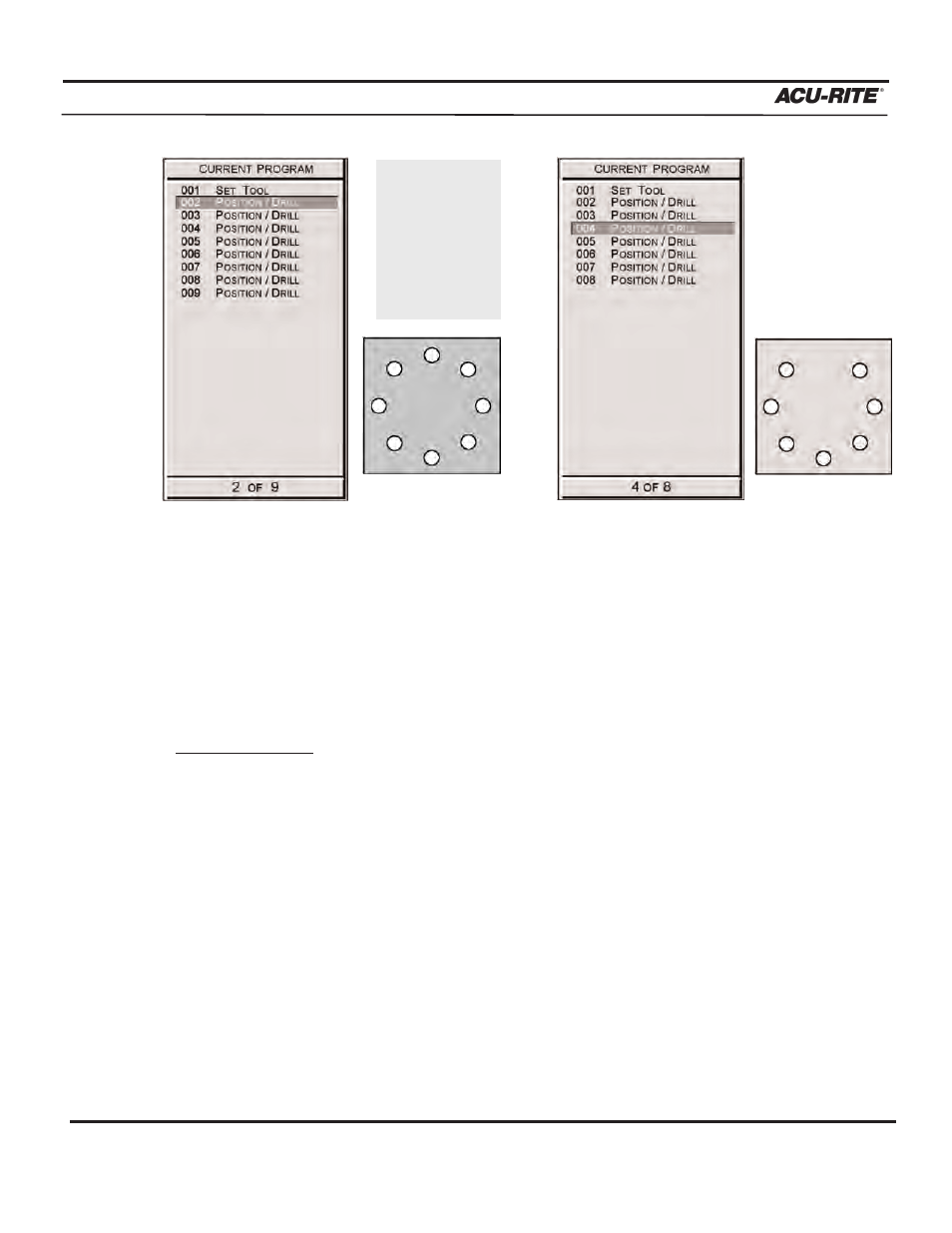

Notice how the
individual
“Position/Drill”
steps replaced
the “Bolt
Circle” step.
MILLPWR will explode the “Bolt Circle” steps into eight steps (shown on the left, above).
Next highlight the step that represents the hole that needs to be deleted and press the CLEAR
key. In the graphic above, chose to delete the hole programmed in step 4.
As you can see in the graphic on the right, the bolthole circle pattern now has seven holes.
