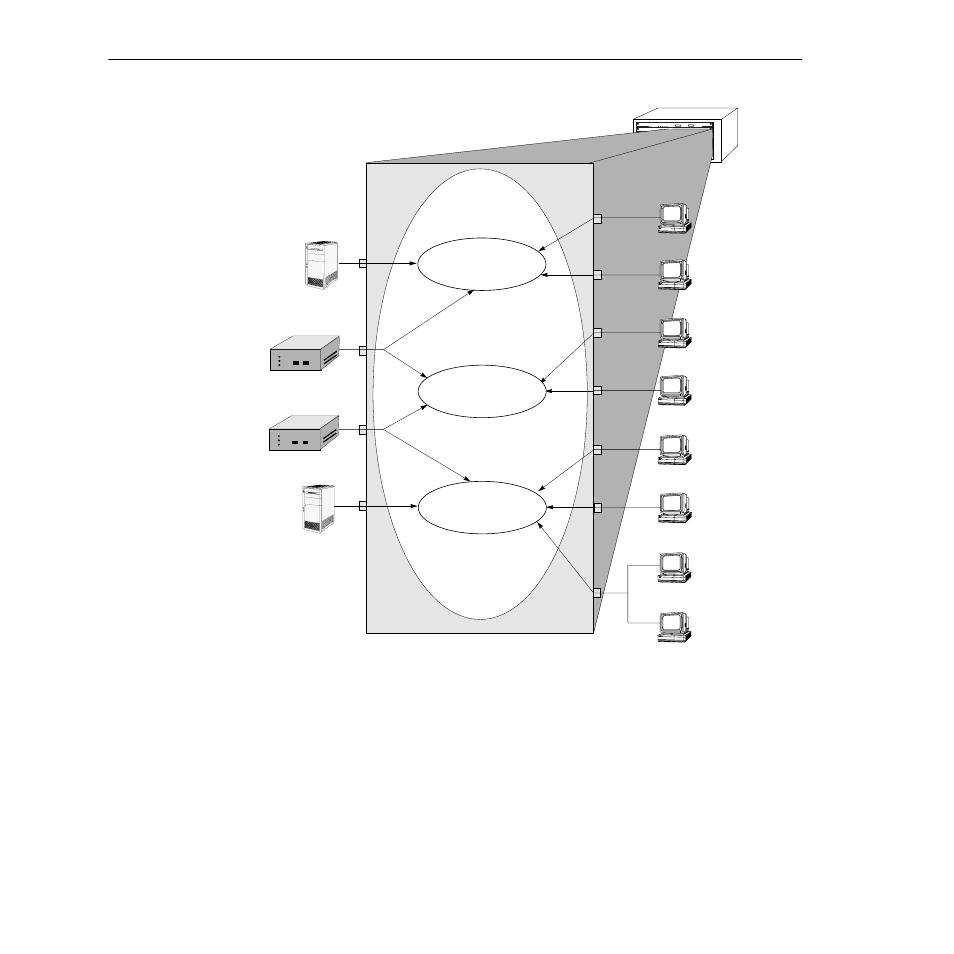

Application Example: DHCP Policies
Page 20-29
12345678
123456
Omni Switch/Router
Client 1
DHCP Port
Rule
Client 2
DHCP Port
Rule
Client 3
DHCP Port
Rule
Client 4
DHCP Port
Rule
Client 5
DHCP Port
Rule
Server 1
10.15.14.16
Server 2
10.13.15.17
Router 2
Bootp
Relay On
Group 3
DHCP Port and
MAC Rules
Router 1
No Bootp
Relay
Client 7
DHCP MAC
Rule
Client 6
DHCP Port
Rule
Client 8
DHCP MAC
Rule
Branch VLAN
IP Subnet 10.13.X.X
DHCP Port/MAC Rules
Production VLAN
IP Subnet 10.15.128.X
DHCP Port Rules
Test VLAN
IP Subnet 10.15.X.X
DHCP Port Rules
DHCP Servers
Both DHCP servers become
members in their respective
VLAN s via IP subnet rules.
Router s
Router 1 provides connectivity
between the Test
VLAN and
the Production VLAN . It does
not have Bootp functionality
enabled so it cannot connect
DHCP servers and clients from
different VLAN s.
Router 2 connects the Produc-
tion
V L A N and the Branch
V L A N . W i t h B o o t p r e l a y
enabled, this router can pro-
vide connectivity between the
DHCP server in the Branch
VLAN and the DHCP clients in
the Production VLAN .
DHCP Clients
Clients 1 to 6 are assigned to
their respective
VLAN s through
DHCP port rules. Clients 3 and
4 are not in a VLAN with a
DHCP server so they must rely
on the server in the Branch
VLAN for initial addressing
information. Clients 7 and 8
share a port with other devic-
es, so they are assigned to the
Branch
VLAN via DHCP MAC
address rules.
