WAN Modules
Page 3-31

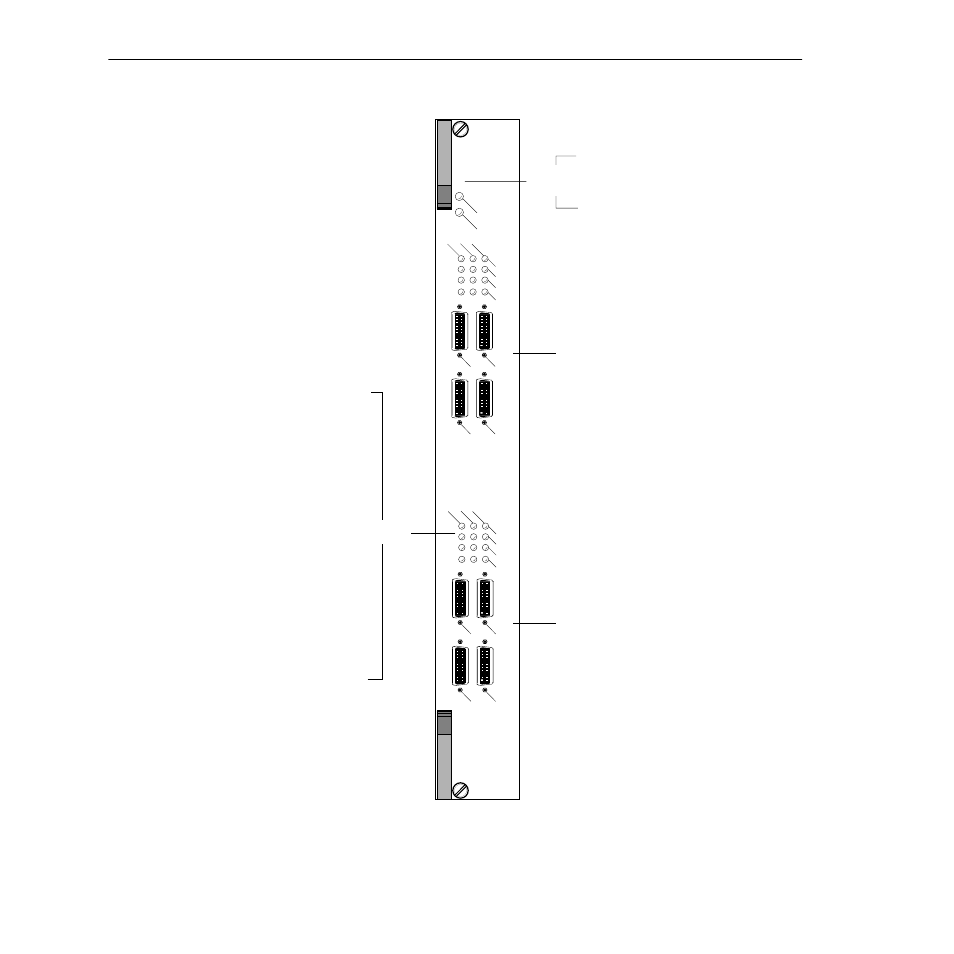

8-Port WAN Frame Relay Switching Module
1
2
3
STA RX TX
4
3 1
2
The module includes one row of
LEDs for each port. The LEDs for a
given port are located in the row
labeled with the port number. If the
WSX module includes a total of
eight ports, then the module con-
tains two sets of four rows of LEDs.
The second set of LEDs are located
above the second set of ports.
4
5
6
7
STA RX TX
8
3 1
2 4
Module
LEDs
Please refer to 2-Port WAN
Frame Relay Switching Mod-
ule on page 3-28 for further
information on these LEDs.
Ports 1 through 4
Ports 5 through 8
WSX
OK1
OK2
STA (Status). On Green con-
tinuously when the port con-
nection is operational. Off
when the port is disabled or
the cable is detached. Blink-
ing On/Off if cable is attached
but receive control data is
detected as down.
This LED also blinks during
initialization, diagnostics, or
when invalid data is being
exchanged on the port.
T X ( T r a n s m i t ) . O n “ h a l f -
bright” Green when idle and
Green with occasional flickers
when the port is transmitting
data.
RX (Receive). On “half-bright”
Green when idle and Green
with occasional flickers when
the corresponding port is
receiving data.
Port
LEDs
