12 MOD Functions
12.1 MOD functions
System Information
The NC and PLC software numbers appear on the TNC screen after
the corresponding MOD functions have been selected. The vacant
memory in bytes is displayed directly below them.

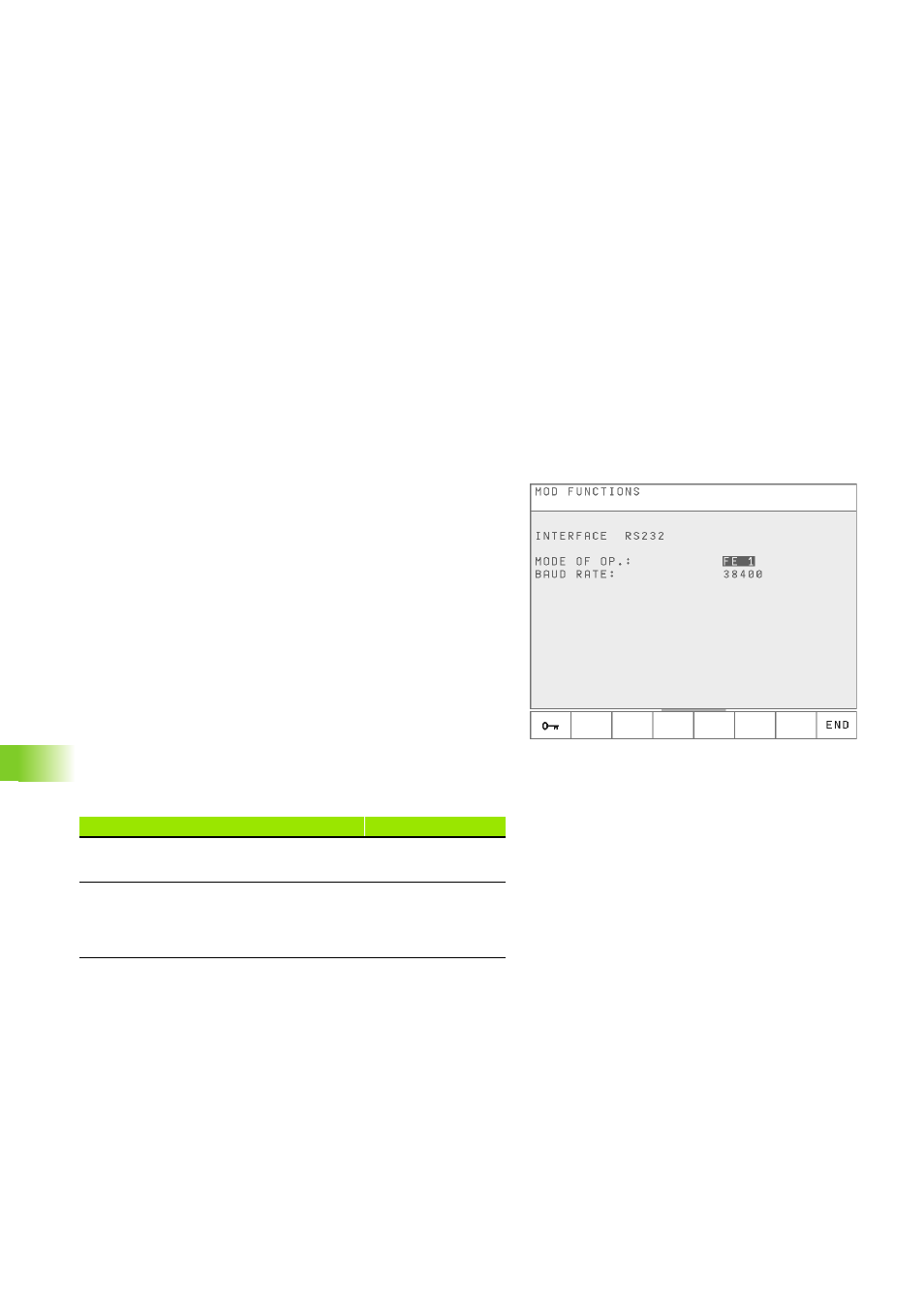

Setting the external data interfaces
Two functions are available for setting the external data interfaces:
BAUD RATE
RS-232-C INTERFACE
The functions are selected as MOD functions with the vertical arrow
keys.
BAUD RATE
Sets the speed of data transfer.
Available baud rates:
110, 150, 300, 600, 1 200, 2 400, 4 800, 9 600, 19 200, 38 400 baud.
To change the baud rate setting:
Press the horizontal arrow keys.
RS-232-C interface
The proper setting depends on the device connected.
Use the ENT key to select the setting.
External device
RS-232-C interface
HEIDENHAIN floppy disk units
FE 401 and FE 401 B
FE 1
HEIDENHAIN ME 101 magnetic tape unit,
non-HEIDENHAIN devices such as printers,
scanners, tape punchers, PC without
TNC.EXE
EXT
