172

[SecPath-pkey-key-code]E55B394A217DA38B65B77F0185C8DB8095522D1EF044B465E

8716261214A5A3B493E866991113B2D

[SecPath-pkey-key-code]485348

[SecPath-pkey-key-code] public-key-code end

[SecPath-pkey-public-key] peer-public-key end

# Specify the host public key for the SSH server (10.165.87.136) as key1.

[SecPath] ssh client authentication server 10.165.87.136 assign publickey key1

[SecPath] quit

# Establish an SSH connection to SSH server 10.165.87.136.

ssh2 10.165.87.136

Username: client001

Trying 10.165.87.136

Press CTRL+K to abort

Connected to 10.165.87.136...

Enter password:

After you enter the correct username and password, you can log in to Router successfully.

Publickey authentication enabled SSH client configuration
example

Network requirements

As shown in

Figure 81

, SecPath (the SSH client) must pass publickey authentication to log in to Router (the

SSH server) through the SSH protocol. Use the DSA public key algorithm.

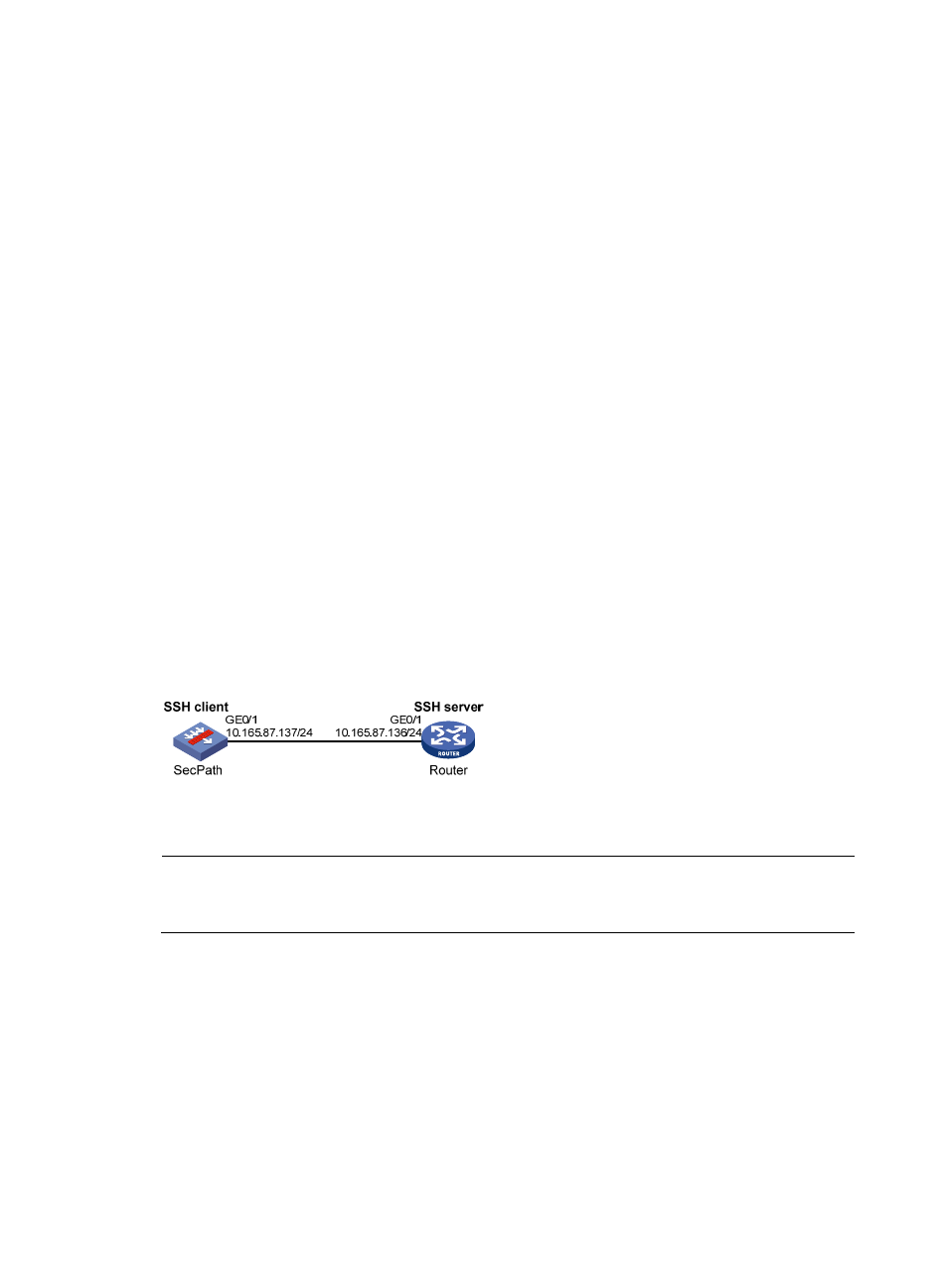

Figure 81 Network diagram

Configuration procedure

NOTE:

During SSH server configuration, the client's host public key is required. Use the client software to
generate a DSA key pair on the client before configuring the SSH server.

1.

Configure the SSH client
# Configure an IP address for interface GigabitEthernet 0/1.

system-view

[SecPath] interface GigabitEthernet 0/1

[SecPath-GigabitEthernet0/1] ip address 10.165.87.137 255.255.255.0

[SecPath-GigabitEthernet0/1] quit

# Generate a DSA key pair.

[SecPath] public-key local create dsa

The range of public key size is (512 ~ 2048).

NOTES: If the key modulus is greater than 512,
