RF
Appendix A

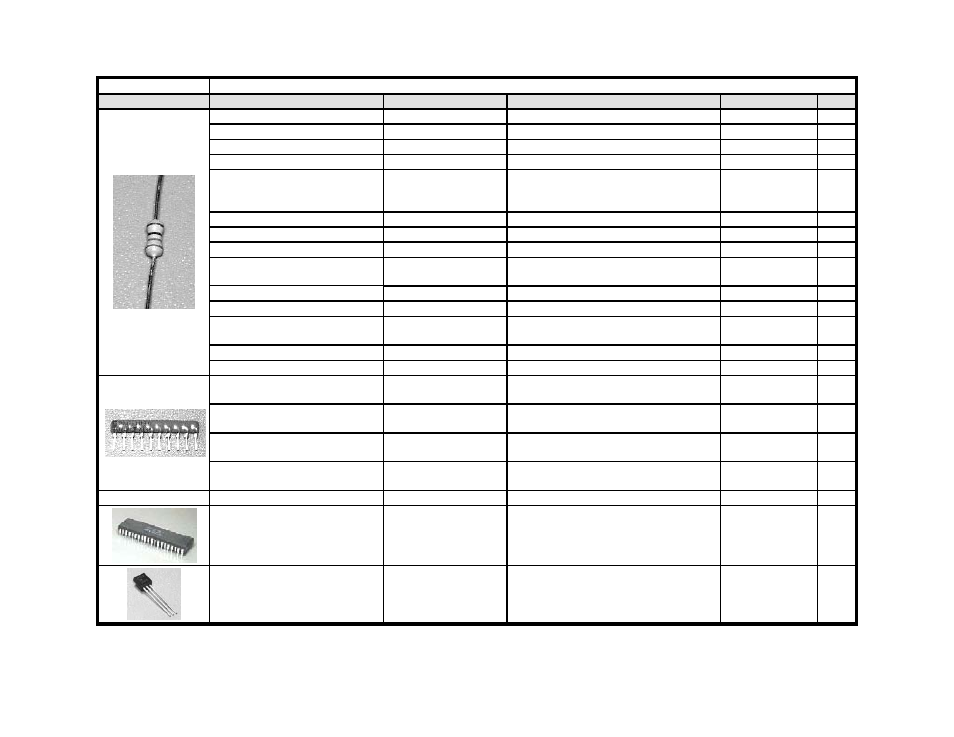

K2 RF Board Parts List (p/n E850001A and E850001B)
Designators
Value
Description
Part Number
QTY
R75, R80
680
(TAN) 5%, 1/4 watt
E500040T
2
R91, R93, R100
820
(TAN) 5%, 1/4 watt
E500001T
3
R38, R39
1K
(TAN) 5%, 1/4 watt
E500013T
2
R79, R81
1.8K
(TAN) 5%, 1/4 watt
E500004T
2
R5, R19, R24, R25, R34,
R44, R62, R66, R73, R95,
R96
2.7K
(TAN) 5%, 1/4 watt
E500005T
11
R114
3.9K
(TAN) 5%, 1/4 watt
E500009T
1
R59
4.7K
(TAN) 5%, 1/4 watt
E500047T
1
R110, R111
5.6K
(TAN) 5%, 1/4 watt
E500007T
2
R13, R14, R29, R31, R32,
R65, R101
10K
(TAN) 5%, 1/4 watt
E500015T
7
R33
15K
(TAN) 5%, 1/4 watt
E500060T
1
R28
27K
(TAN) 5%, 1/4 watt
E500056T
1
R9, R16, R17, R21, R37,
R69, R107
100K
(TAN) 5%, 1/4 watt
E500006T
7
R18
1M
(TAN) 5%, 1/4 watt
E500024T
1
R22
3.3M
(TAN) 5%, 1/4 watt
E500021T
1
RP4,RP5
100K,3R ISO; "6A3-
104G"
SIP; resistor pack, 6 pins; ALT:
"77063104"
E510017
2
RP6
100K,4R ISO; "8A3-
104G"
SIP; resistor pack, 8 pins; ALT:
"77083104" or "B104G"
E510018
1
RP3
n/a
Thermistor board installed here (see
text)
n/a
0
RP2
10K,4R ISO; "8A3-
103G"
SIP; resistor pack, 8 pins; ALT:
"77083103"
E510005
1
TP1, TP2, TP3
test point, female
VFO, BFO, PLL REF test points
E620036
3
U1
16F872
Relay Driver PIC; I/O Controller;
programmed
E610004
1
U2
78L06AWC
TO-92, 6v Reg. For relays
E600001
1
