Bio-Rad ChromLab™ Software User Manual
Page 64

3
| System Control
62
| NGC Chromatography Systems and ChromLab Software
To unmap valves
1.
Do one of the following:
In the System Control window, select Tools > Map Fluidic Scheme.
On the touch screen, choose Map Fluidic Scheme on the dropdown menu.

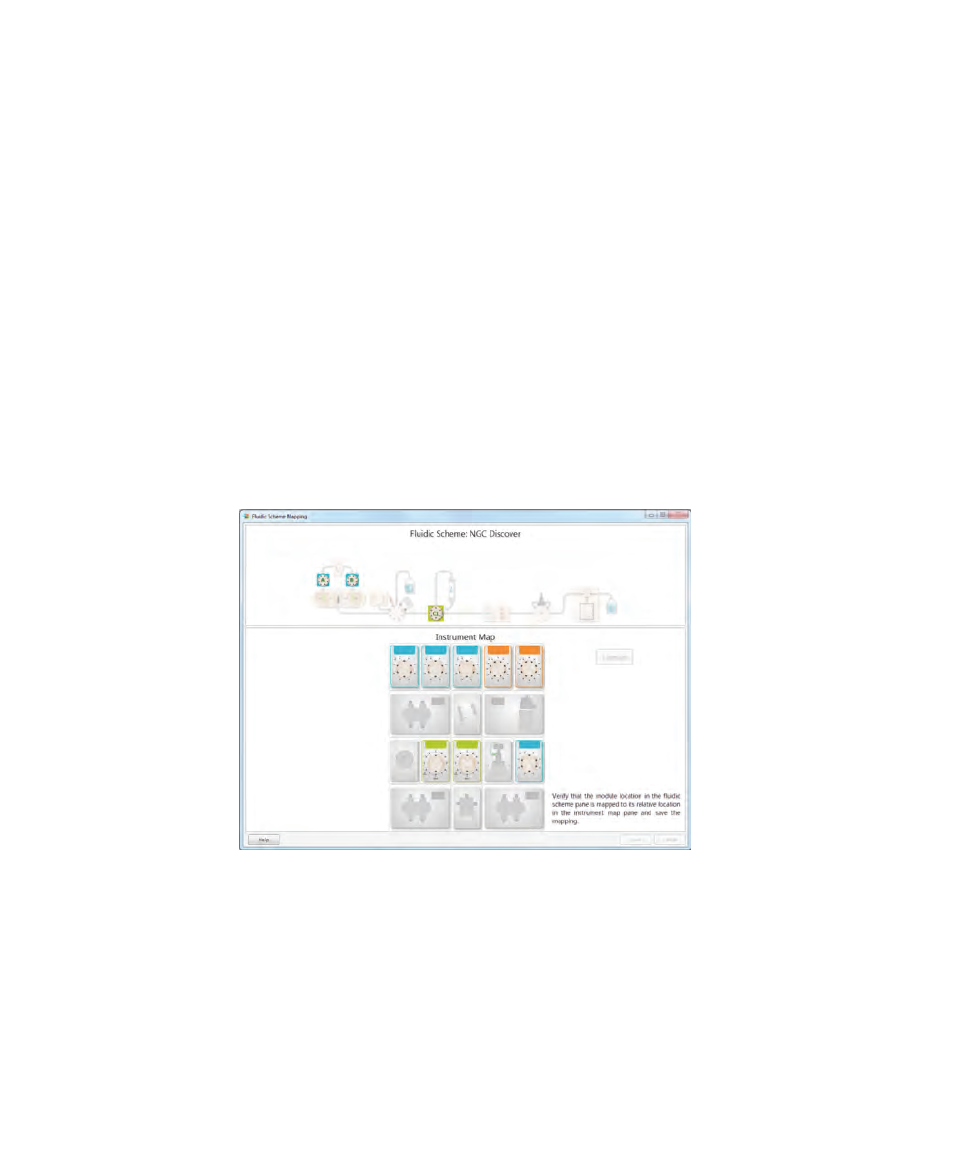

The Fluidic Scheme Mapping dialog box appears with the valves on the fluidic
scheme mapped to their default positions on the instrument map.
2.
Select a valve on the instrument map. The border of the valve on the fluidic
scheme becomes highlighted, indicating that it is selected.
3.
Click Unmap. The border of the valve on the instrument map thins and its label
disappears, indicating that the valve is no longer mapped to the fluidic scheme.
4.
(Optional) Continue unmapping all valves that need to be remapped.
5.
To map the valves, proceed to
To cancel unmapping valves
Click Cancel to cancel unmapping the valves. The fluidic scheme and
instrument map return to the previous mapping configuration.
