The System Control Window
User Guide
| 23
The System Control Window
The System Control window enables you to run the instrument manually, monitor
method runs while they are running, select fluidic schemes, calibrate pumps and
detectors, and verify the accuracy of instrument plumbing. This window displays a

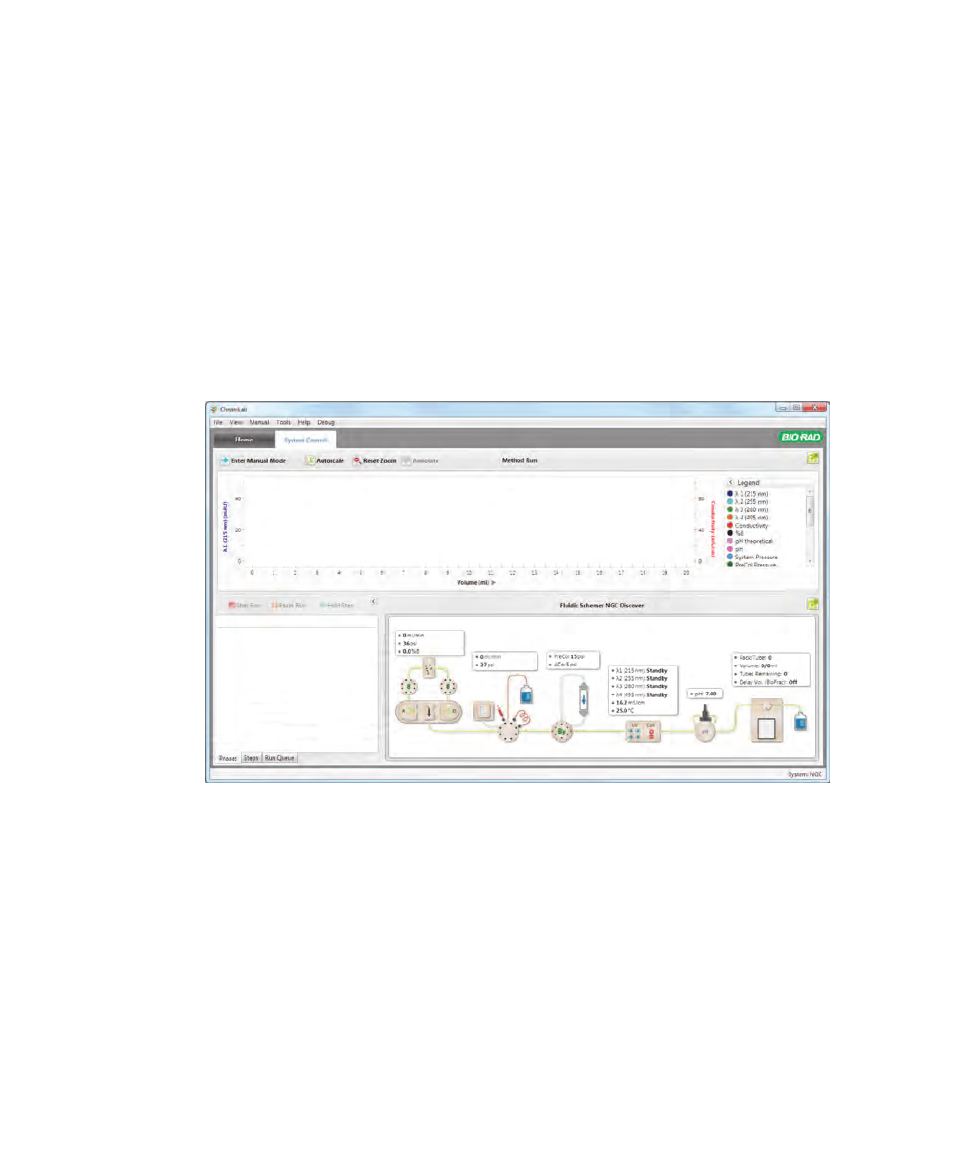

chromatogram during a run. A fluidic scheme graphically depicts the flow path of all
the modules on the system. A status panel appears above each module displaying
its real-time status. In manual mode, clicking a module displays its controls and
detailed settings. The Run Log documents each action that occurs during a run. The
Run Queue lists all runs ready to be started.
