Fluidic Scheme Pane
User Guide
| 57
Working with Fluidic Schemes
Five sections of the fluidic scheme can be configured based on the available
modules and experiment requirements.
Pumps
Sample inject
Columns
Detectors
Sample collection
To change a fluidic scheme
1.
Do one of the following:
In the System Control window, select Tools > Change Fluidic Scheme.
On the touch screen, choose Change Fluidic Scheme on the dropdown
menu.
The Fluidic Scheme Selector dialog box appears. A descriptive tooltip appears
when you pause the pointer on a module in the fluidic scheme.

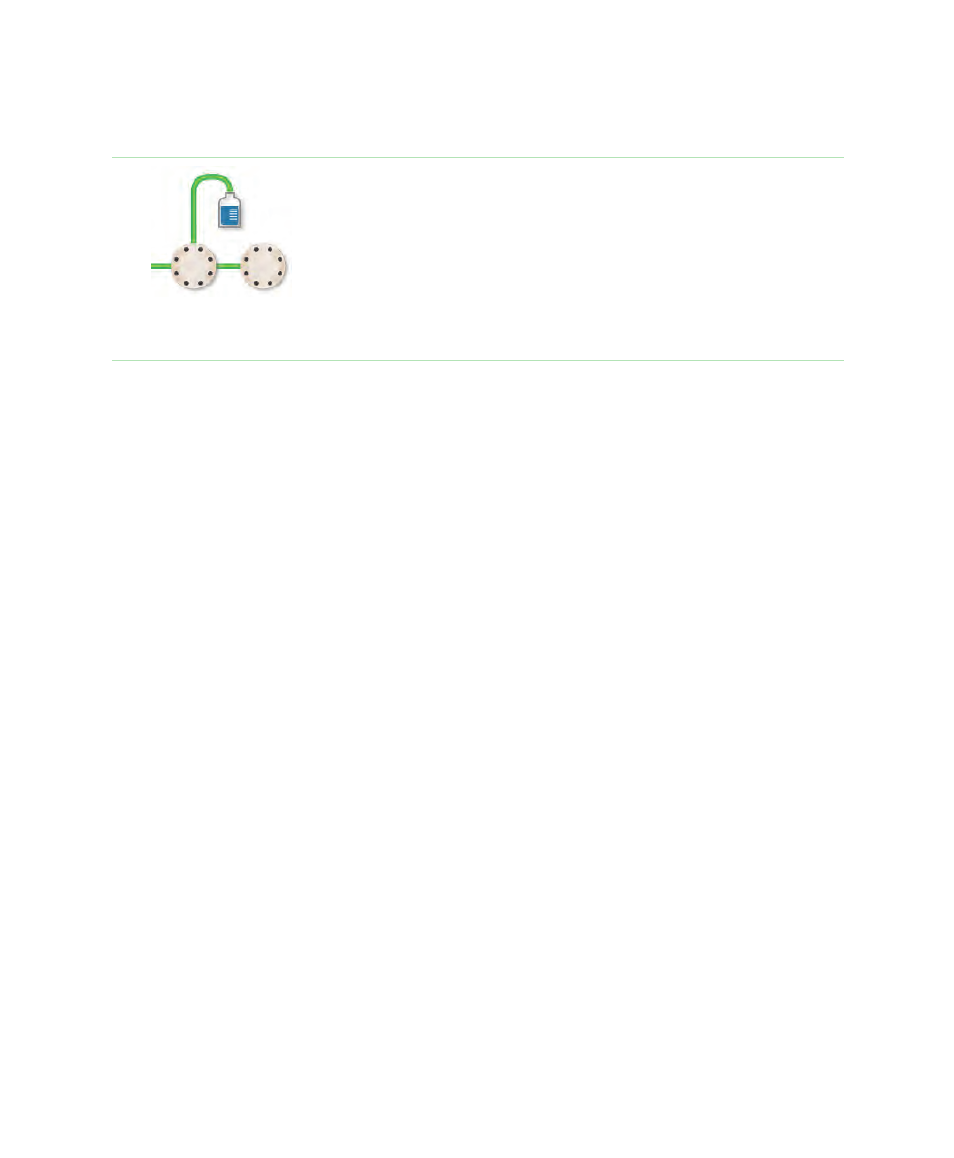

Two outlet valves
For use as a fraction collector, can
collect up to 22 large-volume fractions
when two outlet valves are daisy-
chained together.
Select outlet ports can be plumbed to
divert a fraction eluted from a column
onto a sample/storage loop to be
subsequently reinjected onto a second
column during tandem applications.
Table 3.
Fluidic Scheme Configuration Options, continued
