Bio-Rad ChromLab™ Software User Manual
Page 244

7
| Evaluating Results
242
| NGC Chromatography Systems and ChromLab Software
Orange — for fractions collected via an outlet valve. The outlet valve and
port number appear at the top of each block.

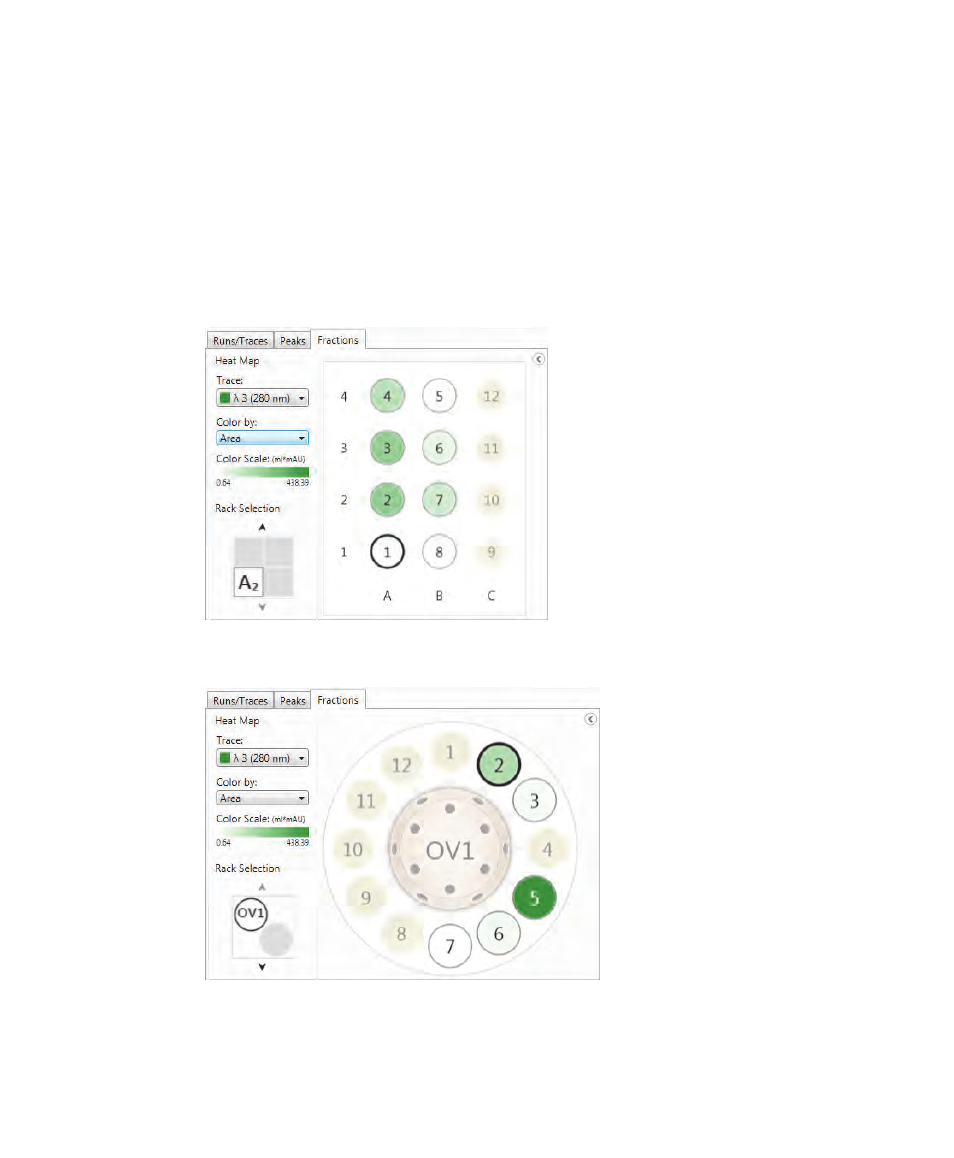

A heat map, indicating the relative amounts or purity within each fraction tube,
appears after peak integration is performed. Items you select in the chromatogram
are highlighted in the rack or outlet valve display and fractions table and vice versa.
Rack Display
Outlet Valve Display
