Bio-Rad ChromLab™ Software User Manual
Page 49

Fluidic Scheme Pane
User Guide
| 47
When pumps are not running, the predicted flow path appears in a lighter color
corresponding to the pump flow path (light blue for the sample pump or light green
for the system pump).

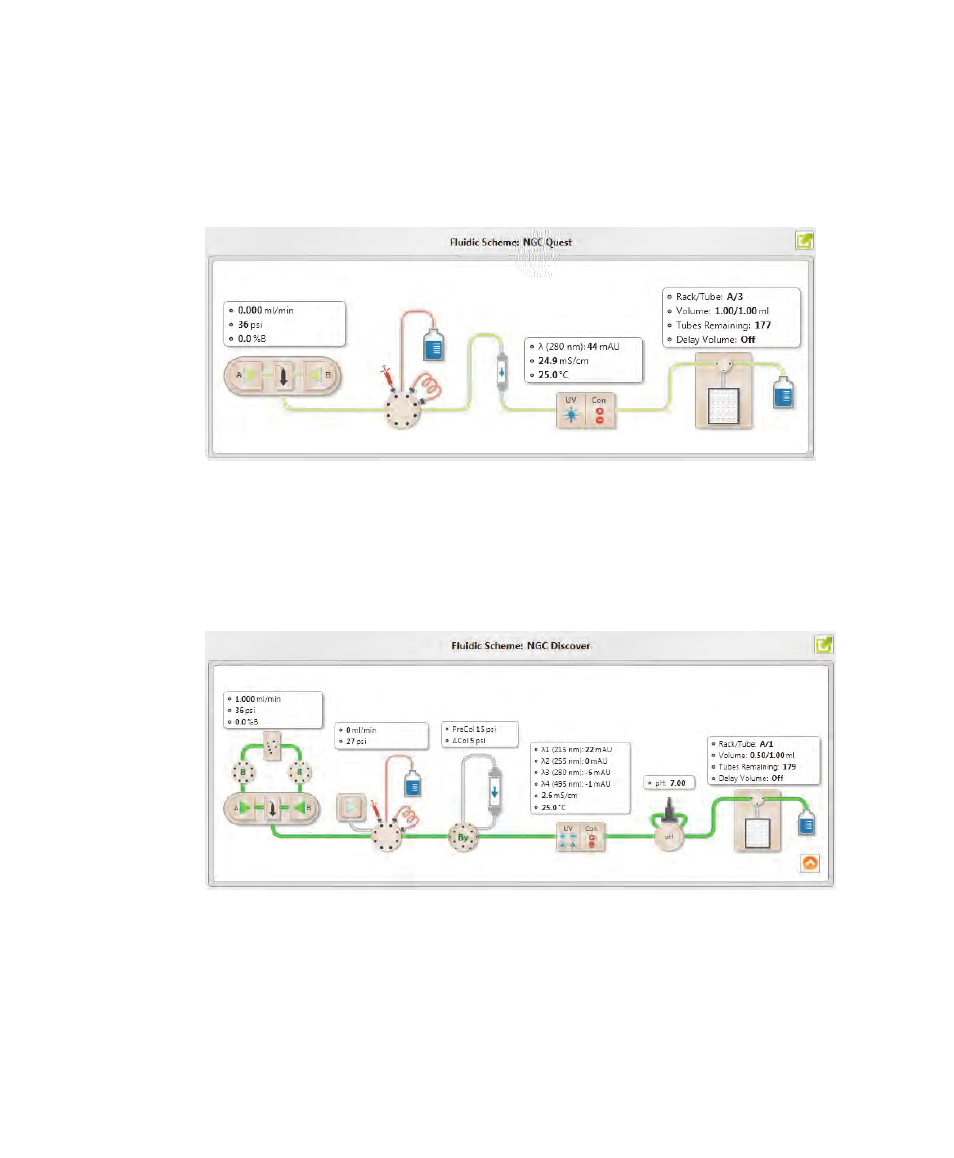

On the NGC Discover system, two flow paths are displayed — one for the system
pump (bright green) and another for the sample pump (light blue). In the following
screen, the gray path from the column switching valve to the column indicates that
the column switching valve is not inline with a pump or injection syringe but is in
bypass.
