Evaluating Fractions
User Guide
| 249

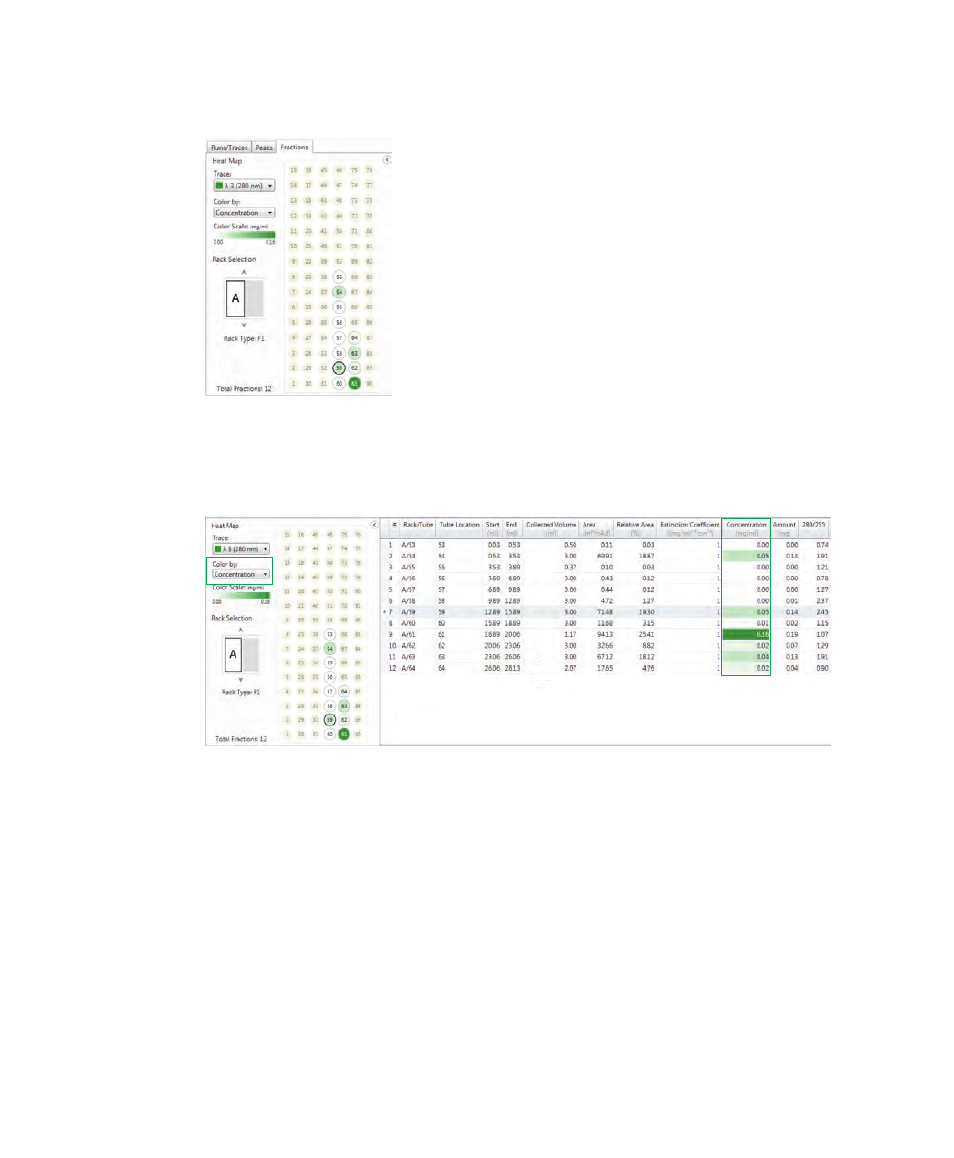

The color scale is based on the column chosen and is relative among all available
fractions of the run. A darker color represents a greater value and tubes or valve
positions that do not contain fractions appear dimmed, for example
Viewing Heat Map Details
To change the displayed trace
Select another UV trace from the dropdown list (available only if the
multi-wavelength UV detector was used in the method).
To change the values to display
Select Area, Concentration, Amount, Molarity, or 280/260 (or 255) from the
Color by dropdown list.
