To clear the selected region on the chromatogram
Close the Region Statistics table.
Annotating the Chromatogram
In the Evaluation window, you can add notes to the chromatogram to associate
observations with data points. The annotation dialog box contains three fields:
Location (in time, volume, or CV), Title, and Description. When an annotation is
saved, the title appears at the specified location on the x-axis. The description
appears in the run report.
To add annotations
1.
Click Annotate on the toolbar and drag the icon to the target location on the

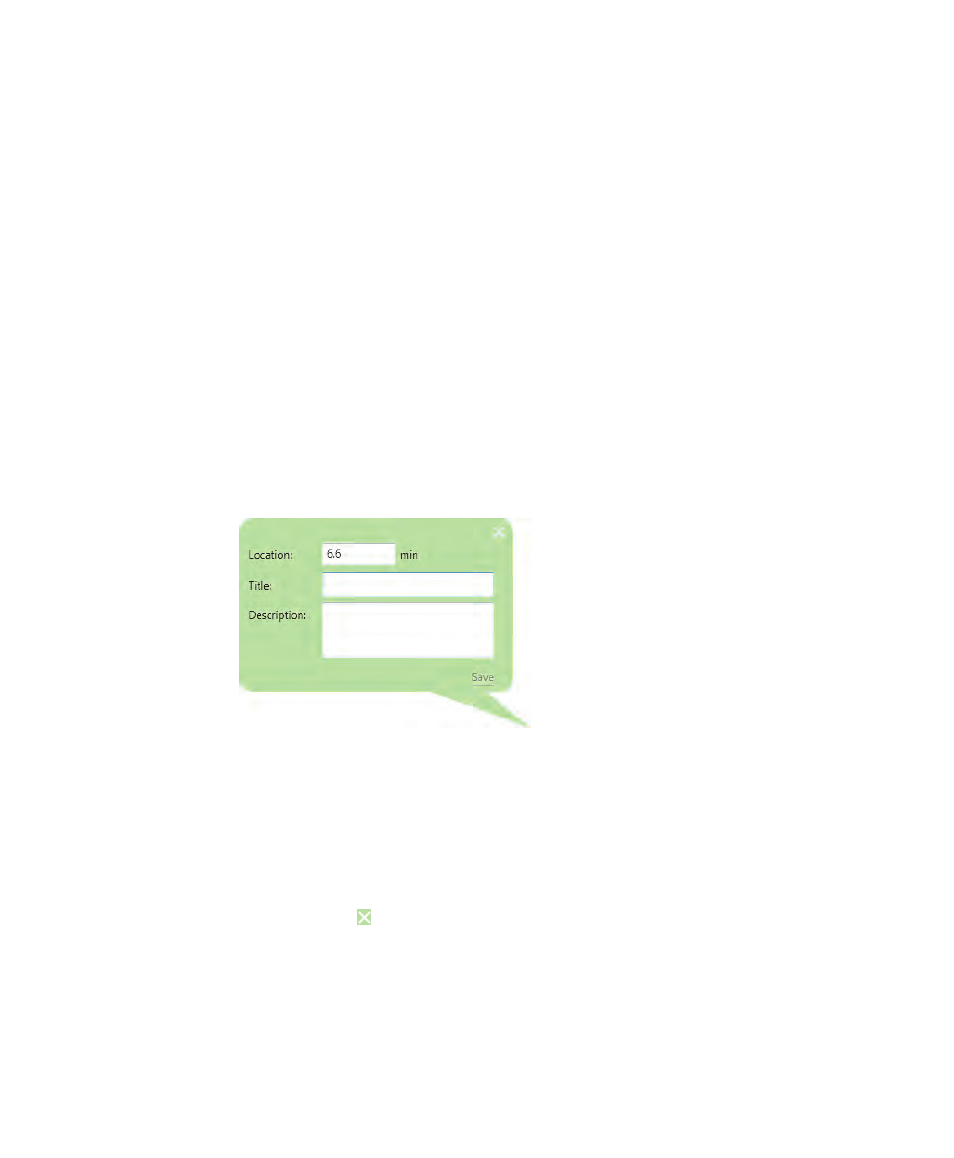

chromatogram. The green annotation dialog box opens with the Location field
filled in.
Tip:
You can edit the Location field.
2.
Type a title for the annotation.
3.
(Optional) Type a description for the annotation.
4.
Click Save to save the annotation.
Note:
Clicking
closes the dialog box without saving the annotation.
