Basic devices in the power range 250 ... 400 kW
Wiring of motor temperature monitoring
5.5
5.5.9
l
5.5−14
EDSVF9383V EN 7.1−04/2012
Wire T1, T2 only if the motor is equipped with a PTC thermistor or thermal
contact (NC contact).
ƒ An "open" cable acts like an antenna and can cause faults on the drive
controller.
{
Danger!
ƒ
All control terminals only have basic insulation (single
isolating distance) after connecting a PTC thermistor or a
thermal contact.
ƒ
Protection against accidental contact in case of a defective
isolating distance is only guaranteed through external
measures, e.g. double insulation.
PE
U
V
W
T1 T2
+UG -UG
PES
PES
PE
M
3~
J>
PES
PES
PES
2.7 k
MONIT-OH8
15 V
3.3 k
7.4 k
T1 T2
9300vec139
9300std328

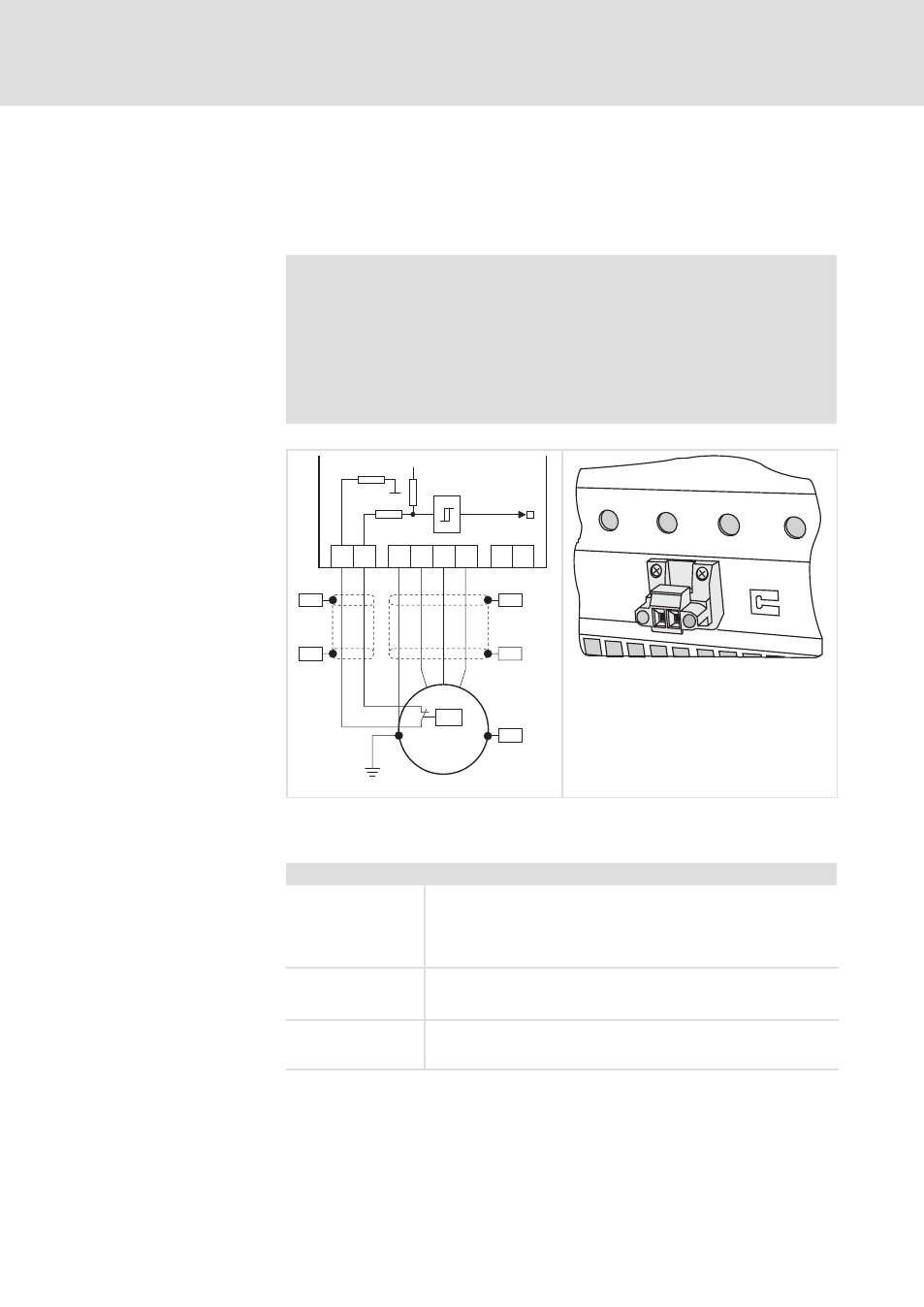

Fig. 5.5−13
Connection of PTC thermistor or thermal contact (NC contact) at T1, T2
Characteristics of the connection for motor temperature monitoring:
Terminals T1, T2
Connection
l
PTC thermistor
– PTC thermistor with defined tripping temperature (acc. to
DIN 44081 and DIN 44082)
l
Thermal contact (NC contact)
– Thermostat as NC contact
Tripping point
l
Fixed (depending on the PTC/thermal contact)
l
PTC: R
J
>
1600
W
l
Configurable as warning or error (TRIP)
Notes
l
Monitoring is not active in the Lenze setting.
l
If you do not use a Lenze motor, we recommend the use of a PTC
thermistor up to 150°C.
Motor with PTC thermistor or
thermal contact (NC contact)
