Basic devices in the power range 110 ... 200 kW
Mains connection 400 V devices
5.4
5.4.2
l
5.4−3 EDSVF9383V EN 7.1−04/2012
5.4.2 Mains connection 400 V devices
(
Stop!
The user is responsible for sufficient strain relief!
BR2 BR1
PE
U V W L1 L2 L3 PE
L1, L2,
L3 25-30 Nm
M8
221-264 lb-in
PE 15-20 Nm
M6
133-176 lb-in
40 mm
9300VEC003

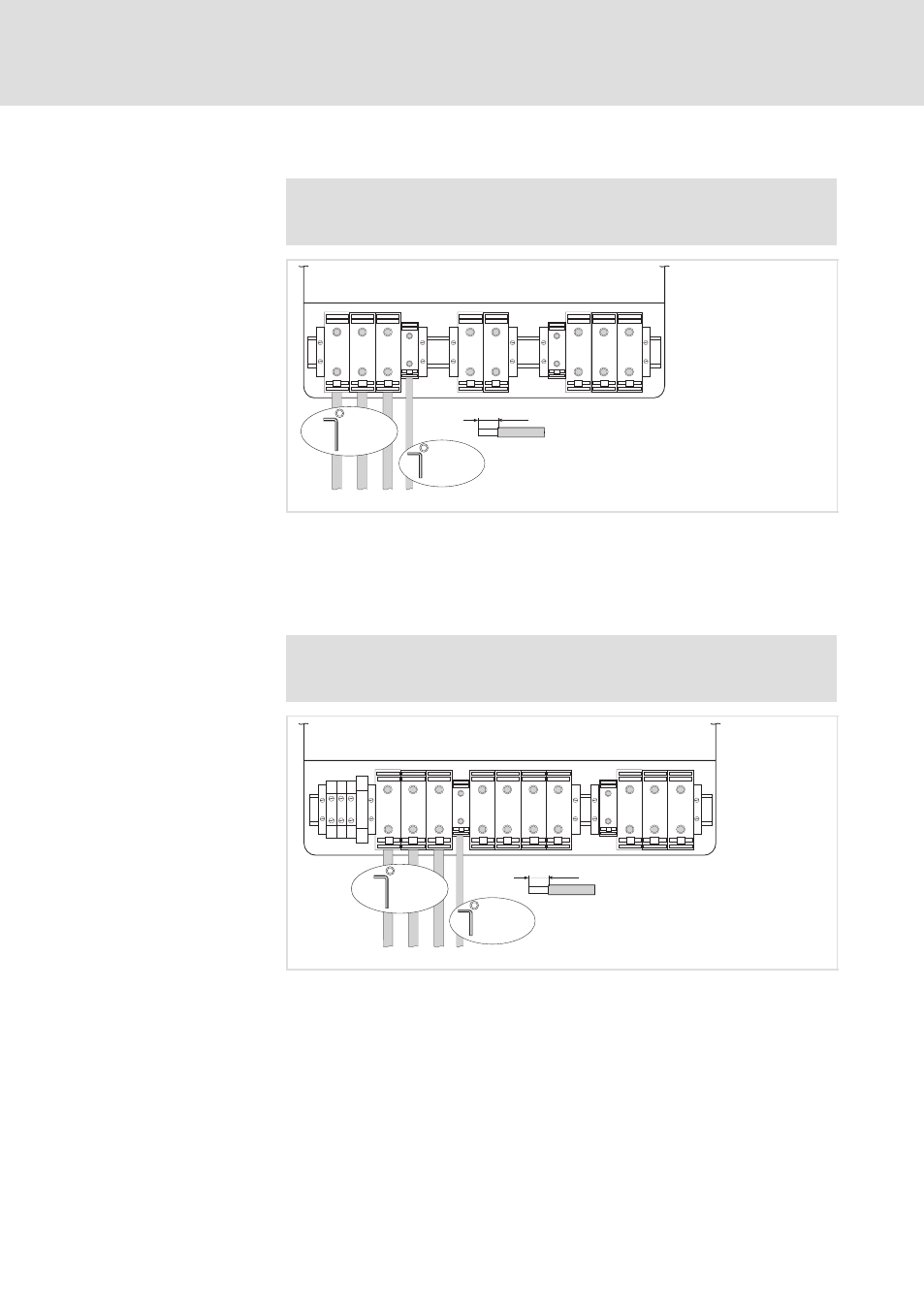

Fig. 5.4−2 Mains connection example
BR1, BR2 Brake resistors can only be operated with variants V060 and
V110
5.4.3 Mains connection 400/500 V devices
(
Stop!
The user is responsible for sufficient strain relief!
BR2 BR1 +UG -UG PE U V W L1
101 102 103
104
L2 L3 PE
L1, L2,
L3 25-30 Nm
M8
221-264 lb-in
PE 15-20 Nm
M6
133-176 lb-in
40 mm
9300VEC032
Fig. 5.4−3 Mains connection example
BR1, BR2 Brake resistors can only be operated with variants V270 and
V300
